This section contains the following diagrams:

Logical Diagram

Conceptual Diagram

Deployment Diagram

On this page

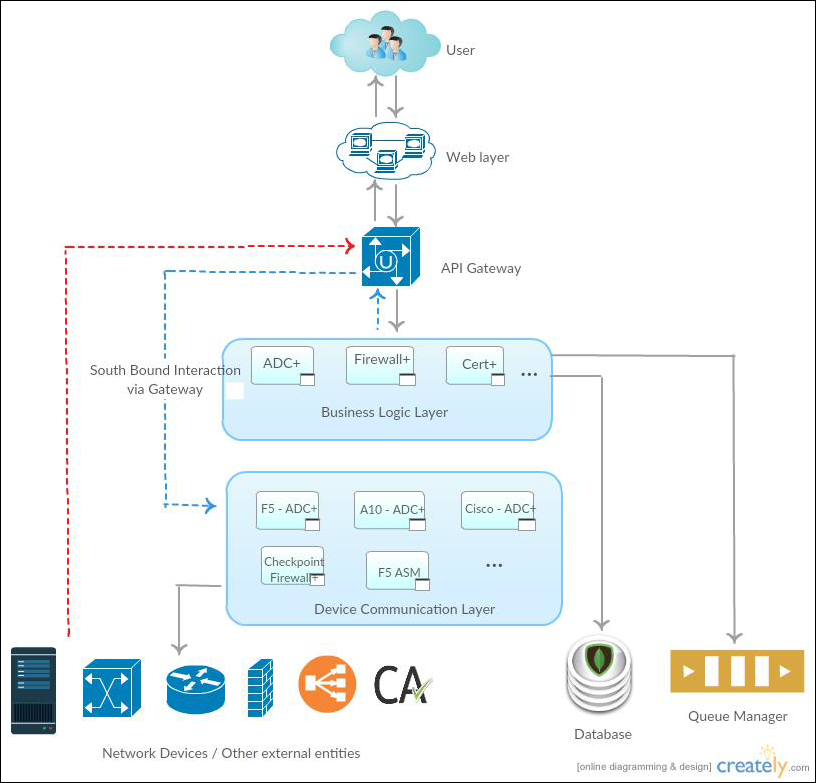

Logical Diagram

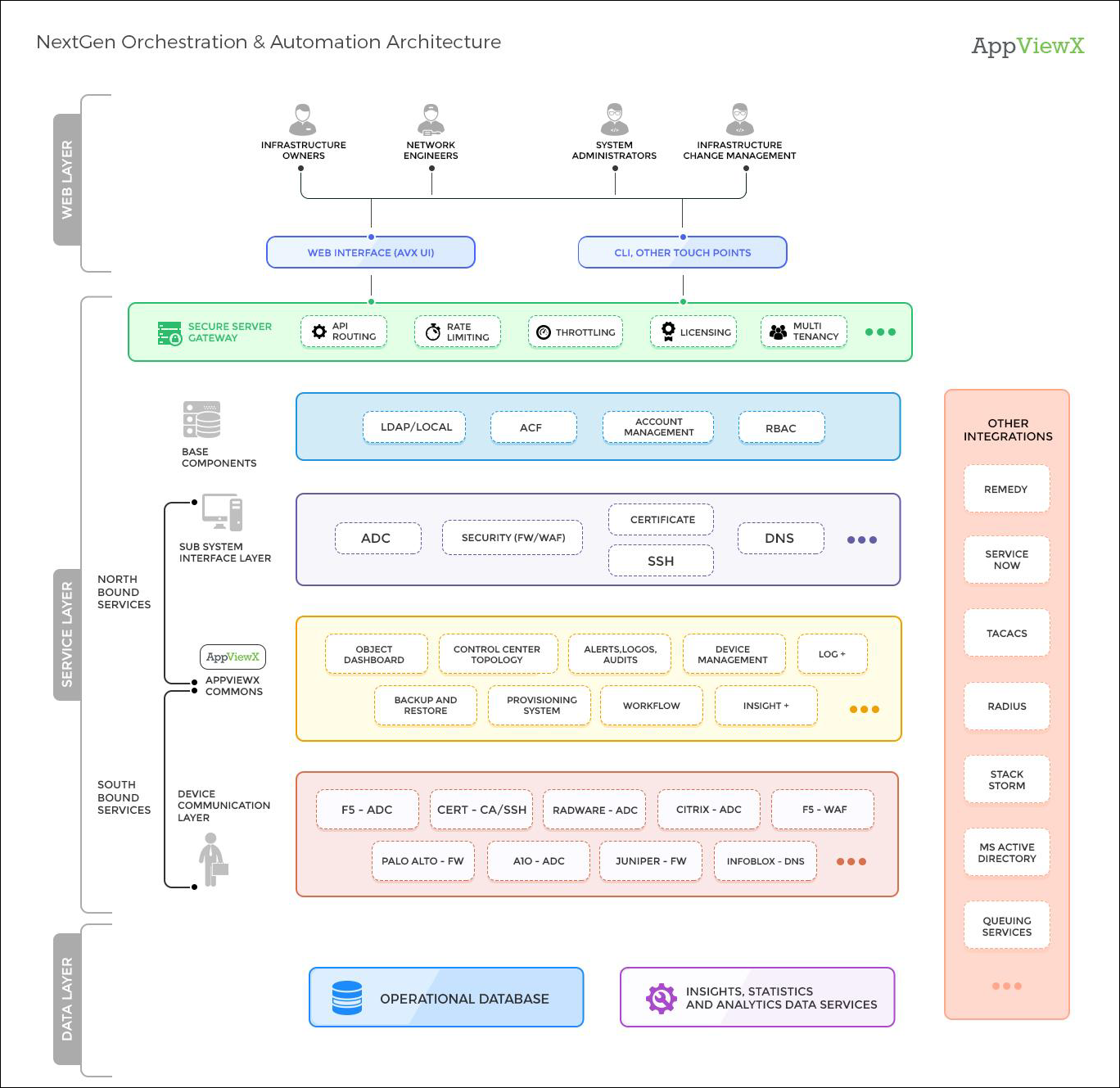

Conceptual Diagram

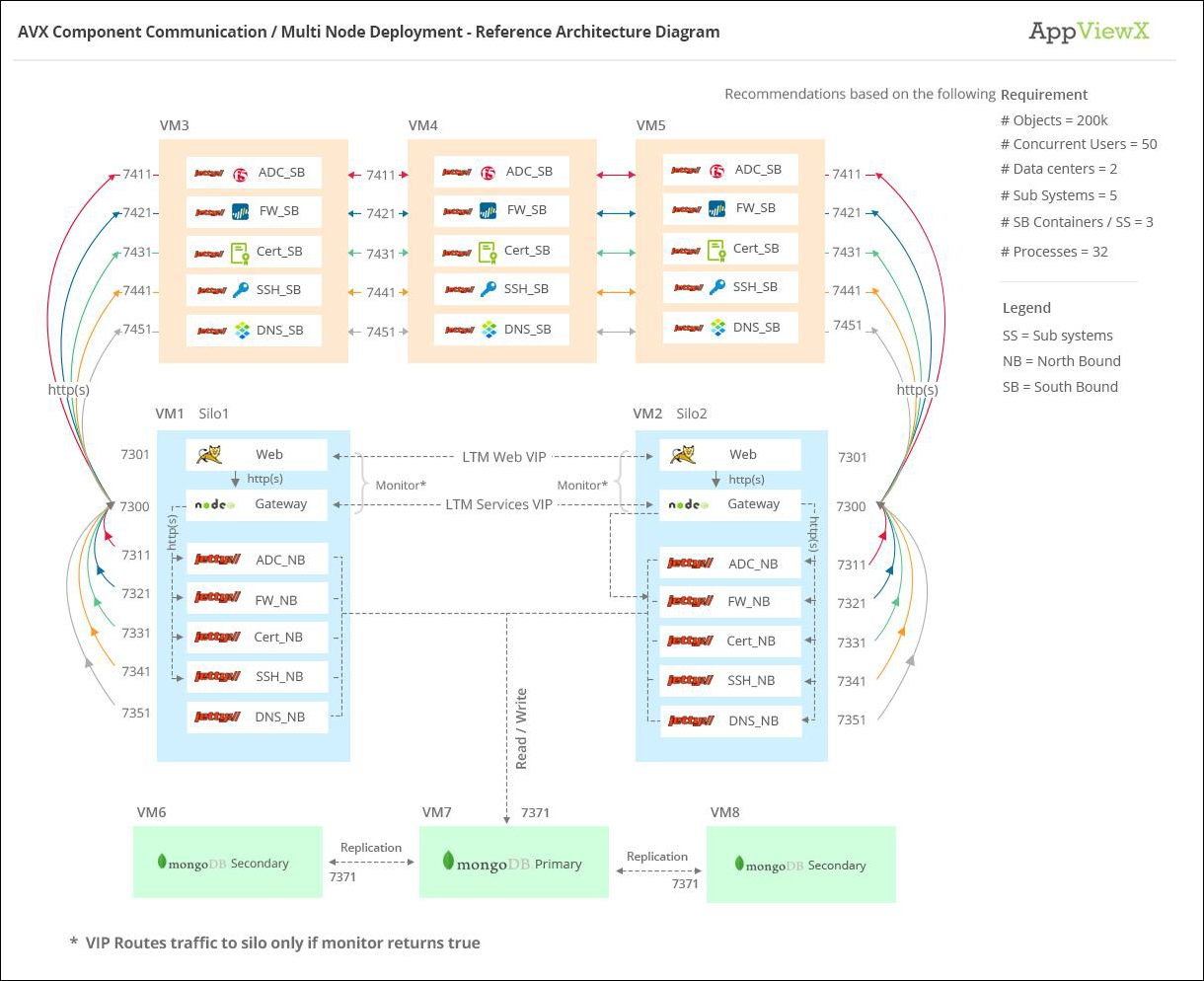

Deployment Diagram
