Overview

Device certificate inventory is where all the management interface certificates will be maintained. Currently, in this inventory, only F5 vendor certificates are shown.

On the Certificate Inventory > Device Certificate page, all the code signing certificates are listed. You can perform the following actions:

  • Export Certificates - To export the device certificate
  • DeleteCertificates - To delete the device certificate
  • DeleteCertificates via Holistic View - To delete the device certificate via holistic view
  • Assign CertificateGroup - To assign a group to the device certificate
  • Unassign CertificateGroup - To Unassign a group from the device certificate
  • Add/Modify Comments - To add/modify comments to the device certificate
  • Update Certificate Attribute - To update certificate attributes for the device certificate.

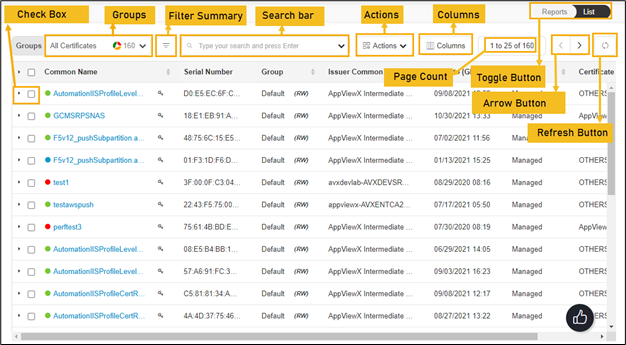

The following table describes the options available on the device certificate inventory page:

Options Description
Check Box Select the check box of the certificate that needs to be renewed.
Groups

Displays the group of certificates that needs to be displayed as selected.
Filter Summary

Displays number of certificates in which state.
Search Bar (Basic/Advanced)

Searches for the given keyword in the field and results in the feature that matches the search keyword.

Basic Search - Searches in the given keyword in the field and results from the feature that matches the search keyword.

Advanced Search - The advanced search is used to perform quick searches of the data. If a more specific needs to be composed, the advanced search bar is a readily available option. To activate the advanced search bar, click the Chevron icon in the search field.

The advanced search page appears.



The following table describes the options available in the Advanced Search feature:

Options Description
Condition Displays the type of the desired search on the page. The possible options are,
  • AND
  • OR.
Certificate Authority Allows you to select the desired CA from the dropdown list.
Status Allows you to select the desired status certificate. The possible options are,
  • Manage
  • Monitor
  • New certificate.
Discovery Source Enter the source of the discovery.
Common Name Enter the common name of the certificate.
Serial Number Enter the serial number of the certificate.
Issuer Common Name Enter the name of the certificate issuer.
Subject Organization Enter the subject of the organization.
Subject Organization Unit Enter the subject of the organization’s unit.
Locality Enter the specific locality.
Subject State State Enter the state of the certificate’s subject.
Subject Country Country of the subject.
Type Type of the certificate.
Wildcard certificate Enter the wildcard certificates.
Extended Key Usage Allows you to select the EKU from the dropdown list.
Search

Click the Search button to get the results from the search.
Actions

Displays the list of actions. The possible actions are,

  • Export Certificates
  • Download Certificates
  • Delete
  • Change Status
  • Assign Group
  • Unassign Group
  • Add/Modify Comments
  • Certificate Attributes
  • Renew Certificate
  • Revoke Certificate
  • CA Switch
  • Revocation Check.
Columns

Allows you to select the number of desired columns to show on the certificate page.



  • Search bar - Used to search the available options.
  • Click Select all check box if all parameters required to be displayed.
  • Click the refresh icon if you want to reset the previous columns.
  • Click Save.
Page Count Displays the number of certificates listed on the page.
Toggle Button

Displays the desired dashboard report on the page. The available options are,

  • Reports
  • List.
Arrow Button Allows you to move next page.
Refresh Button Allow you to refresh the current page.
