Architecture

AppViewX is designed based on microservice architecture, making it easier to move to containerized workloads and the containers being orchestrated using Kubernetes. The following diagram depicts the deployment architecture:

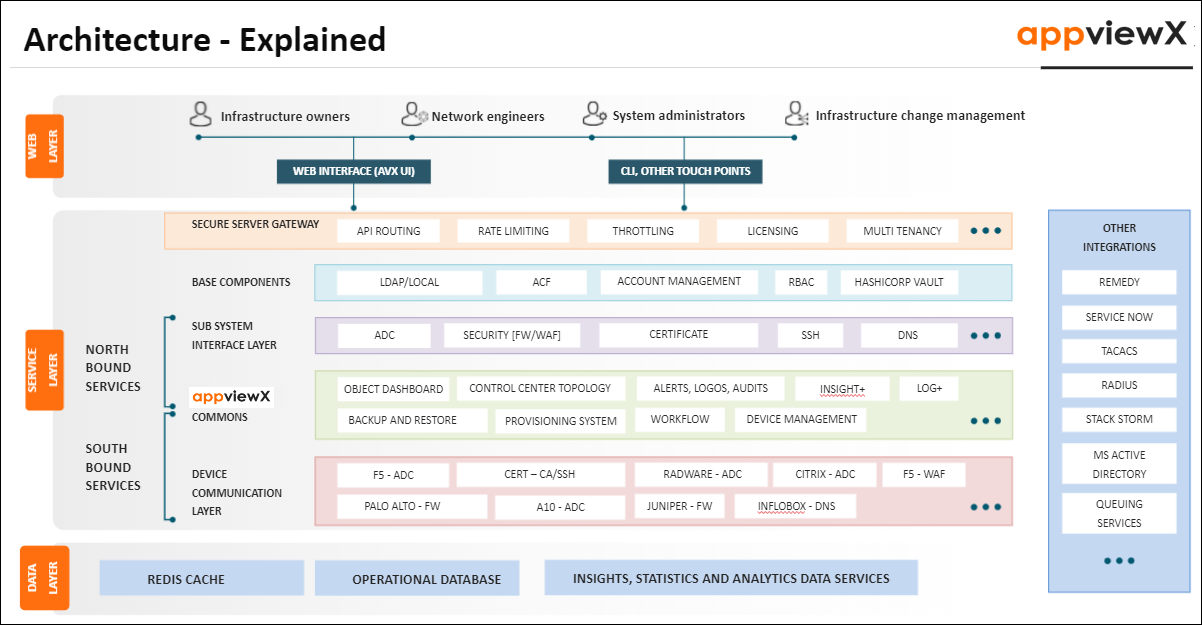

Figure 1 Deployment Architecture

In the diagram:

• Presentation/ Web Layer - houses the AppViewX user interface related files and interacts with the service layer

• Service Layer - contains the Northbound and Southbound services that can be further classified into:

  • Business Layer:

    • Houses AppViewX specific business logic

    • Interacts with the Data layer for persisting the input data

  • Device Communication Layer:

    • Low code

    • Stateless layer

    • Routes communication to the respective vendor through APIs or SSH

    • Houses vendor specific business logic

• Data Layer:

  • Houses data persistence and retrieval logic

  • Redis caching is available
