Create a Syslog Alert

AppViewX subscribes to all device-level logs, where it acts as a syslog listener. The logs of any

devices added in AppViewX can be viewed as syslog by navigating to Logging->Syslog. However, devices tend to generate huge amounts of data, a Syslog alert is a convenient way to get notified about a specific event that is of importance to you. It also allows for a closed loop remediation by associating workflows.

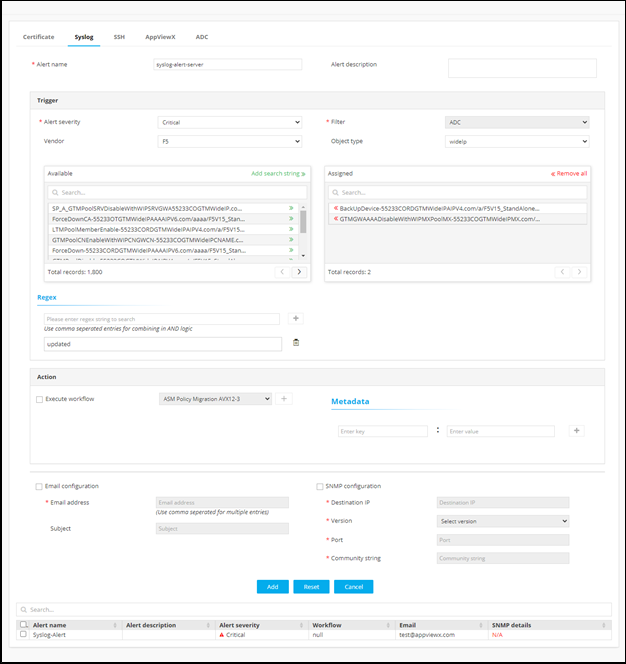

To create a syslog alert,

  1. Go to Menu > ADC+ > ALERTS & LOGS > Alerts.
  2. Click on (Settings) icon, and then Syslog tab.
  3. Provide an Alert Name and Message.
  4. Mention the Severity, it could be one or multiple.
  5. Configure the critical Device/Applications that need to be monitored.

  6. Add the Pattern/Regex that needs to be monitored on the Syslog received. Multiple strings can be provided with comma-separated, which will be considered as Boolean AND operator.
  7. Following are some of the alerts that can be configured,

    • Sample syslog - <133>Sep 19 04:24:38 bigip-40-152 notice mcpd[6046]: 01070417:5: AUDIT - user admin - transaction #84153993-4 - object 0 - create { virtual_server_profile { virtual_server_profile_vs_name \"/Common/testVs\" virtual_server_profile_profile_name \"/Common/tcp\" virtual_server_profile_profile_type 5 virtual_server_profile_profile_context 0 } } [Status=Command OK]\n

    • For instance, if the Syslog alert is configured for the object and the Regex pattern is given as “create” Whenever an object is created and a Syslog is received for that object as above. An alert will be raised for the same and notified to the user.

  8. You can also pass certain metadata from the alert to the workflow. In the Metadata section, enter a key and its associated value in the respective fields. This is the additional information that will be used by the workflow that is going to be associated with.
  9. Associate any out of the box or custom workflow that needs to be executed on the occurrence of a configured Syslog event.
  10. Configure multiple Alerts as needed and Add it to the Grid. The configured Alerts could be modified or deleted anytime by selecting the Alert from the grid.
