Delete F5 GTM WideIP

This workflow deletes an existing WideIP. On deleting a WideIP, associated Pool, Pool members, Topology, Monitor, and Servers with the WideIP are deleted if they are not associated with any other WideIP. Also, it deletes the associated CNAME record in the DNS – Infoblox/Bluecat.

To run this workflow,

  1. Go to Menu > Request > View/Run.

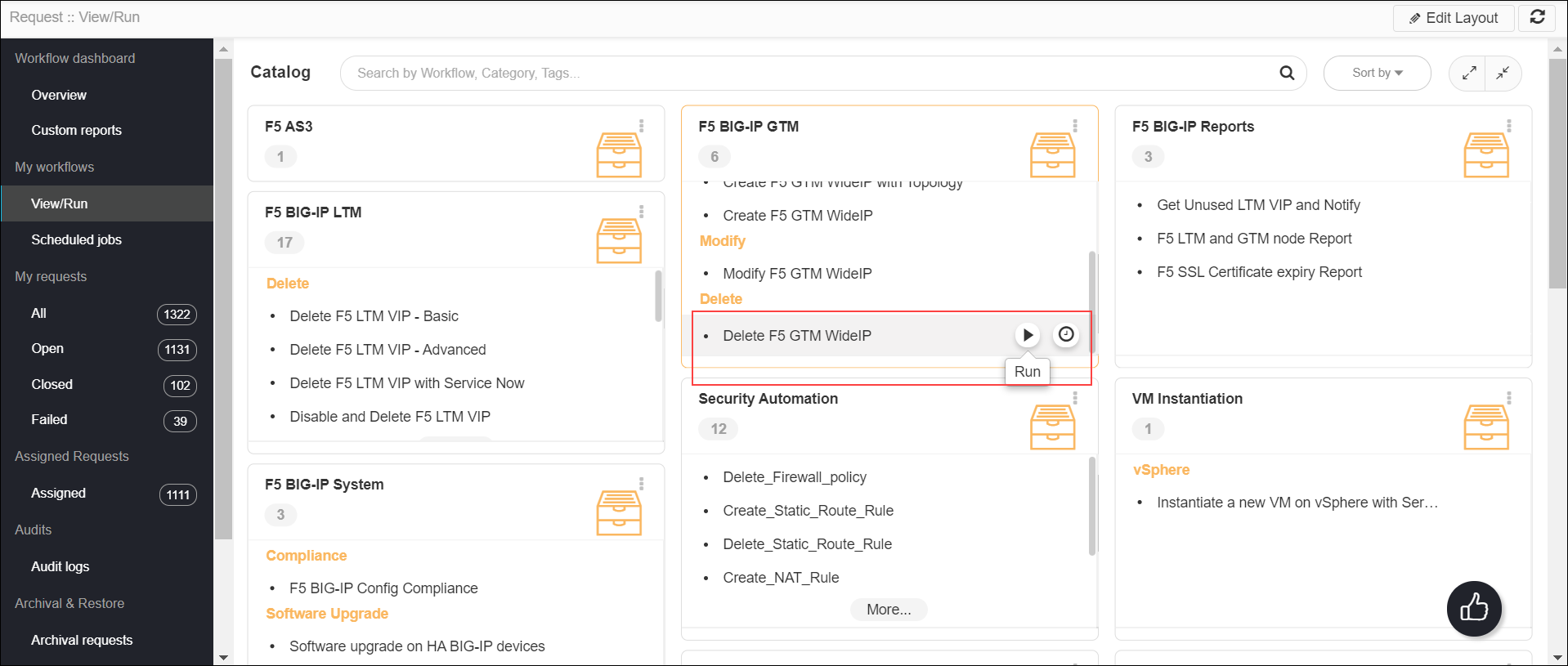

    The Workflow Catalog page appears.
  2. In the Workflow Catalog page, hover over the Delete F5 GTM WideIP workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

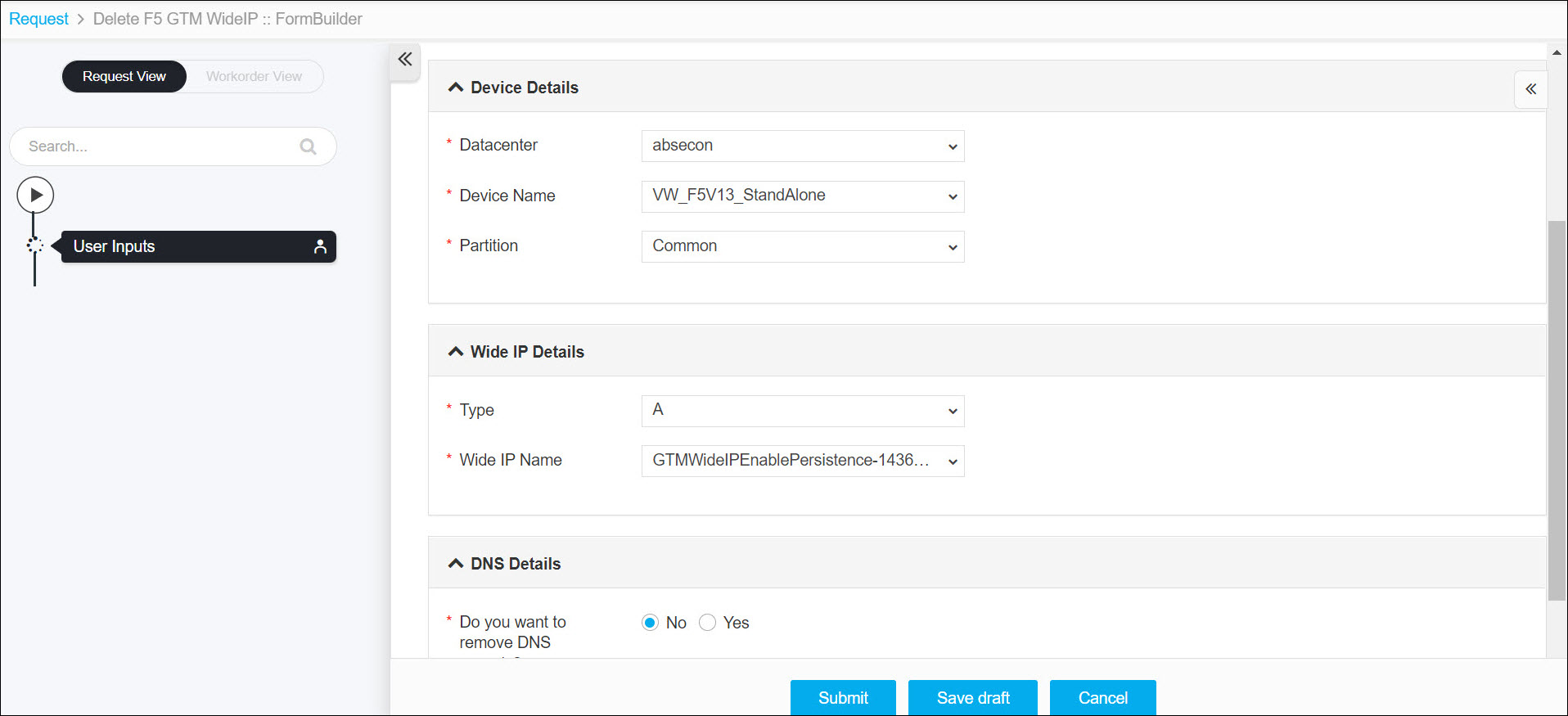

    The Form Input page opens:

  4. Select the necessary details of the device, WIP, and DNS to delete.
  5. Click the Submit button.
    The validation starts automatically and reaches the Review stage.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.

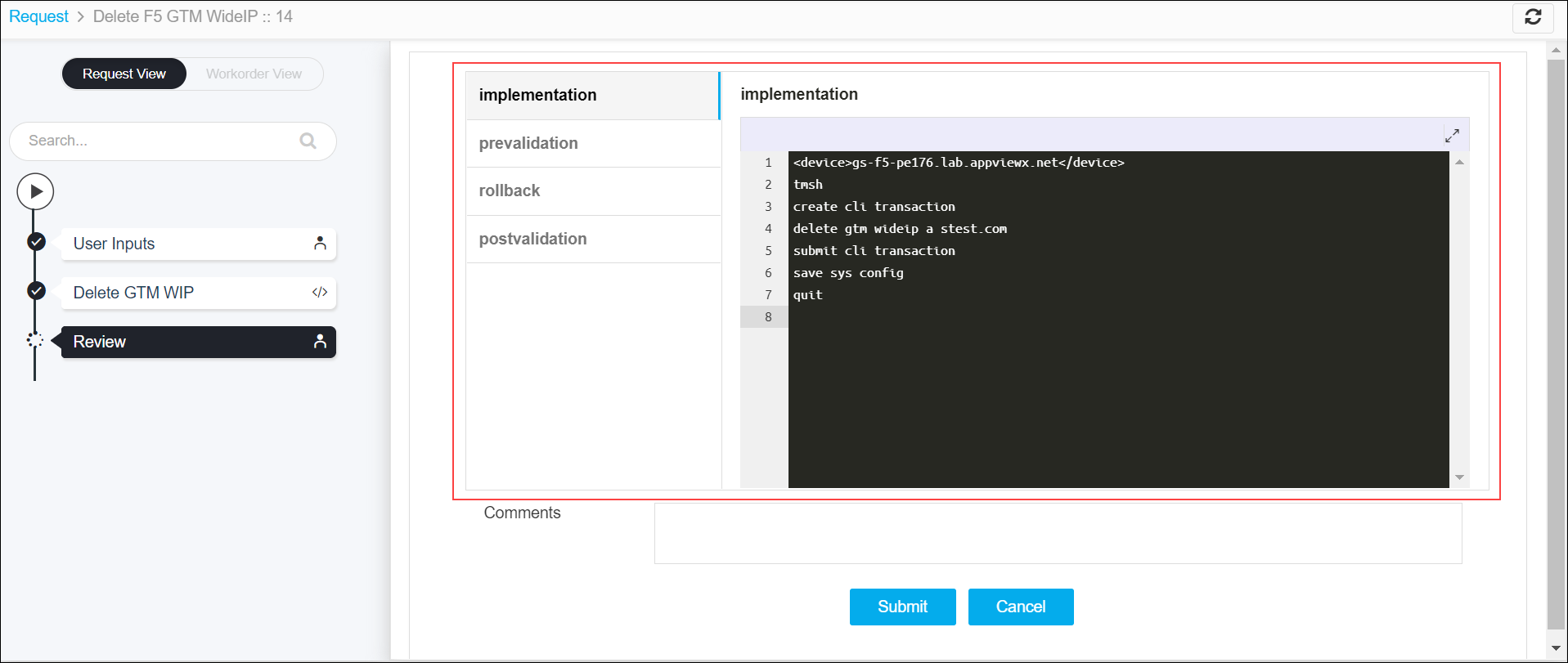

  6. Review the input data under the implementation, rollback, and postvalidation tabs:

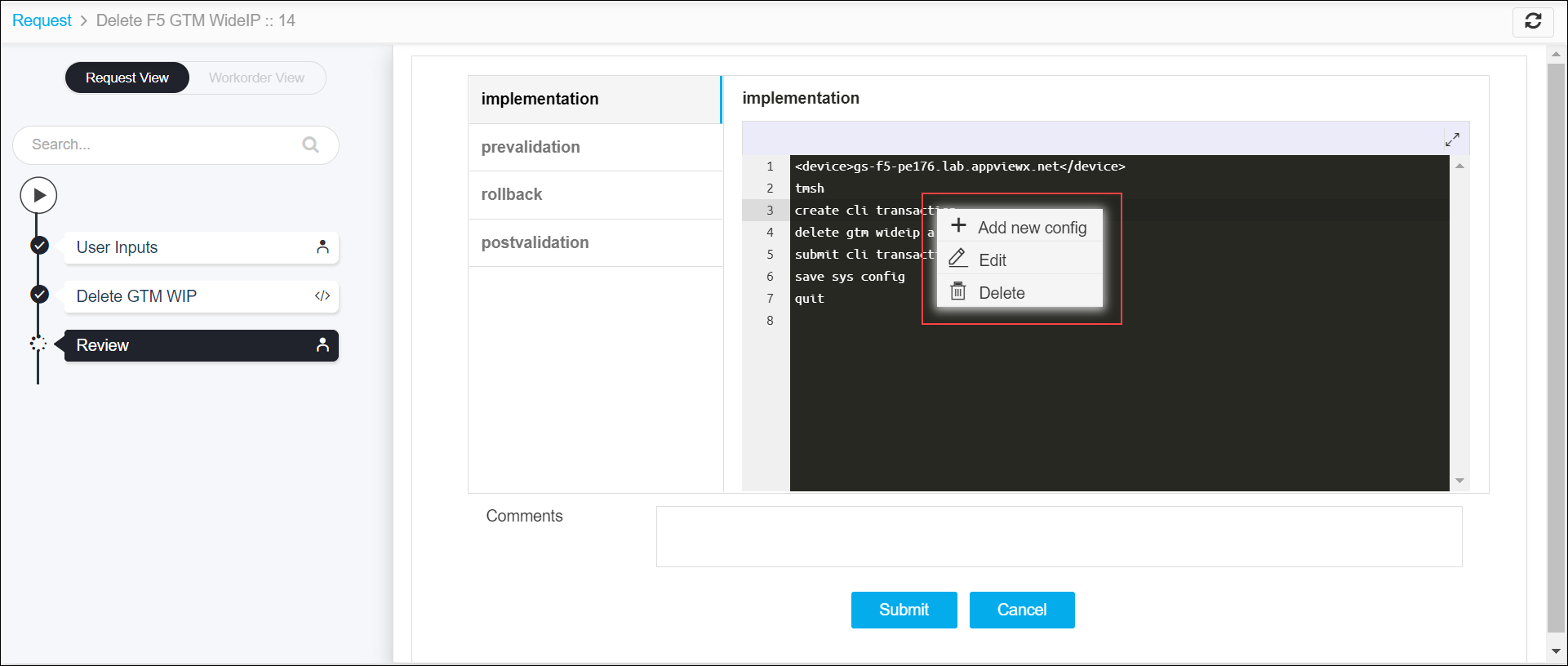

  7. (Optional) If you need to update any data at this stage, you can do so by clicking the right side of the mouse on the data and selecting the desired option.
  8. After the review, click the Submit button.
    The Confirmation popup opens.
    Note: To stop running the workflow creation, click Cancel.
  9. Click Ok to continue the workflow creation.
    It takes a while to complete the request.

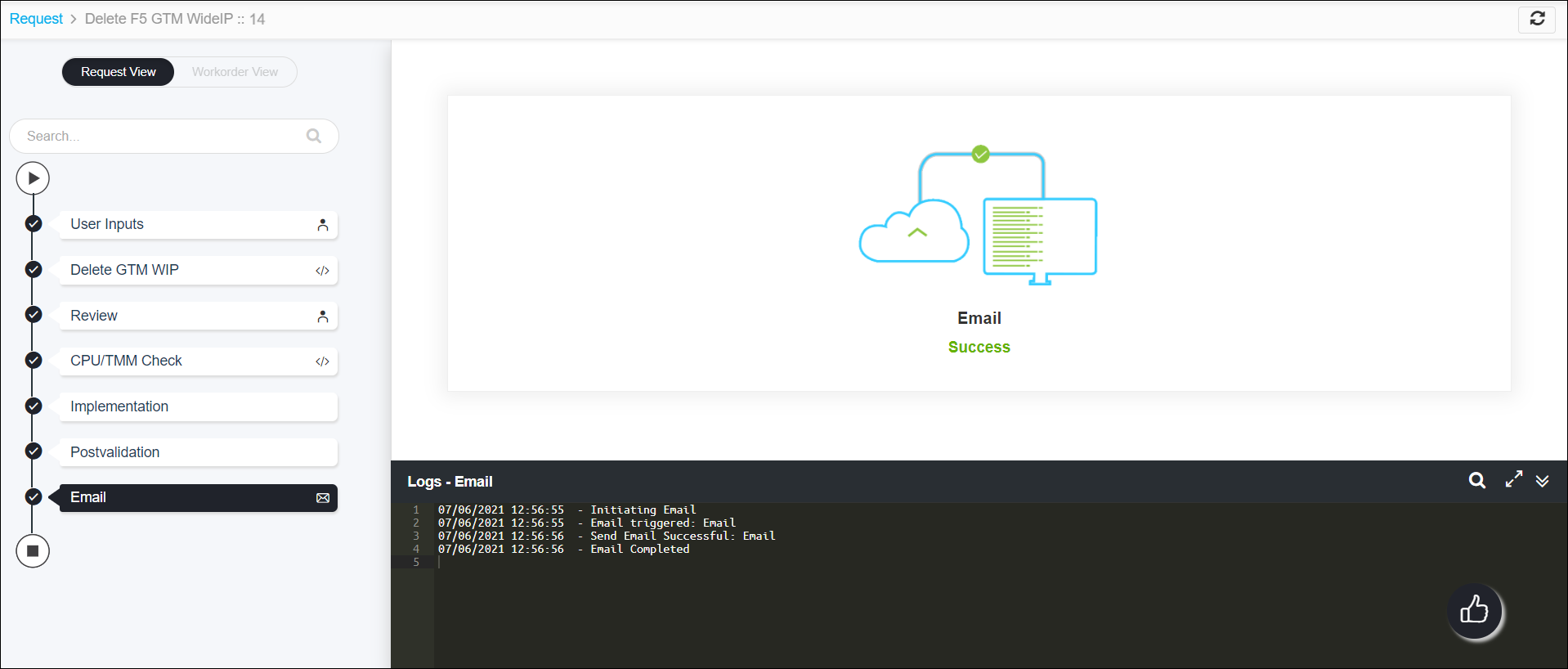

  10. The workflow is created and the email is triggered to the configured email IDs.
    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
