Disable Unused F5 LTM VIP

This workflow disables VIPs that are unused for ‘n’ number of days.

To run this workflow,

  1. Go to Menu > Request > View/Run.

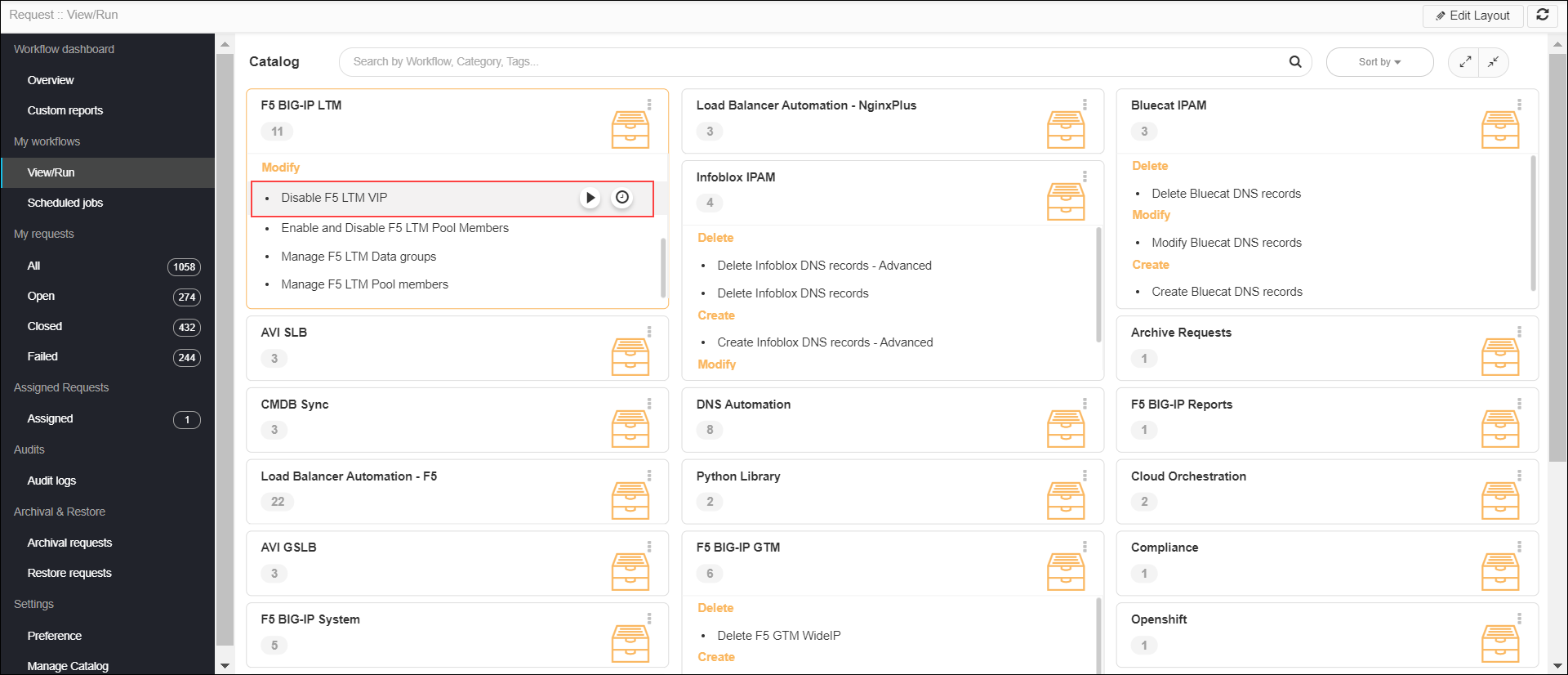

    The Workflow Catalog page appears.
  2. In the Workflow Catalog page, hover over the Disable F5 LTM VIP workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

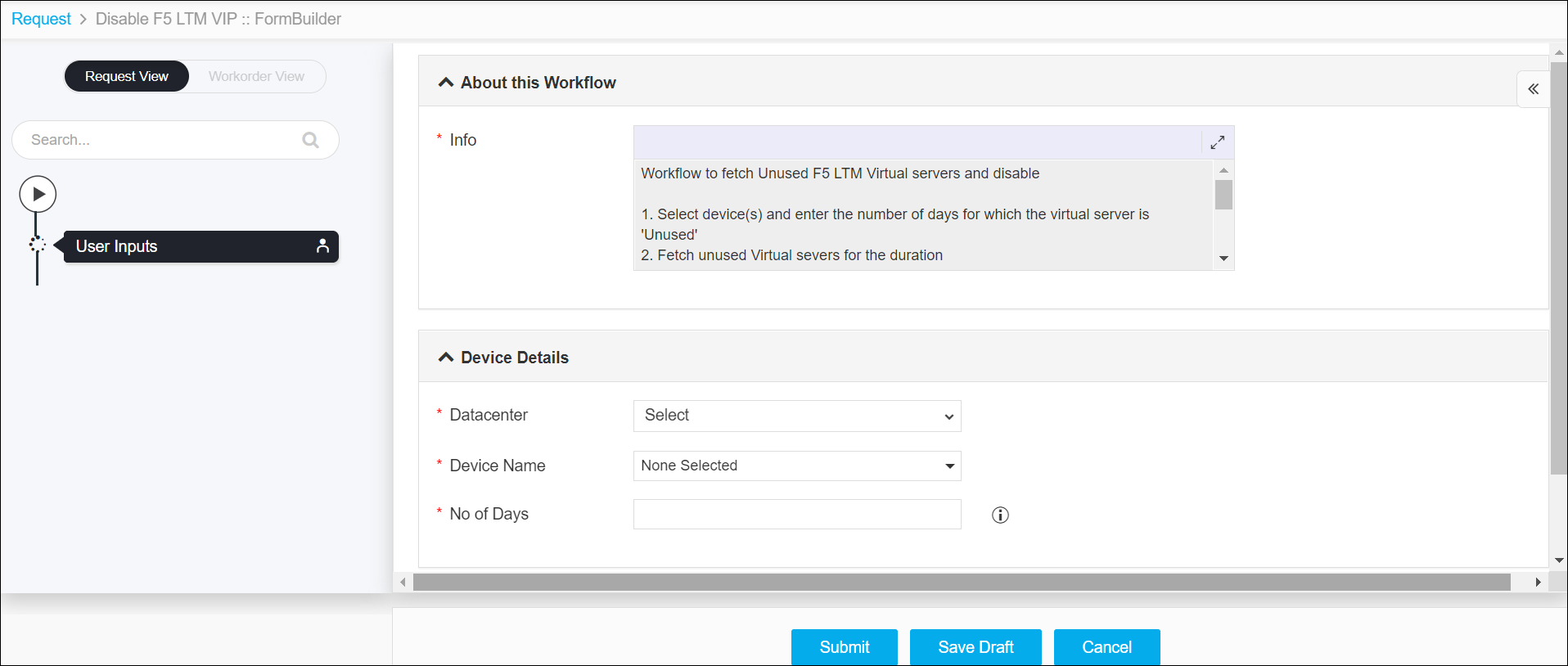

    The Form Input page opens:

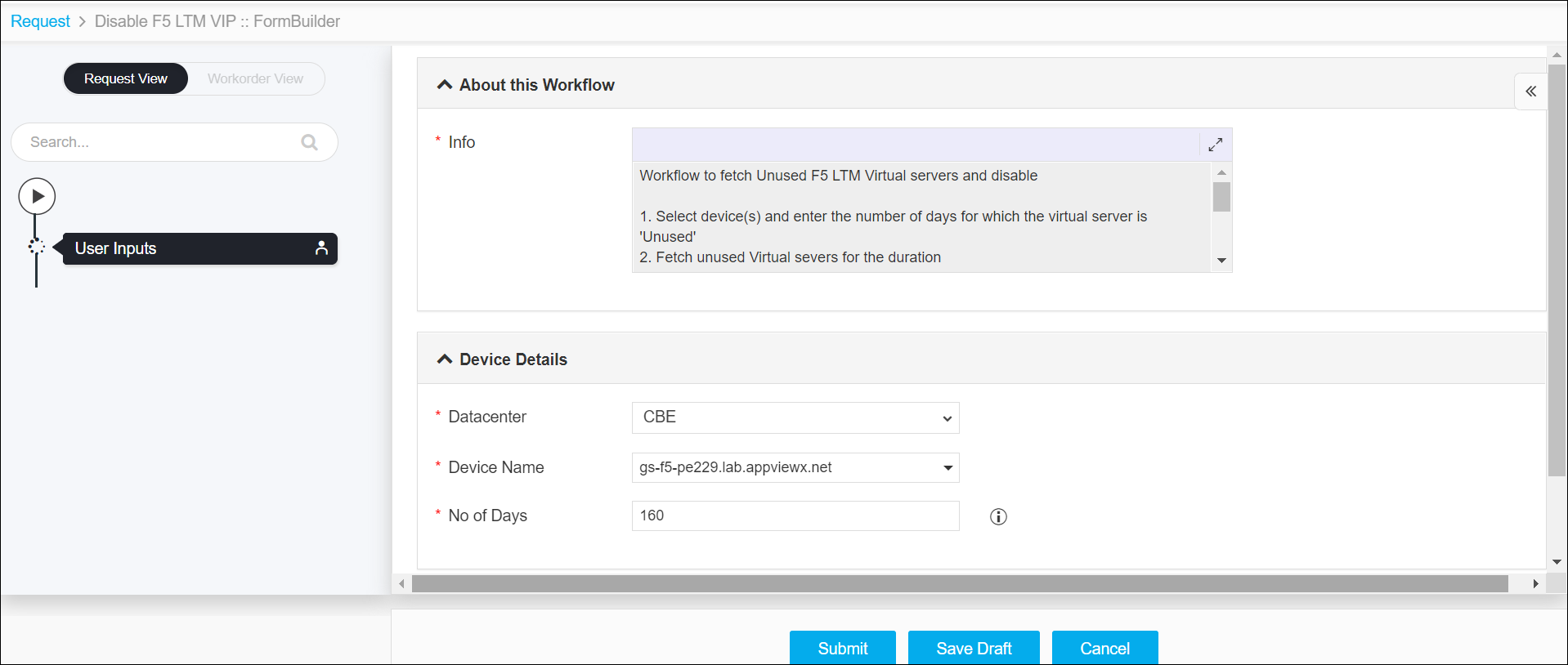

  4. Enter or select the field information in the Form Input.

  5. The following table provides the field description for the Form Input:
    Field Description
    *Datacenter Displays the list of datacenters of the devices, which are created in the Device Inventory. Select the datacenter of a device from the drop-down option for which this request is to be created. For the devices which are created without a datacenter in the Device Inventory, select the datacenter as None.
    *Device Name Displays the list of devices associated with the selected datacenter. If the datacenter is selected as None, the devices that are created without datacenter details are listed. Select the desired devices from the drop-down option.
    Note: Selecting multiple devices is possible.
    No of Days Enter the no. of days to disable the virtual server.
  6. Click the Submit button.
    The Confirmation popup opens.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.

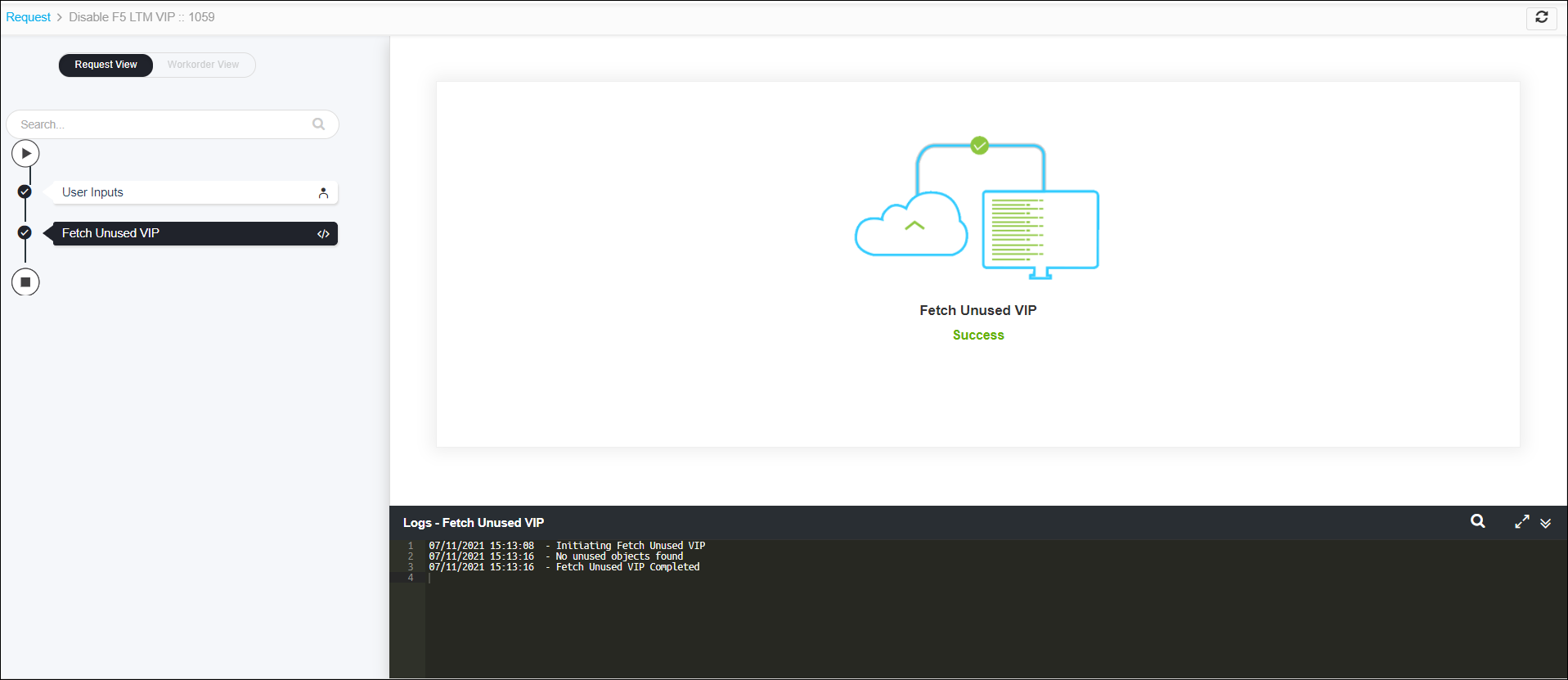

  7. The workflow is successfully completed.
    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
