Validating EJBCA

Once the EJBCA settings are added, validation needs to be done to check whether the connection between AppViewX and EJBCA is properly configured.

1. Log in to the AppViewX application with valid credentials.

2. Click on the menu button.

   The left navigation pane appears.

3. Click CERT+.

   The CERT+ left navigation pane appears.

4. Expand ADMINISTRATION.

5. Click Certificate Authority, and then select EJBCA.

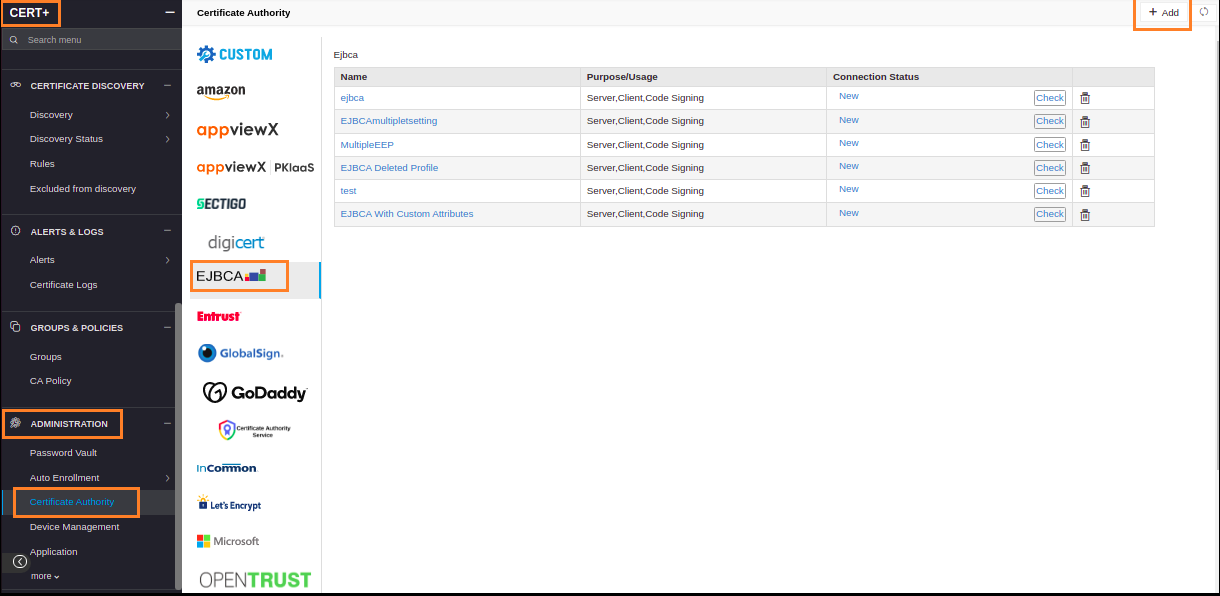

   The Certificate Authority home page appears.



6. Click Check to validate the CA setting that has been created.

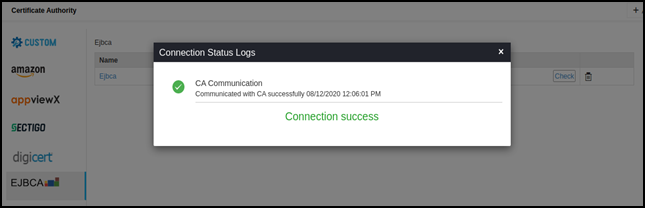

   The CA communication will be validated and the Connection Status will be shown as either Success or Failure.
