Validating Entrust MPKI Connection

Once the Entrust settings are added, validation needs to be done to check whether the connection between AppViewX and Entrust is properly configured.

To validate the Entrust MPKI connection,

1. Log in to the AppViewX application with valid credentials.

2. Click the menu button located in the upper left corner of the screen.

   The left navigation pane appears.

3. Click CERT+ > ADMINISTRATION > Certificate Authority.

   The Certificate Authority home page appears.

4. Click Entrust MPKI from the left pane of the page.

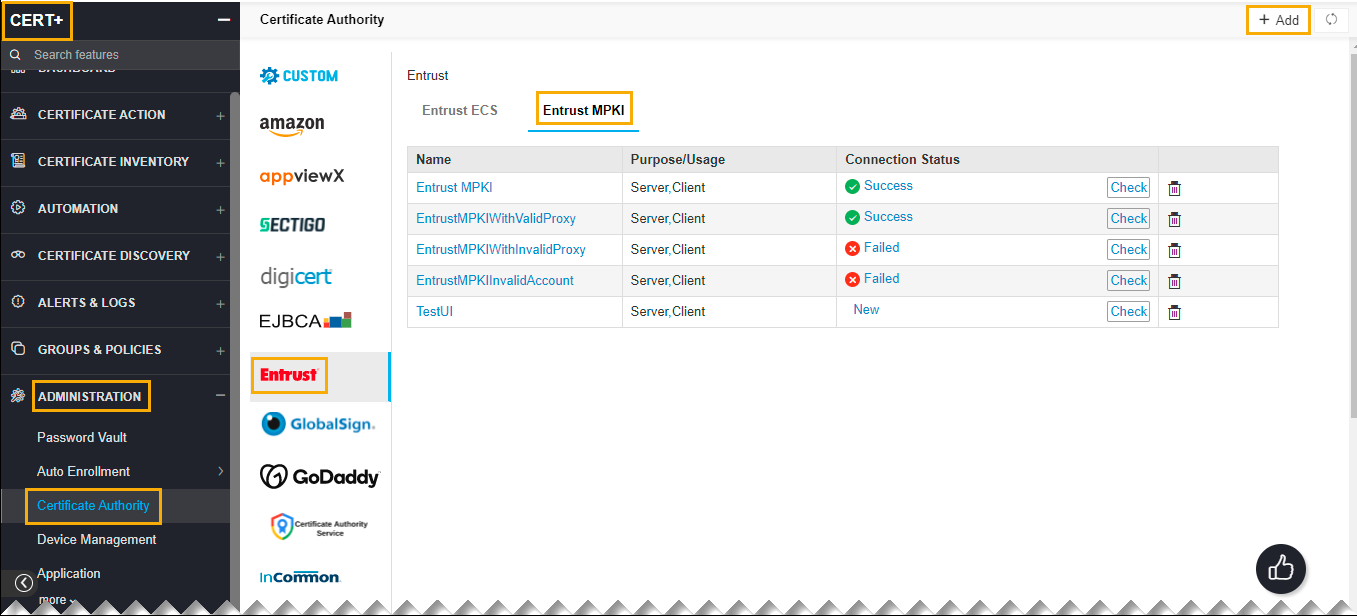

   The Entrust MPKI CA home page appears.



5. Click Check to validate the CA setting that has been created.

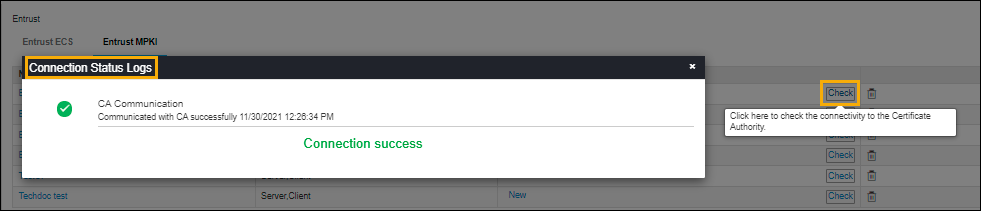

   The CA communication will be validated and the Connection Status will be shown as either Success or Failure.
