Configuring GlobalSign SSL

  1. Log in to AppViewX application with valid credentials.

  2. Click the menu button located in the upper left corner of the screen.

    The left navigation pane appears.

  3. Click CERT+.

    The CERT+ left navigation pane appears.

  4. Expand ADMINISTRATION.

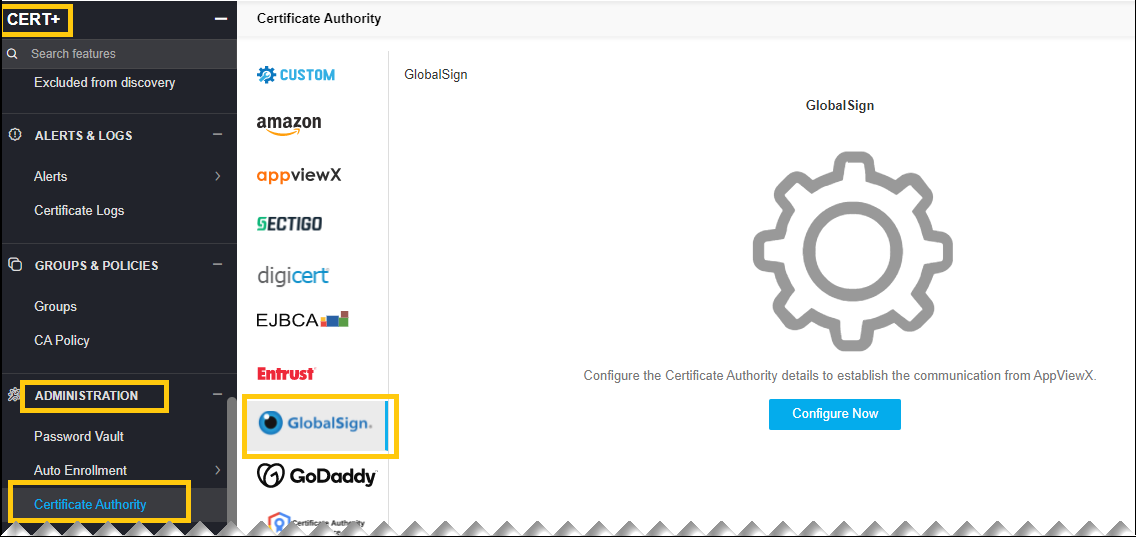

  5. Click Certificate Authority, and then select GlobalSign.

    The Certificate Authority home page appears.

  6. Click the Configure Now icon.

    The GlobalSign configuration page appears.

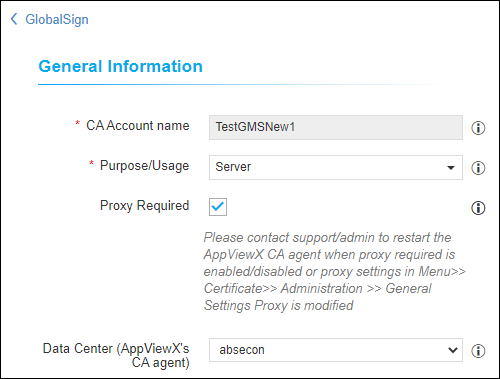

  7. Update the following details in the General Information section as described in the table.

    Name Description Validation
    *CA Account name

    A unique name to identify the CA setting.

    No special characters other than ‘.’, ‘-’,’_’ are allowed. The name should not start with special characters.
    *Purpose/Usage

    Certificate Type for which CLM actions will be enabled. For example, Server and Client.

    NA
    Proxy Required

    Enable this field if the CA communication needs to happen via Proxy. The proxy details configured in general settings will be used for communication.

    NA
    Data Center (AppViewX's CA agent)

    Select the data center through which the CA communication needs to happen.

    		 NA
    Note: The asterisk (*) symbol indicates a mandatory field.

  8. Update the following details in the CA Configuration section as described in the table.

    Options Description
    *SSL URL

    Base URL of the SSL API.
    *User Name

    Provide a username of the GCC to communicate with the CA.
    *Password

    Provide a password for the GCC to communicate with the CA.
    Note: The asterisk (*) symbol indicates a mandatory field.

  9. Click Save.
