Configuring Trustwave CA

To configure the Trustwave CA,

1. Log in to AppViewX application with valid credentials.

2. Click the menu button located in the upper left corner of the screen.

   The left navigation pane appears.

3. Click CERT+.

   The CERT+ left navigation pane appears.

4. Expand ADMINISTRATION.

5. Click Certificate Authority, and then select Trustwave.

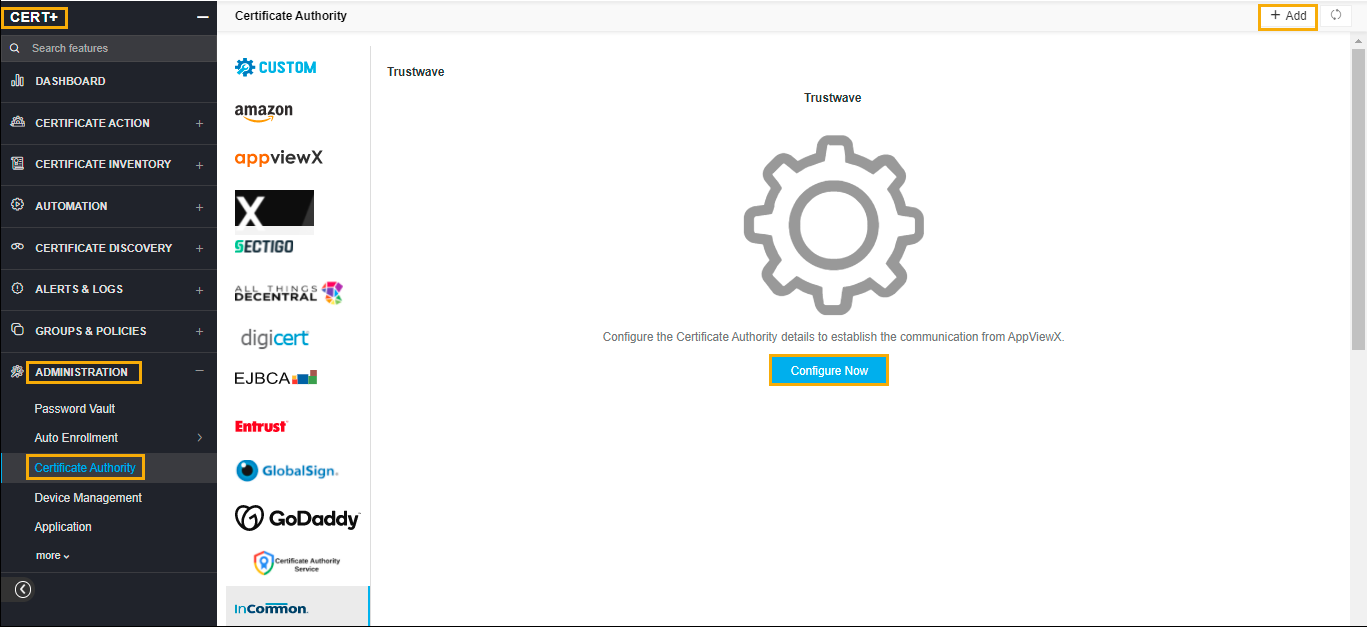

   The Certificate Authority home page appears.


6. Select Add or Configure Now.

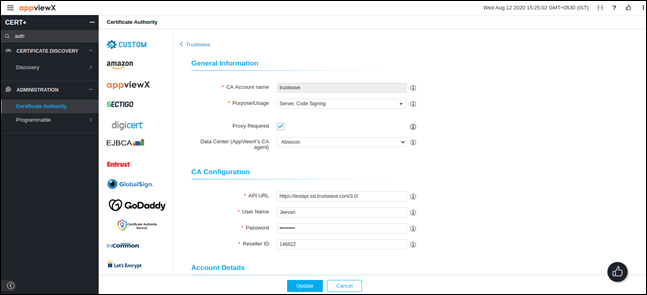

7. Configure the General Information details as follows:
   1. CA Account name - Provide an account name for the CA setting.
   2. Purpose/Usage - Choose the certificate categories that will be managed by this setting. Possible certificate categories could be:
      1. Server
      2. Code Signing
   3. Proxy Required - Enable this field if the CA communication needs to happen via Proxy.

   4. Choose the appropriate Data Center.


8. Configure the CA Configuration with information you want to configure:
   1. API URL: The Trustwave API URL to communicate. Ex: https://testapi.ssl.trustwave.com/3.0/
   2. Username: The username for API authentication.
   3. Password: The password for API authentication.
   4. Reseller ID: The Reseller Id for the account.
9. Configure the Account Details with information you want to configure:
   1. Name: The Organization name given in the Trustwave account.
   2. Email Address: The Administrator or organization email address given in the Trustwave account.
   3. Address: The Organization Address given in the Trustwave account.
   4. City: The city name given in the Trustwave account.
   5. State: The state name given in the Trustwave account.
   6. Zip code: The zip code given in the Trustwave account.
   7. Country: The country code given in the Trustwave account. Ex: US.
   8. Phone number: The phone number given in the Trustwave account.
10. Click Save.
