Configuring Google

To configure the Google CA,

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.
    The left navigation pane is displayed.
  3. Click CERT+.
    The CERT+ left navigation pane is displayed.
  4. Expand ADMINISTRATION.
  5. Click Certificate Authority, and then select Google.

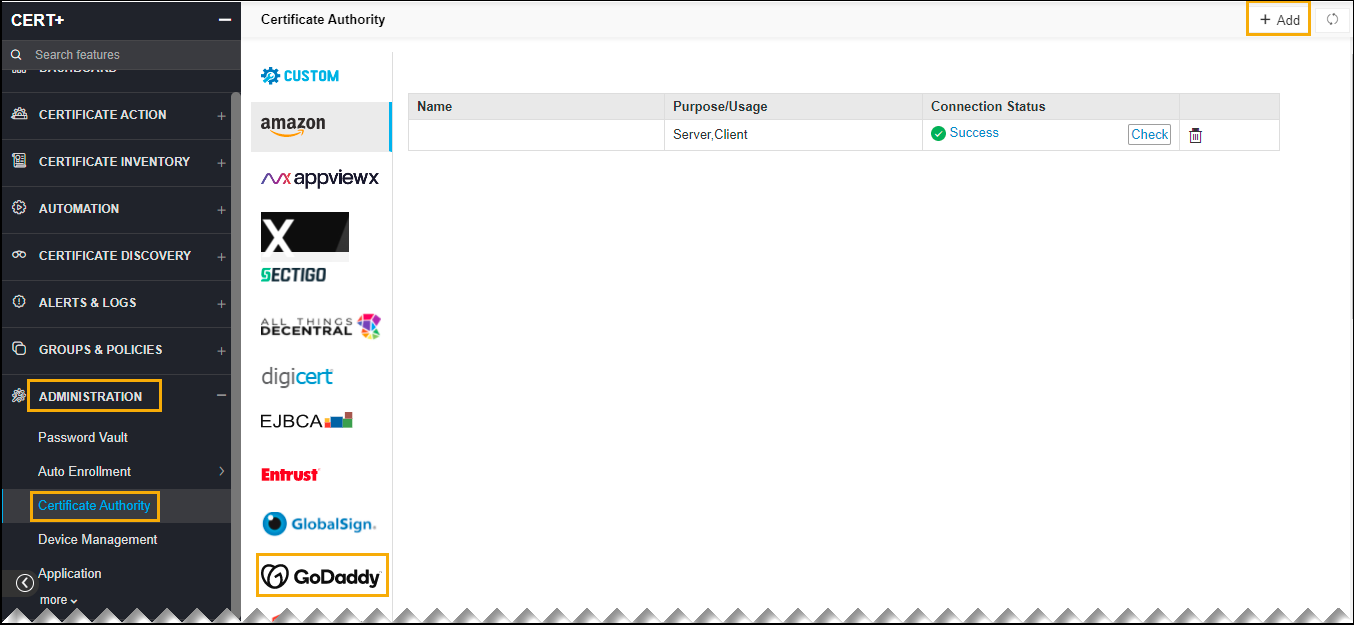

    The Certificate Authority home page is displayed.
  6. Click the +Add button on the top right of the page.

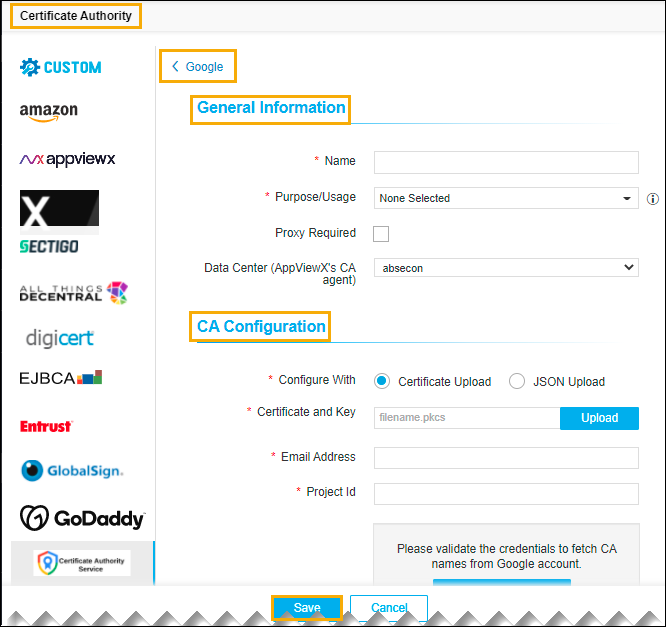

    The Google configuration page is displayed.
  7. Update the following details in the General Information section as described in the table:
    Table 1. General Information - Field Description Table
    Name Description
    *CA Account name A unique name to identify the CA setting.
    Note: No special characters other than ‘.’, ‘-’,’_’ are allowed. The name should not start with special characters.
    *Purpose/Usage Certificate Type for which CLM actions will be enabled. For example, Server and Client
    Proxy Required Enable this field if the CA communication needs to happen via Proxy. The proxy details configured in general settings will be used for communication.
    Data Center (AppViewX's CA agent) Select the data center through which the CA communication needs to happen.
    Note: The asterisk (*) symbol indicates a mandatory field.
  8. Configure either Certificate Upload or JSON Upload. These fields are necessary for invoking the Google CA APIs via Certificate Upload for Certificate Management. Select the Certificate Upload check box,
    Update the following details in the CA Configuration section as described in the table.
    Options Description
    *Certificate and Key Client authentication certificate for API communication.
    *Email address Email address of the user
    *Project Id Id of the project
    Note: The asterisk (*) symbol indicates a mandatory field.
  9. Select the JSON Upload check box and configure a CA. Click the Upload button to upload the JSON file.

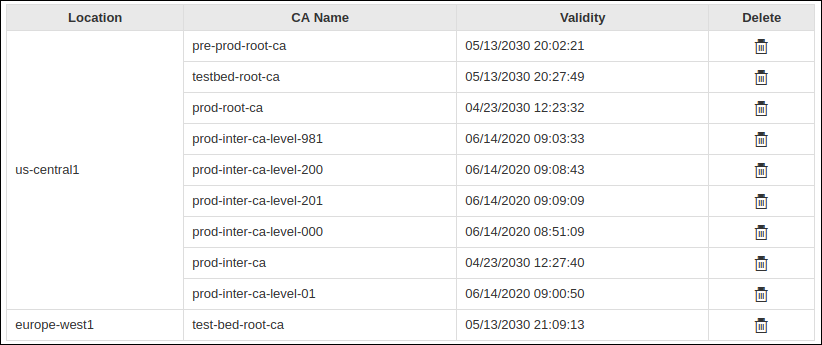

  10. Click Validate and Fetch. The issuer names available for the CA account will be fetched along with the validity of the issuers from the Certificate Authority.
  11. Click Save.
