Validating Nexus

Once the Nexus settings are added, the validation must be done to check whether the connection between AppViewX and Nexus is configured properly.

  1. Log in to the AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.
    The left navigation pane is displayed.
  3. Click CERT+.
    The CERT+ left navigation pane is displayed.
  4. Expand ADMINISTRATION.
  5. Click Certificate Authority, and then select Nexus.
    The Certificate Authority home page is displayed.
  6. Click Check to validate the CA setting that is created.

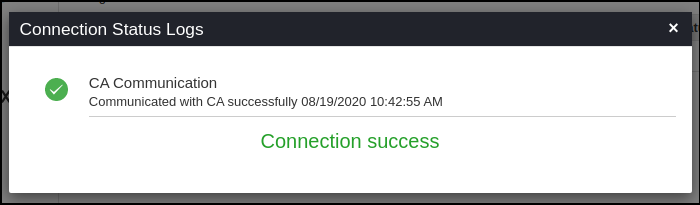

    The CA communication will be validated and the Connection Status will be shown as either Success or Failure.
