Configuring the Bamboo Pipeline Environment

Create or Open a Bamboo Plan:
- Login to the Bamboo instance and create a new plan or open an existing one where the code signing has to be integrated.
Add a Script Task:
- Within the Bamboo plan, add a new Script task to one of the existing jobs or create a new job for this purpose. This task will run the jarsigner command.
- Set the interpreter to "Windows PowerShell" if using a Windows agent or set the interpreter to "Shell" if using a Linux agent.

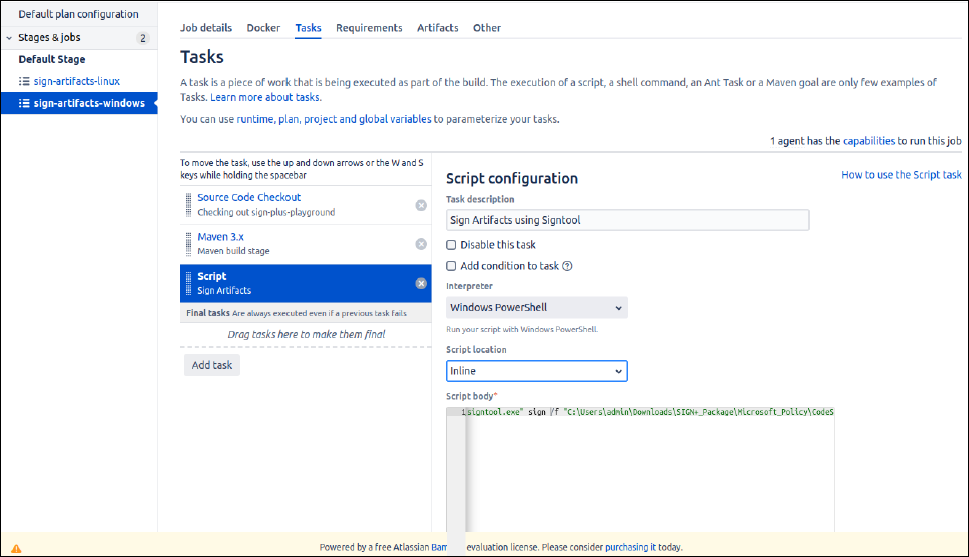

Configure the Script Task for Integration with AppViewX CSP/PKCS#11:
In the Script Body section of the Script task configuration, add the required commands to sign the artifacts based on requirement.
Save and Execute:
- Save the Script task configuration.
- Trigger a Bamboo build for the plan or setup webhooks to trigger the task based on code commit or any other events based on configuration.

Prerequisites

The pipeline should be configured with the required Build stages and the required artifacts should be ready for signing.
Copied the downloaded SIGN+_Package to the configured runner machine or agent and installed the package.
Ensure the connectivity from the runner machine to the SIGN+ API Connector URL Node (Compute Cluster, Cloud Connector, LoadBalancer or OnPrem Worker Node).

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the signtool command generated in the README File after installation and update the Script Section with the generated command.
```
signtool.exe sign /f <path to certificate> /fd <digest algorithm> /csp <csp_name> /k <key_alias_name>
/tr <timestamp_url> /td <timestamp digest algorithm> <input_file_path>
```
- /f <path to certificate>: Path to your code-signing certificate.
- /fd <digest algorithm>: Specifies the hashing algorithm.
- /csp <csp_name>: Name of Cryptographic Service Provider (CSP).
- /k <key_alias_name>: Key Container Name.
- /tr <timestamp_url>: Provides a timestamp from a trusted timestamping authority.
- /tr <timestamp_digest>: Specifies the timestamping Digest algorithm.
- <input_file_path>: Path to the file to be signed.
The <path to certificate>, <digest algorithm>, <csp_name>, <key_alias_name>, <timestamp_url>, <timestamp_digest> parameters are auto generated based on the signing policy configurations in the README after running the SIGN+ Installer.

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the Jarsigner command generated in the README File and update the Script Section with the generated command.
```
jarsigner.exe -verbose -storetype "Windows-My" -keyStore NONE -tsa <time_stamp_url>
<input_file_path> -signedjar <output_file_path> -sigalg <signature algorithm> <keypair alias>
```
The <time_stamp_url>, <signature algorithm> and <keypair alias> parameters are auto generated in the README after running the SIGN+ Installer.

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the nuget command generated in the README File and update the Script Section with the generated command.
```
nuget.exe sign <input_file_path> -Timestamper <timestamp_url> -CertificateFingerprint
<certificate_fingerprint> -HashAlgorithm <hashing_algorithm> -Verbosity detailed -Overwrite
```
The <time_stamp_url>, <certificate_fingerprint> and <hashing_algorithm> parameters are auto generated in the README after running the SIGN+ Installer.

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the Jarsigner command generated in the README File and update the Script Section with the generated command.
```
jarsigner -verbose -keystore NONE -storetype PKCS11 -certs -providerclass
sun.security.pkcs11.SunPKCS11 -providerArg <path to AVXPKCS11V1.cfg> <input_file_path> -signedjar
<output_file_path> -tsa <time_stamp_url> -sigalg <signature algorithm> <keypairalias>
```
The <path to AVXPKCS11V1.cfg>, <time_stamp_url>, <signature algorithm> and <keypair alias> parameters are auto generated in the README after running the SIGN+ Installer.

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the JSign command generated in the README File and update the Script Section with the generated command.
```
java -jar <path_to_jsign_jar> --keystore <path to AVXPKCS11V1.cfg> --storetype PKCS11 --storepass
12345678 --alias <keypair alias> --alg <digest algorithm> --tsaurl <timestamp url> <input_file_path>
```
The <path to AVXPKCS11V1.cfg>, <keypair alias>, <digest algorithm>, <timestamp url> parameters are auto generated based on the signing policy configurations in the README after running the SIGN+ Installer.

Execute the AppViewX SIGN+ Installer executable in the configured runner machine to install the prerequisites required to use the AppViewX CSP/PKCS11 Providers.
Copy the APKSigner command generated in the README File and update the Script Section with the generated command.
```
java -jar <path_to_apk_signer_jar> sign --provider-class sun.security.pkcs11.SunPKCS11 --provider-arg
<path to AVXPKCS11V1.cfg> --ks NONE --ks-type PKCS11 --ks-pass pass:12345678 --ks-key-alias
<keypair alias> --in "<input_file_path>" --out "<output_file_path>" --v1-signing-enabled false
--v2-signing-enabled false --v3-signing-enabled true --v4-signing-enabled false
```
The <path to AVXPKCS11V1.cfg>, <keypair alias> parameters are auto generated based on the signing policy configurations in the README after running the SIGN+ Installer.
Note: The script can be configured to sign with any tool using the commands generated in the README File based on requirement.
