Create Citrix SLB Virtual Server

This workflow creates a virtual server on Citrix LTM devices.

To run this workflow:
  1. Go to Menu > ADC+ > AUTOMATION > Workflow Catalog > View/Run
  2. Click the Citrix SLB category on the View/Run Workflows page.
  3. On the popup window, hover the mouse over the Create Citrix SLB Virtual Server workflow.
    The Run and Schedule buttons are displayed.
  4. Click .
    The Request > Create Citrix SLB Virtual Server :: FormBuilder page is displayed.
  5. Select the field information in the Citrix Device Details section.
  6. The following table provides the field description for the Citrix Device Details section:
    Table 1. Citrix Device Details Section - Field and Description Table
    Field Description
    Data center Displays the list of datacenters of the devices, which are created in the Device Inventory. Select the datacenter of a device from the drop-down option for which this request is to be created. For the devices, which are created without a datacenter in the Device Inventory, select the datacenter as None.
    *Citrix LTM Device Displays the list of devices associated with the selected datacenter. If the datacenter is selected as None, the devices that are created without datacenter details are listed. Select the desired device from the drop-down option.
  7. Enter or select the field information in the Citrix Vip Details section.
    Table 2. Citrix Vip Details Section - Field and Description Table
    Field Description
    *Virtual Server Name Enter the name of the virtual server.
    *Virtual Server IP Enter the VIP address.
    *Virtual Server Port Enter a server port.
  8. Enter or select the field information in the Service or Service Group Details section.
    Table 3. Service or Service Group Details Section - Field and Description Table
    Field Description
    *Protocol Enter the name of the virtual server.
    *Type Enter the VIP address.
    *Service Name Enter a service port.
    *Service IP Address Enter service IP address.
    *Service Port Enter service port.
    *Service Details Click Add () button to add the service(s) to the Service Details.
  9. Enter or select the field information in the Monitor section of Form Input.
    Table 4. Monitor Section - Field and Description Table
    Field Description
    *Monitor Settings By default, No option is selected. Select Yes to choose the health monitors.
  10. Click the Submit button.
    The Confirmation popup opens.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.
  11. Click Ok to submit the form.
    The validation starts automatically and reaches the Review stage.
    Note:
    • If there is any failure at this stage, start a new request by providing the correct data.
    • Alternatively, select the failed request and clone it. Update the correct input data in the form input, and submit the workflow again.

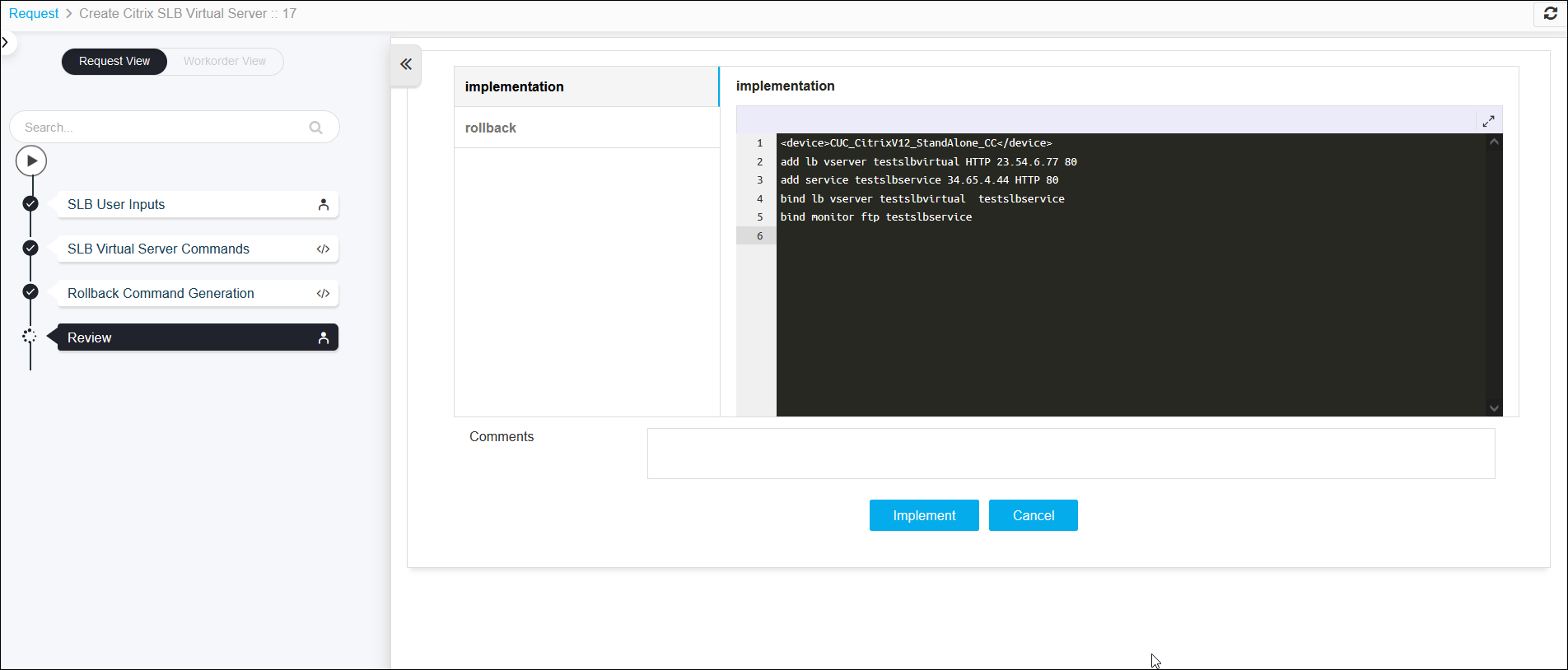

  12. Review the input data under the implementation, rollback, and postvalidation tabs:
  13. (Optional) If you need to update any data at this stage, you can do so by clicking the right-side of the mouse on the data and selecting the desired option.
  14. After the review, click the Implement button.
    The Confirmation popup opens.
    Note: To stop running the workflow creation, click Cancel.
  15. Click Ok to continue the workflow creation.
    It takes a while to complete the request.
  16. The workflow is created and the email is triggered to the configured email IDs.
    Note: The stages of the request are shown in the left-side of the screen. To view a particular stage of the request, click the respective stage.
