Adding A10 Device

To add A10 device,

  1. Log in to the AppViewX application with valid credentials.
  2. Go to Menu > ADC+ > ASSET MANAGEMENT.
  3. Perform any of the following:

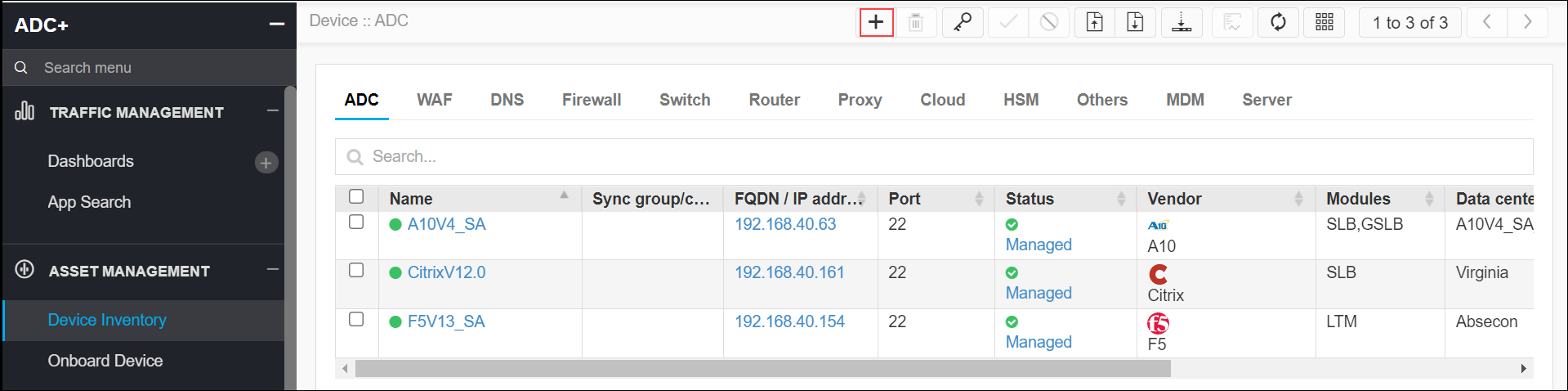

    • Click Device Inventory, and then select Add (+) icon to navigate to the Device details page.



    • Click Onboard Device in the left navigation panel.

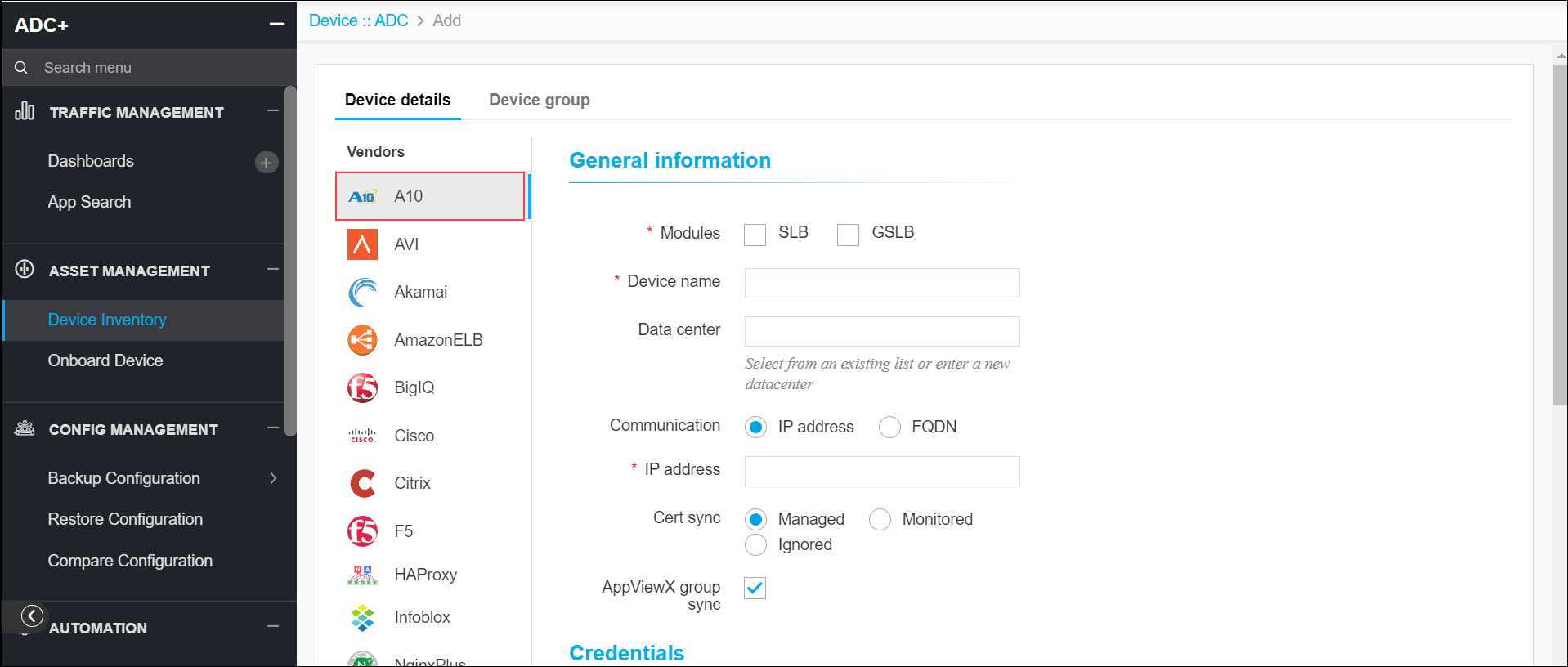

  4. In the Device details page, select A10 from the left sidebar.

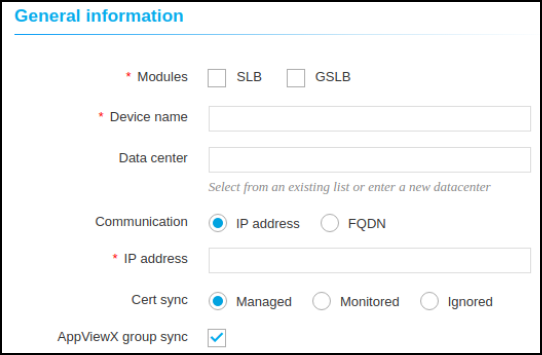

  5. Enter or select the field information in the General information section.
  6. The following table provides the field description for adding ADC device details in the General information section:
    Name Type Mandatory Description Validation
    Module Check box Yes SLB / GSLB Module. NA
    Device name Text Yes Unique name of the device to be added. Device names can only contain alphanumeric characters, '-' , '_' , '.' , '*' , '|' , '!' and spaces.
    Data center Text No Datacenter name where the device is configured. The default value is Absecon. Data center name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , ':' , '|' and spaces.
    Communication Radio button Yes Devices can be accessed using an IP address or FQDN. NA
    IP Address Text Yes The ipv4 address of the device. The IP address should be in the right format.
    FQDN Text Yes The FQDN of the device. the FQDN should be in a valid format.
    Cert Sync Radio button Yes

    Managed:

    The certificates of the device can be managed.

    Monitored:

    The certificates of the device can be monitored.

    Ignored:

    The certificate sync can be ignored.

    		 NA
    AppViewX Group Sync Check box No This should be enabled if the user wants to sync the devices within the device group. NA

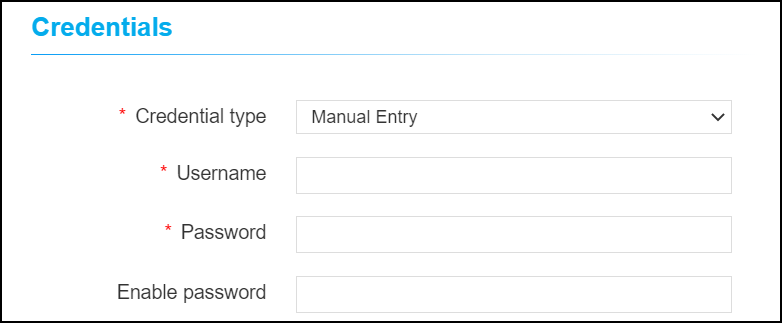

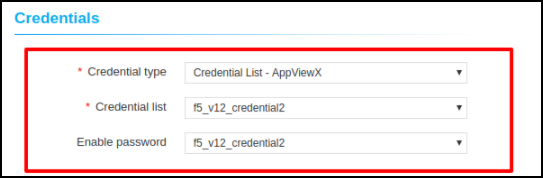

  7. Enter or select the field information in the Credentials section. You can select Manual Entry or Credential List.
  8. The following table provides the field description for adding ADC device details in the Credentials section:
    Name Type Mandatory Description Validation
    Credential type Dropdown Yes

    Manual entry:

    The user should enter the username and password.

    Credential List:

    The user can select the credential details which are already stored in the credential inventory page.

    		NA
    Username Text Yes If manual entry is selected, the user name should be entered by the user. NA
    Password Text Yes If manual entry is selected, the password should be entered by the user. NA
    Enable password Text No Enable password of the A10 device. NA

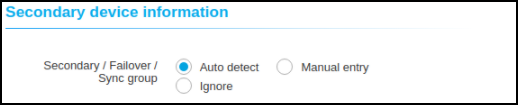

  9. Enter or select the field information in the Secondary device information section.
  10. The following table provides the field description for adding ADC device details in the Secondary device information section:
Name Type Mandatory Description Validation
Secondary device information Radio button Yes

Auto detect:

The user should select this option to auto-detect and add the peer devices in the inventory page.

Manual entry:

The user can use this option to add the peer devices manually.

Ignore:

The user can use this option to ignore the auto-detection of the peer devices.

 NA
  1. Click Save.
