Adding Amazon ELB

To add Amazon ELB,

  1. Login to the AppViewX application with valid credentials.
  2. Go to Menu > ADC+ > ASSET MANAGEMENT.
  3. Perform any of the following:

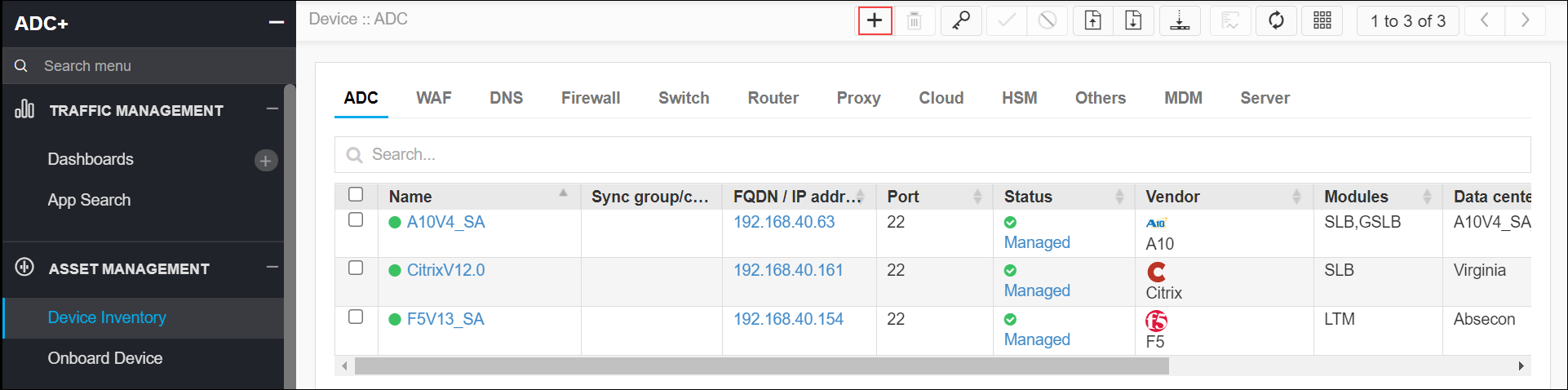

    • Click Device Inventory, and then select Add (+) icon to navigate to the Device details page.



    • Click Onboard Device in the left navigation panel.

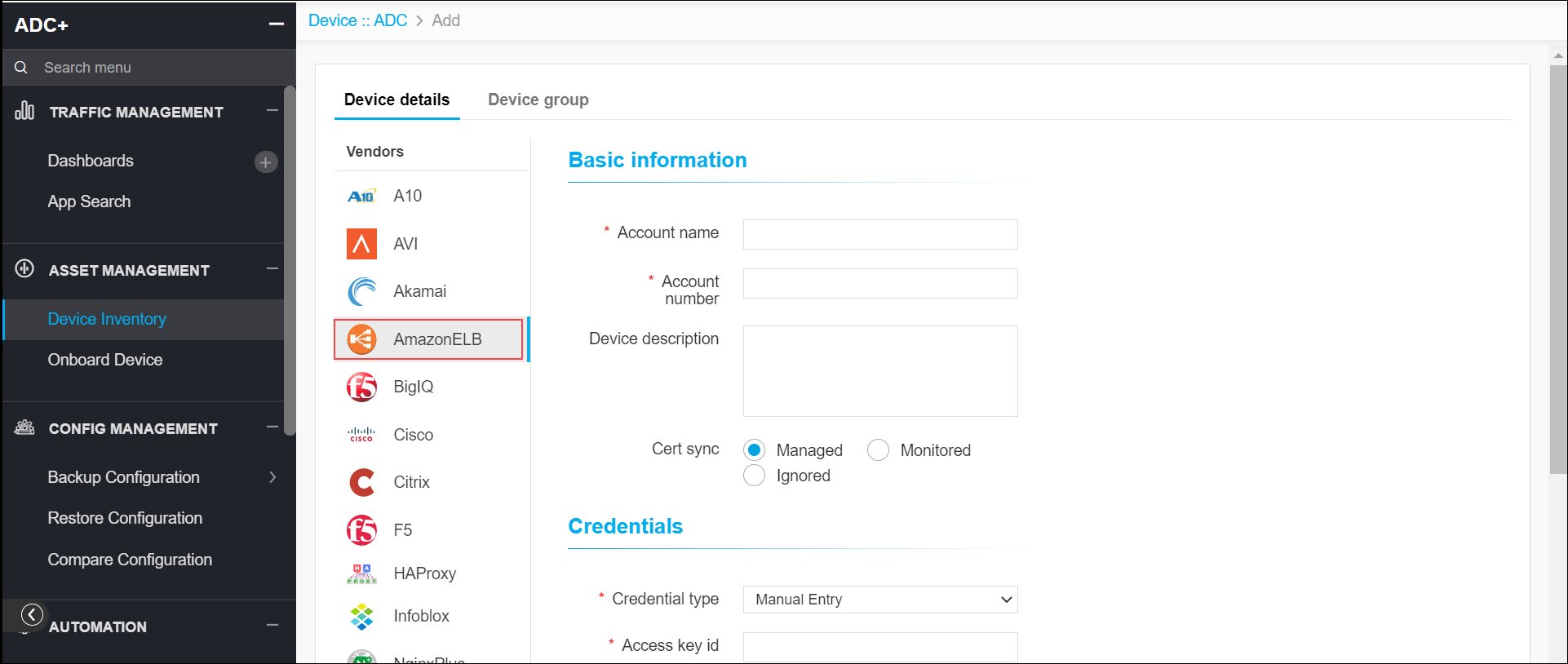

  4. In the Device details page, select Amazon ELB from the left sidebar.

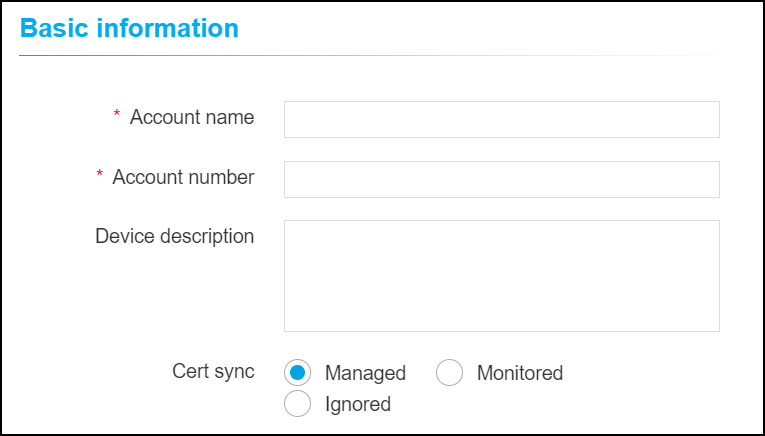

  5. Enter or select the field information in the Basic information section.

  6. The following table provides the field description for adding ADC device details in the Basic information section:
    Name Type Mandatory Description Validation
    Account name Text Yes The account name of the AmazonELB device. NA
    Account number Text Yes Account number of the AmazonEB device. Numbers only.
    Device description Text No Description about the AmazonELB account. NA
    Cert Sync Radio button Yes

    Managed:

    The certificates of the device can be managed.

    Monitored:

    The certificates of the device can be discovered and can only be monitored.

    Ignored:

    The certificate sync can be ignored.

    		 NA

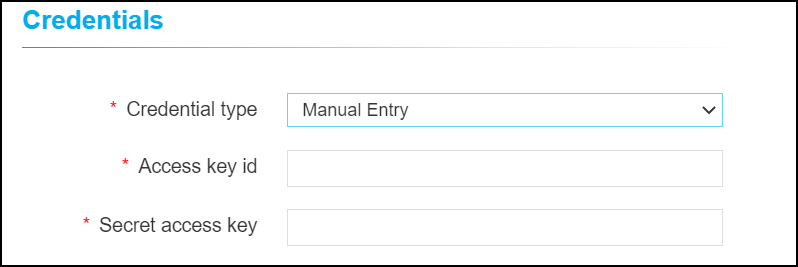

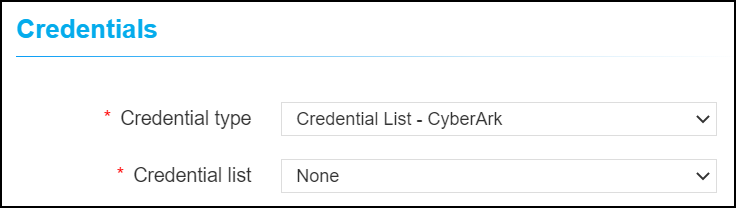

  7. Enter or select the field information in the Credentials section. You can select Manual Entry or Credentials List.
  8. The following table provides the field description for adding ADC device details in the Credentials section:
    Name Type Mandatory Description Validation
    Credential type Dropdown Yes

    Manual entry: The user should enter the Access key ID and Secret access key.



    Credential List: The user can select the credential details which are already stored in the credential inventory page.



    		 NA
    Access key id * Text Yes Access key id of the AmazonELB device. NA
    Secret access key * Text Yes Secret access key of the AmazonELB device. NA

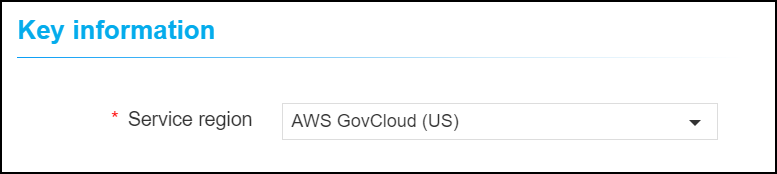

  9. Enter or select the field information in the Key information section.
  10. The following table provides the field description for adding ADC device details in the Key information section:
Name Type Mandatory Description Validation
Service region * Dropdown Yes Service region of the AmazonELB device. NA
  1. Click Save.
