Adding BigIQ Device

To add BigIQ device,

  1. Login to the AppViewX application with valid credentials.
  2. Go to Menu > ADC+ > ASSET MANAGEMENT.
  3. Perform any of the following:

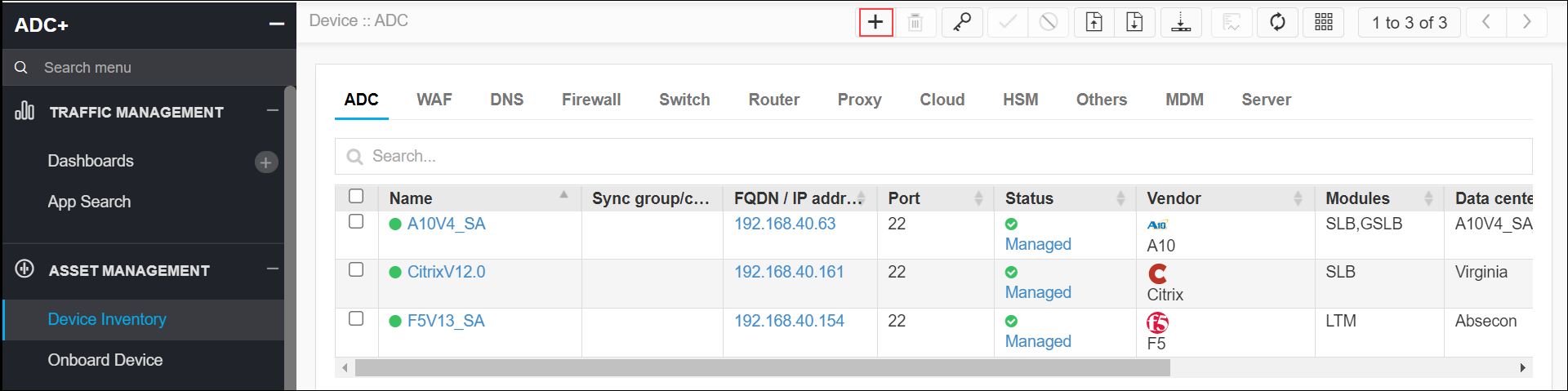

    • Click Device Inventory, and then select Add (+) icon to navigate to the Device details page.



    • Click Onboard Device in the left navigation panel.

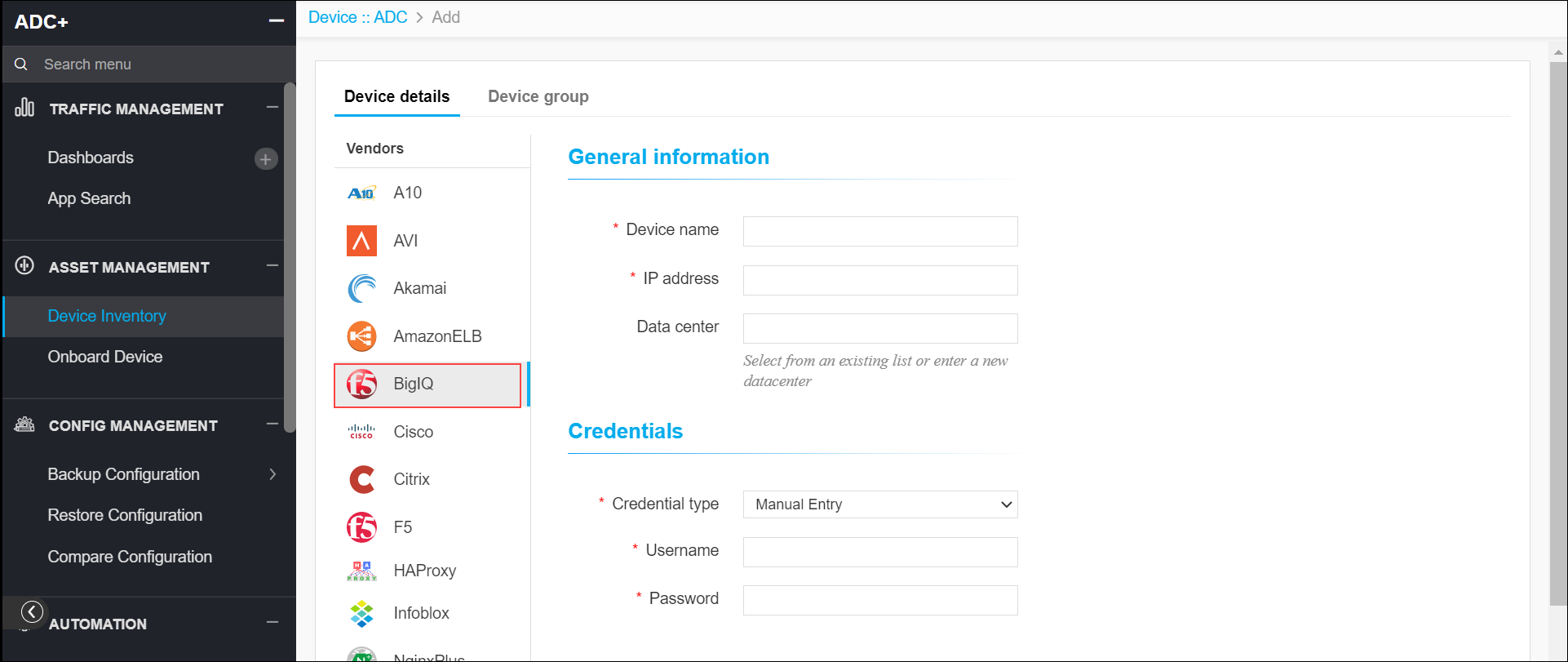

  4. In the Device details page, select BigIQ from the left sidebar.

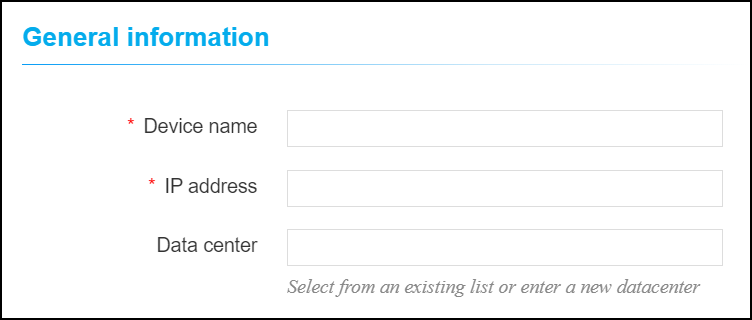

  5. Enter or select the field information in the General information section.

  6. The following table provides the field description for adding ADC device details in the General information section:
    Name Type Mandatory Description Validation
    *Device name Text Yes Unique name of the device to be added. Device name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , '|' , '!' and spaces.
    *IP Address Text Yes IP Address of the BigIQ device. IP address should be in IPv4 format.
    Data center Text No Datacenter name where the device is configured. Default value is Absecon. Data center name can only contain alphanumeric characters, '-' , '_' , '.' , '*' , ':' , '|' and spaces.

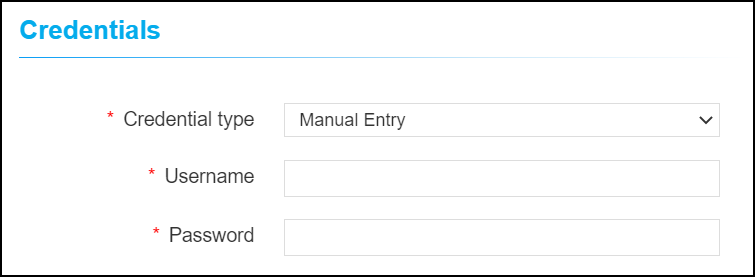

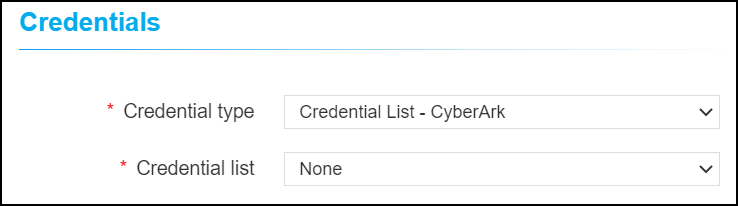

  7. Enter or select the field information in the Credentials section. You can select Manual Entry or Credentials List.
  8. The following table provides the field description for adding ADC device details in the Credentials section:
    Name Type Mandatory Description Validation
    *Credential type Dropdown Yes
    Manual entry: The user should enter the username and password.

    Credential List: The user can select the credential details which are already stored in the credential inventory page.

    		 NA
    *Username Text Yes Username of the BigIQ device. NA
    *Password Text Yes Password of the BigIQ device. NA
  9. Click Save.
