Fetch Application Services

This workflow fetches all the AS3 objects of a partition.

Pre-requisites

  • The AS3 service has to be enabled in the target F5 device.

  • F5 device list displays only AS3 service enabled and active devices.

To run this workflow,

  1. Go to Menu > Request > View/Run.
    The Workflow Catalog page appears.

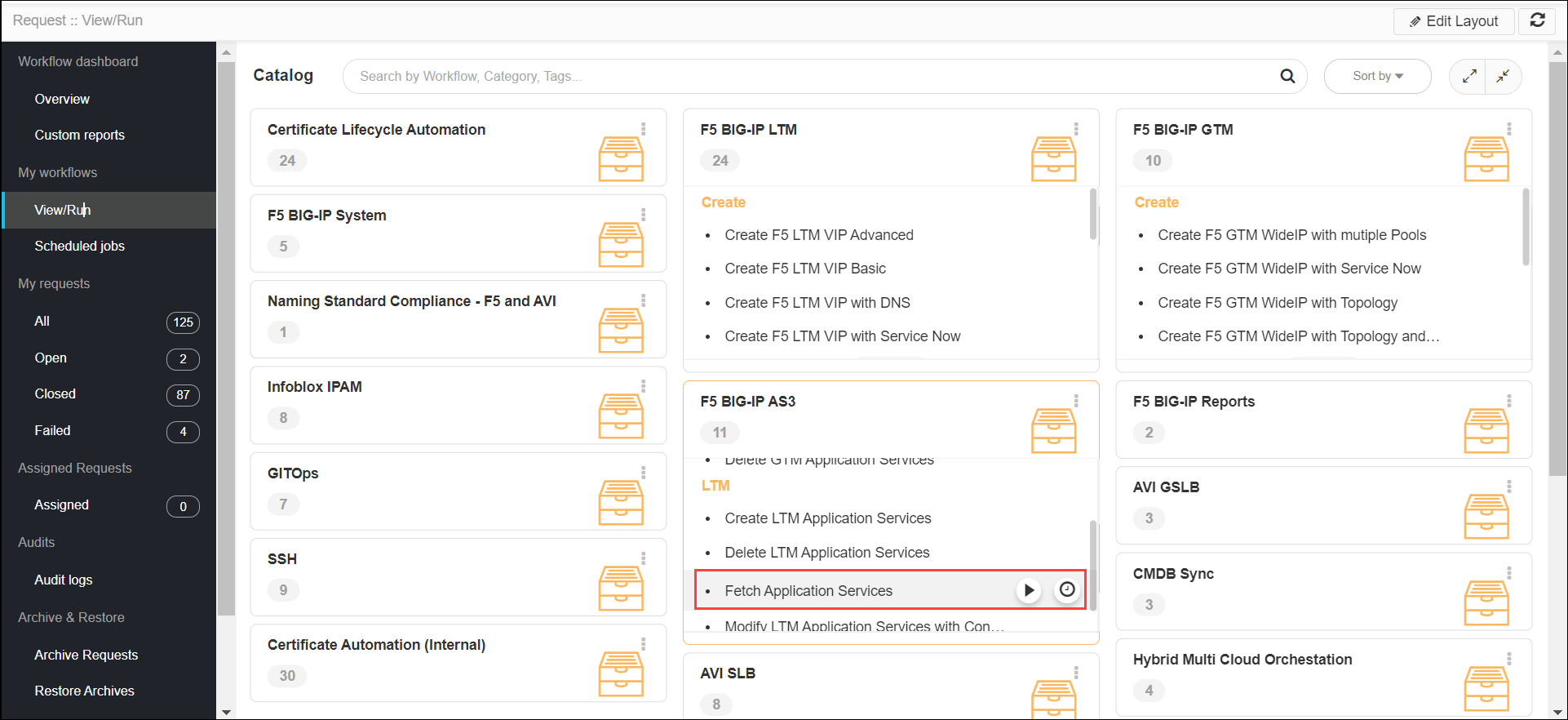

  2. In the Workflow Catalog page, hover over the Fetch Application Services workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

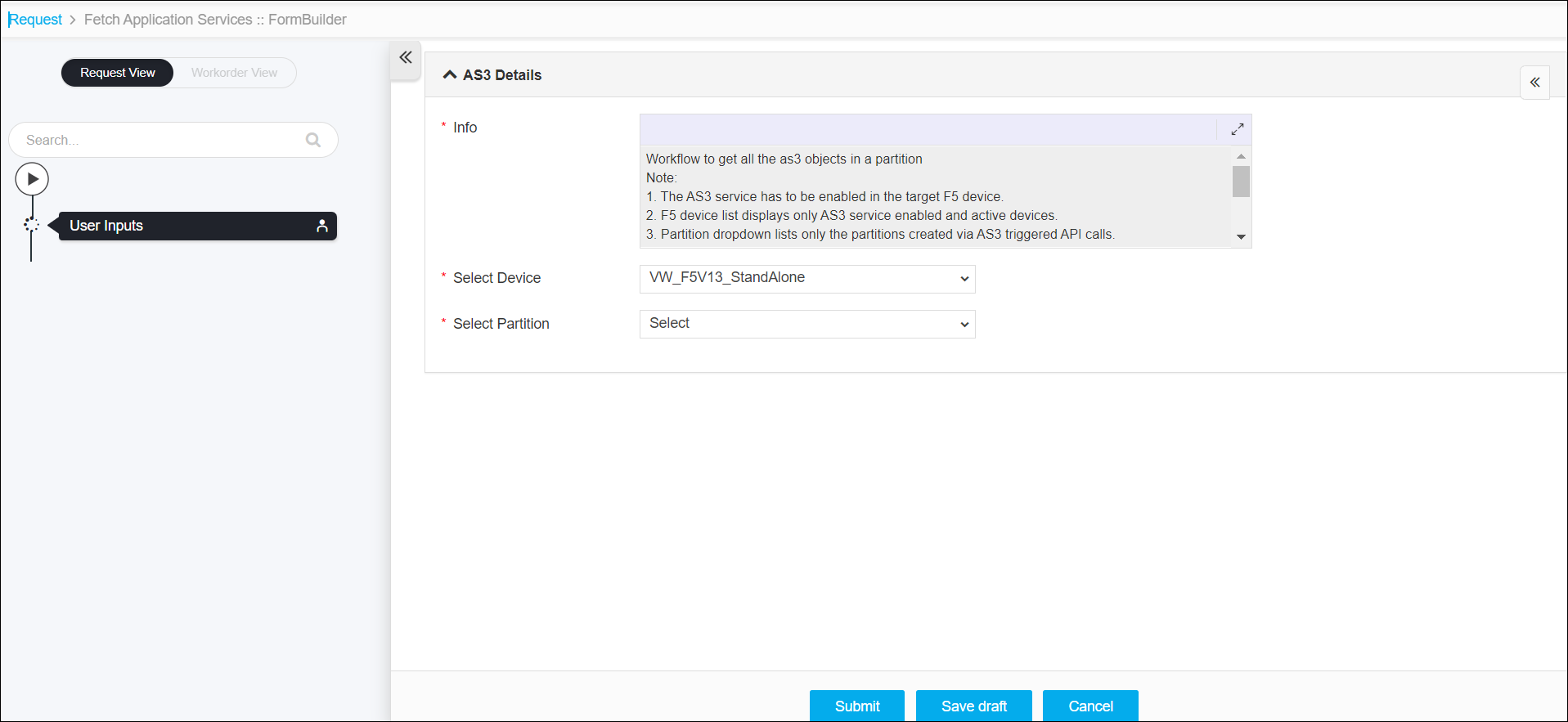

    The Form Input page opens:

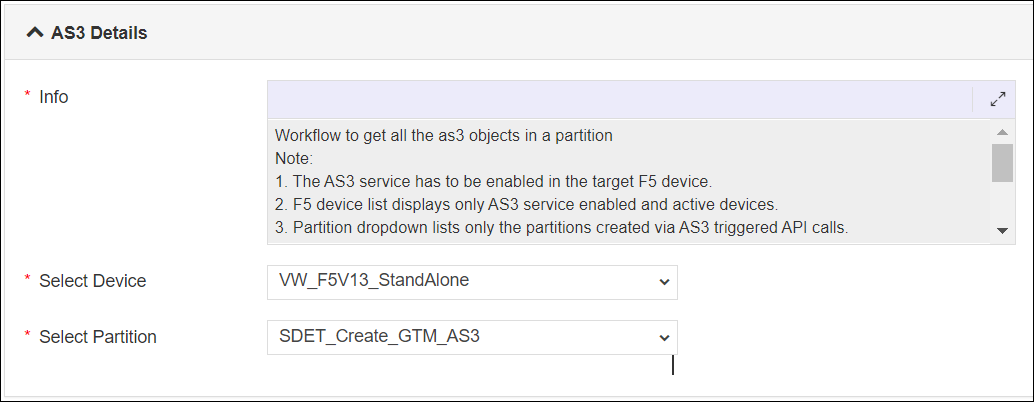

  4. Select the Device Name and associated partition to fetch the AS3 objects.

  5. Click the Submit button.
    The validation starts automatically stage.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.

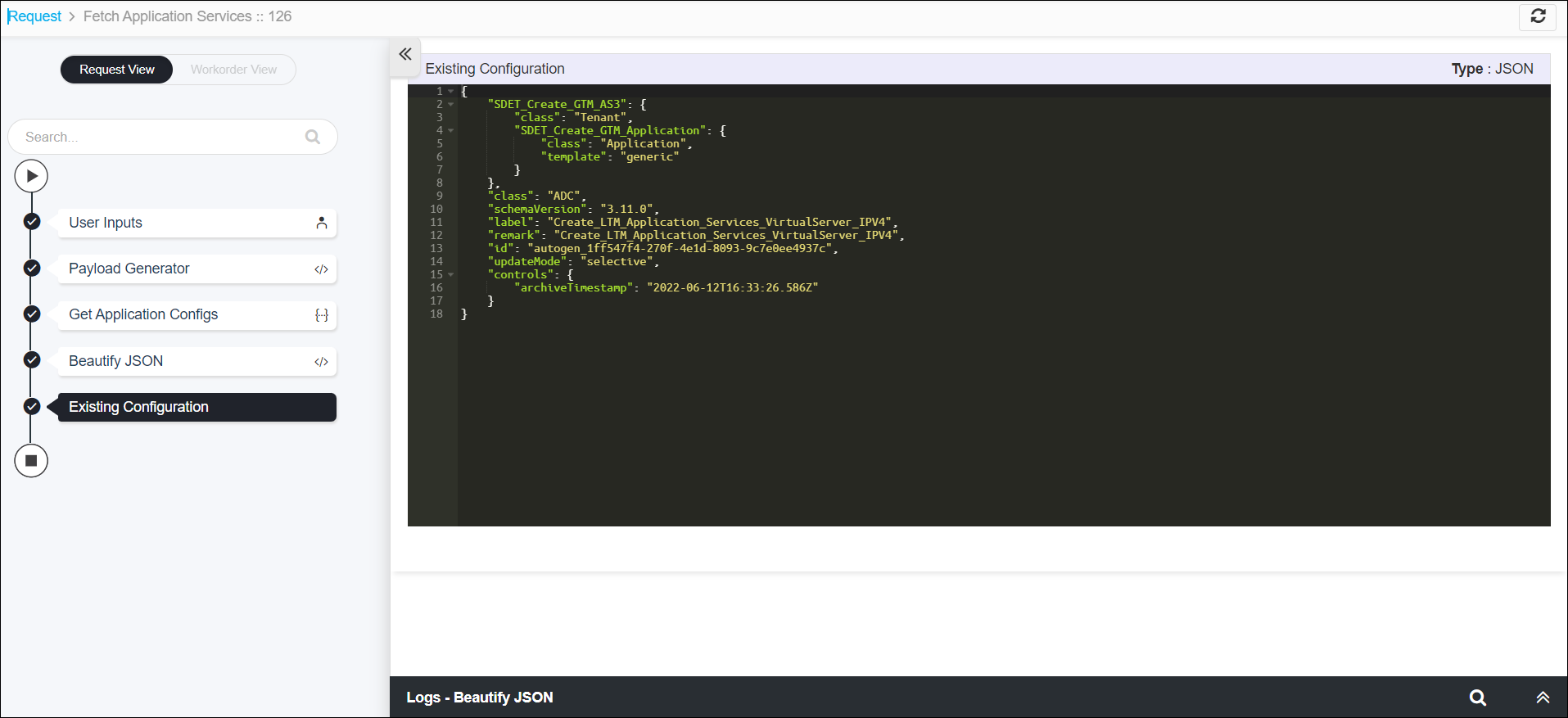

  6. The workflow is created and AS3 objects are fetched in the JSON format.
    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
