Modify LTM Application Services

This workflow modifies virtual server along with pool and other objects using application services (AS3) in F5.

Pre-requisites

  • The AS3 service has to be enabled in the target F5 device.

  • F5 device list displays only AS3 service enabled and active devices.

To run this workflow,

  1. Go to Menu > Request > View/Run.
    The Workflow Catalog page appears.
  2. In the Workflow Catalog page, hover over the Modify F5 LTM WideIP workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

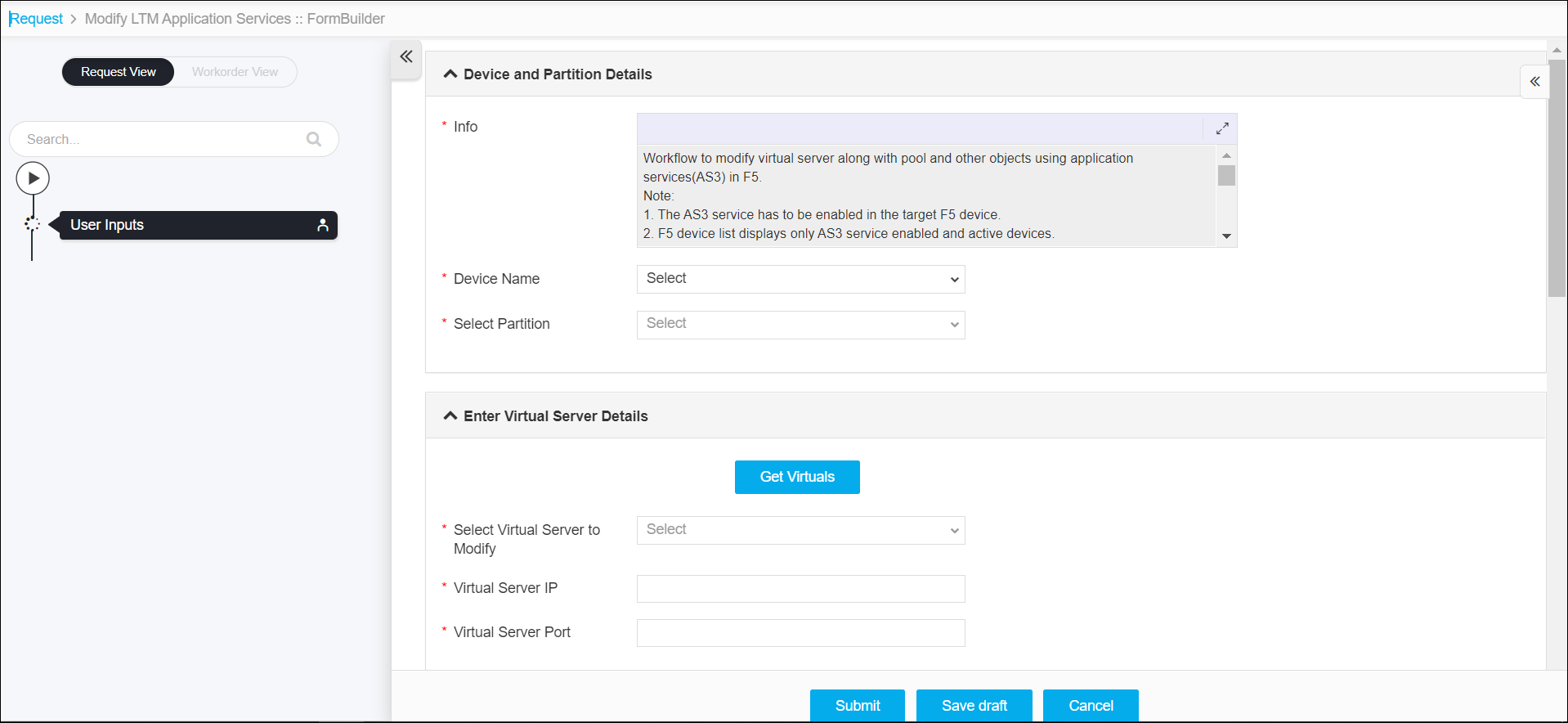

    The Form Input page opens:

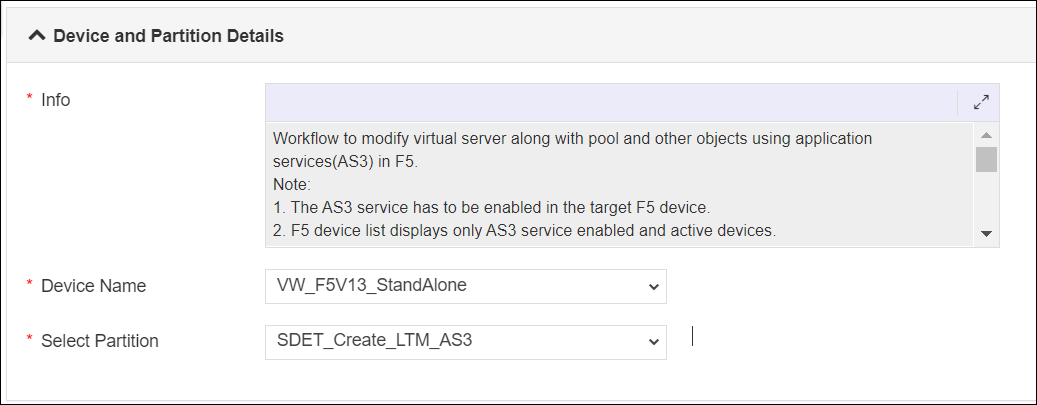

  4. Select the Device Name to modify, and then choose the Partition of the device that are to be modified.

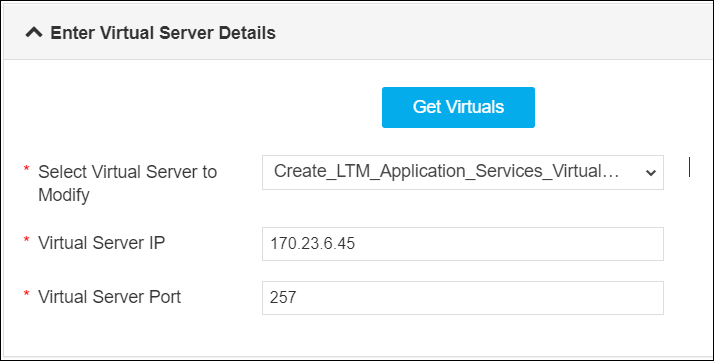

  5. Click the Get Virtuals button to get the virtual server details and select the modify the virtual server details as needed.

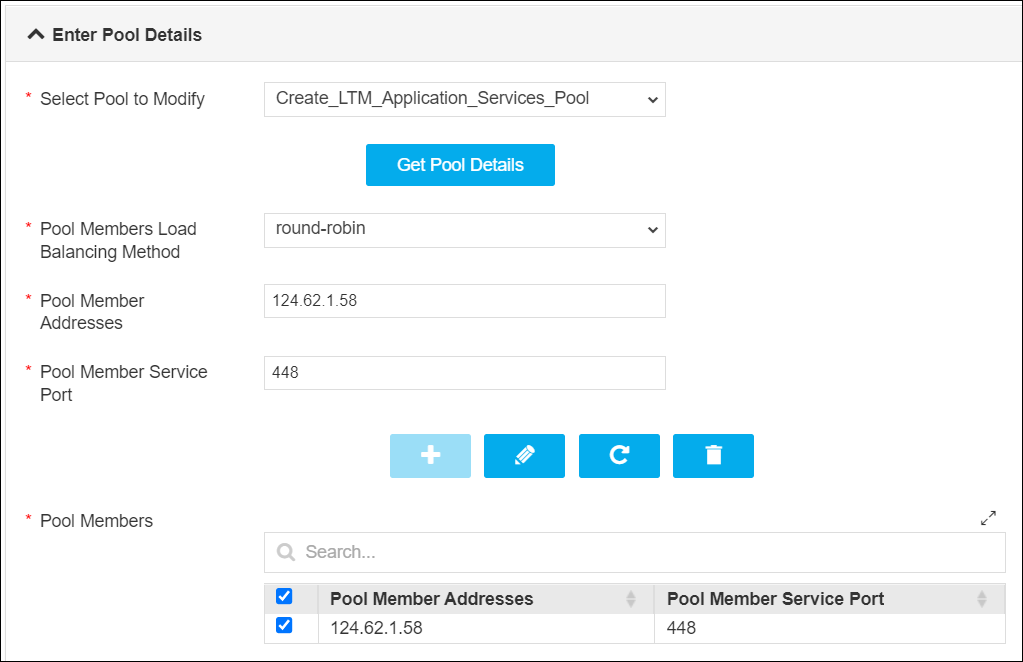

  6. Fetch the associated pool by clicking the Get Pool Name button, and then fetch the pool's details by clicking the Get Pool Details button to modify.
    Note: Select the check box in the Pool Members table for the pool member to modify.
  7. Update the necessary details, and then click the Submit button.
    The validation starts automatically stage.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.
  8. The workflow is created with modified details..
    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
