Migrating the CA for Client Certificate

To migrate the CA client certificate,

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.
    The left navigation pane appears.
  3. Click CERT+.
    The CERT+ left navigation pane appears.
  4. Expand CERTIFICATE ACTION.

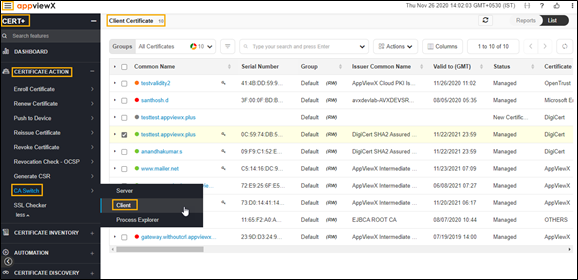

  5. Select CA Switch, and then Client.
    The Client Certificate page appears.
  6. In the Common Name column certificate list, select the desired certificate that you want to migrate to the CA.

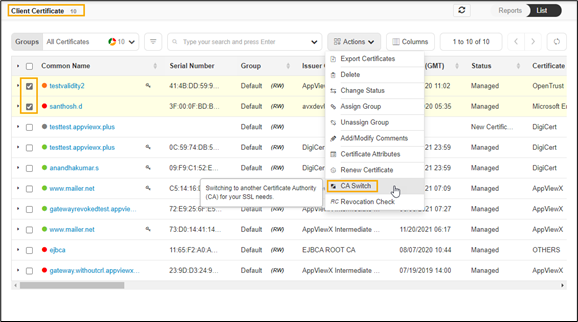

  7. Click Actions, and then select CA Switch.

    The CA Switch pop-up window appears.

  8. From the Target CA list, choose the desired CA to migrate.
  9. Note: The Issuer Location and Issuer Name dropdown fields are displayed only when you are migrating to Google CA. This is because, for Google CA, one policy can contain several intermediary CAs.
    If you are migrating to the Google CA:
    1. From the Issuer Location dropdown list, select the issuer location.
    2. From the Issuer Name dropdown list, select the issuer name.
  10. For migrating to other CAs, skip this step.
  11. Enter the Name of the triggered migration.
  12. Click Save

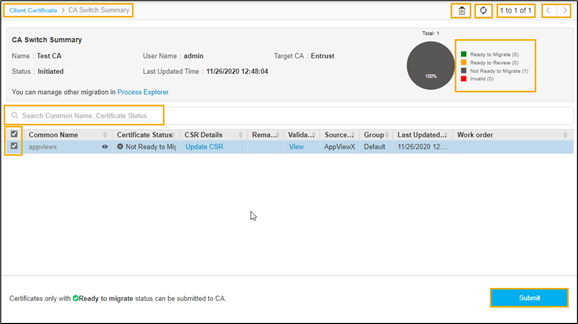

  13. The CA Switch Summary page appears.
    The following table describes the options available in the CA Switch Summary page:
    Options Description
    Allows you to delete the certificates from the list if decided not to migrate.
    Refreshes the CA Switch summary page.
    Displays the number of certificates displayed on the current page.
    Allows you to move to the next and previous page if more pages exist.
    Search Searches for the given keyword in the field and results in the feature that matches the search keyword.
    Color Coding Status The color code on the top-right indicates the status of the certificate on the CA Switch summary page.
  14. In the check box column certificate list, select the desired certificate that you want to migrate.
  15. In the Common Name column, click the eye icon to view certificate details.
  16. In the CSR details column, click Update CSR to review the details.
  17. In the Validation log column, click View to display the events recorded during the CA switch.
  18. Click Submit.
  19. Perform the required actions in the Work order column.
  20. In the Work order column, click Approve.
    The Approve pop-up window appears.
  21. Click the Schedule later button if the workflow request has to be approved automatically in the future.
  22. Select the Implementation Time from the calendar field.
  23. Enter the Comments.
  24. Click Yes.

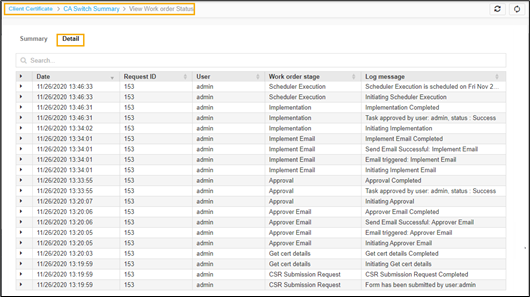

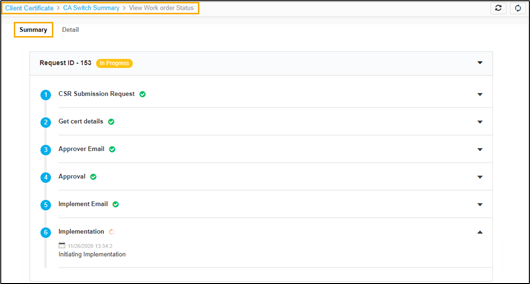

  25. In the Work order column, click the status if you want to see the Summary and Details status of the progress.
    The View Work order Status page appears.
  26. In the Work order column, click Implement.
    The Implement pop-up window appears.
  27. Click the Schedule later button if the workflow request has to be implemented automatically in the future.
  28. Select the Implementation Time from the calendar field.
  29. Enter the Comments in the field.
  30. Click Yes.
  31. In the Work order column, click the status if you want to see the Summary and Details status of the progress.
    The View Work order Status page appears.
  32. Click the refresh icon on the top-right of the page to update the Work Order status. After the CA Switch is completed, the Work order status changes to Completed.
