Revoking Server Certificate

Note: For the DevOps users, the issuing CA may disable the revoke action. In this case, a pop-up message, informing the user of this, is displayed. For enterprise users, the revoke action is enabled.

To revoke a server certificate:

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.
    The left navigation pane appears.
  3. Click CERT+.

    The CERT+ left navigation pane appears.

  4. Expand CERTIFICATE ACTION.

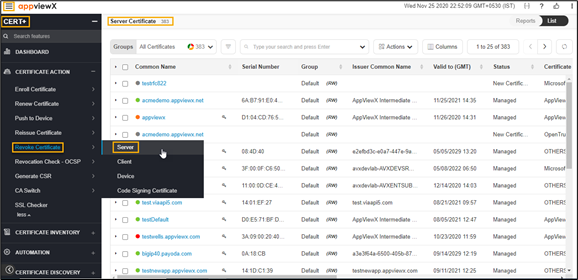

  5. Select Revoke Certificate, and then Server.

    The Server Certificate page appears.

  6. Click the Common Name of the certificate to navigate into the holistic view.
  7. Hover over the vertical eclipse icon on the certificate.
  8. Click Revoke from the drop-down list.
  9. In the Revoke pop-up window, select Reason from the drop-down list and click Yes to proceed.
  10. Revoke process is initiated.
    Note: If an Approval Required checkbox is enabled on the Certificate Policy page, the request goes to Approve and Implementation stages.
  11. Click Approve button to proceed.
  12. Click Yes.
  13. In the Approve pop-up window, provide the Comments.
  14. Click Schedule later if the workflow request has to be approved automatically in the future.
  15. Click Yes.
  16. Click the Implement button to proceed.
  17. On the Implement pop-up, provide the Comments.
  18. Click Schedule later if the workflow request has to be implemented automatically in the future.
  19. Click Yes.
  20. After the revoke action is completed, the status updates to Completed.
