Configuring DigiCert MPKI

  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, Select DigiCert.
    The DigiCert home page is displayed.
  3. Click the DigiCert MPKI tab.
  4. Click the Configure Now or +Add icon from the middle or top-right of the page respectively.

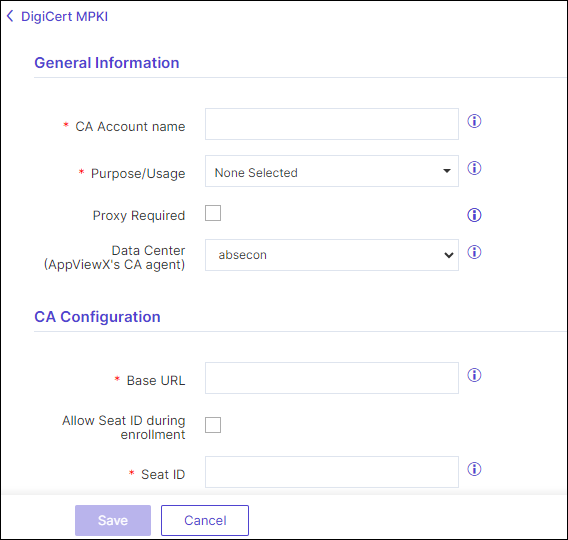

    The DigiCert MPKI configuration page is displayed.
  5. Update the following details in the General Information section as described in the table.
    Table 1. General Information - Field Description Table
    Fields Description
    *CA Account name A unique name to identify the CA setting. No special characters other than ‘.’, ‘-’,’_’ are allowed. Names should not start with special characters.
    *Purpose/Usage Certificate Type for which CLM actions will be enabled.

    Example: Server, Client
    Proxy Required Enable this field if the CA communication needs to happen via Proxy. The proxy details configured in general settings will be used for communication.
    Data Center (AppViewX's CA agent) Select the data center through which the CA communication needs to happen.
    Note: The asterisk (*) symbol indicates a mandatory field.
  6. Update the following details in the CA Configuration section as described in the table. These fields are necessary for invoking the Digicert CA APIs for Certificate Management.
    Table 2. CA Configuration - Field Description Table
    Fields Description
    *Base URL This URL will contain just the hostname of the Digicert CA instance. For example, <https://www.digicert.com>
    *Seat ID Enter the unique seat id for discovering certificates.
    *API Key Enter the API key, which is generic across all CAs
    Note:
    • The asterisk (*) symbol indicates a mandatory field.
    • Auto approval checkbox is optional and features work only for one-step certificate requests configured in the DigiCert Central Account.
  7. Select Fetch Divisions and Certificate Types.
    The Division and Certificate types available in the Digicert CA account will be fetched and listed for the specific API key user in the table as shown below.
  8. Click Save.
    A pop-up message is displayed as <CA_name> Settings Added.
