Configuring GlobalSign MSSL

  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, Select GlobalSign.
    The GlobalSign home page is displayed.
  3. Click the GlobalSign MSSL tab.
  4. Click the Configure Now or +Add icon from the middle or top-right of the page respectively.
    The GlobalSign MSSL configuration page is displayed.

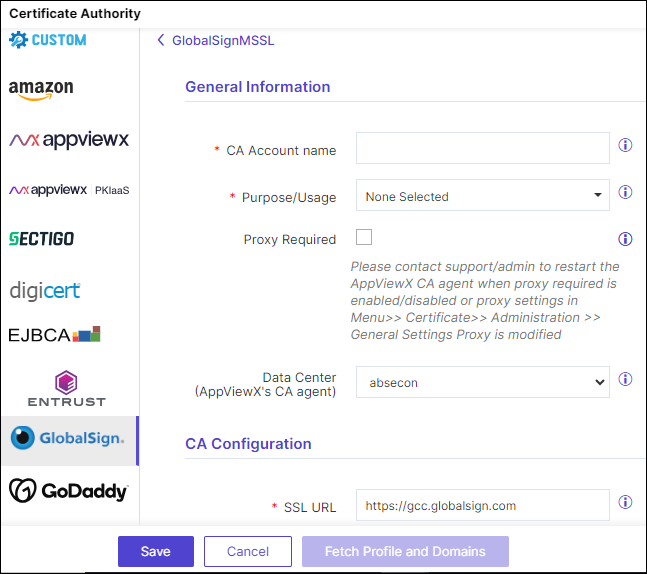

  5. Update the following details in the General Information section as described in the table.
    Table 1. General Information - Field Description Table
    Fields Description
    *CA Account name A unique name to identify the CA setting. No special characters other than ‘.’, ‘-’,’_’ are allowed. The name should not start with special characters.
    *Purpose/Usage Certificate Type for which CLM actions will be enabled. For example, server and clients
    Proxy Required Enable this field if the CA communication needs to happen via Proxy. The proxy details configured in general settings will be used for communication.
    Data Center (AppViewX's CA agent) Select the data center through which the CA communication needs to happen.
    Note: The asterisk (*) symbol indicates a mandatory field.
  6. Update the following details in the CA Configuration section as described in the table.
    Fields Description
    *SSL URL Base URL of the SSL API
    *User Name Provide a username of the GCC to communicate with the CA.
    *Password Provide a password for the GCC to communicate with the CA.
    Note: The asterisk (*) symbol indicates a mandatory field.
  7. Once all the details are configured, click Save.

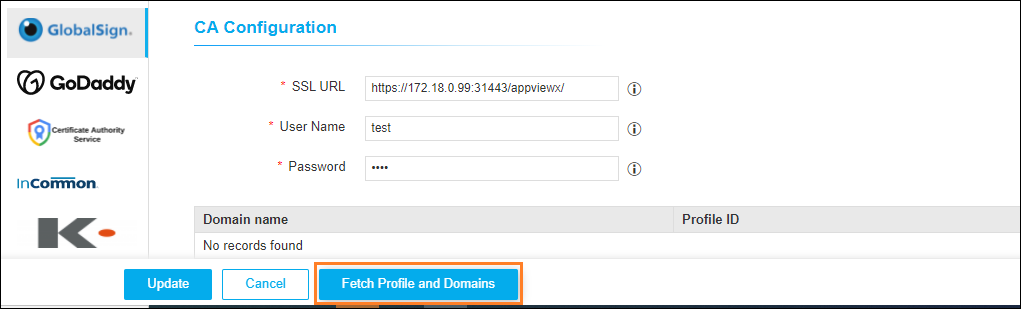

  8. In GlobalSign MSSL, we can now fetch profiles and domains by clicking on the Fetch Profiles and Domain button.
    Note: The supported CSR key types are RSA 2048-8192, ECC P-256, ECC P-384 .
