Execute Hook

It is used to execute a hook.

Before you begin

Before attempting to submit a request with this API, you must ensure that the following permissions are available:

Service Requests > Action > View all requests
Service Requests > Action > View my requests
Automation > Service Requests > Action > Trigger.

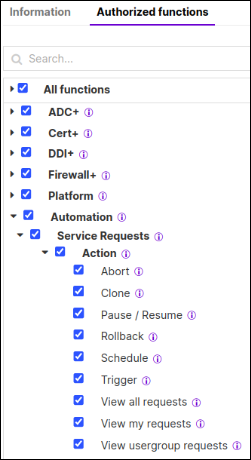

You can check this in the Platform module under IDENTITY > Role > Authorized functions.

Request Structure


Endpoint:	`/execute-hook`
Type:	`POST`
Sample URL:	`https://<IP/HostName/TenantName>:<GWPORT>/avxapi/execute-hook?gwsource=external` To understand the elements of the sample URL, click here.
Headers:
Content-Type:	application/json

Table 1. Input Parameters
Name	Description
sessionID `Header`	(Mandatory) Use session ID retrieved from login API is required if username and password are not provided. Example: "sessionId": "ce7f1a14-2bf9-4e4a-89a8-bc780a255813"
username `Header`	(Mandatory) AppViewX login username is required if sessionId is not provided. Example: "admin"
password `Header`	(Mandatory) AppViewX login password is required if sessionId is not provided.. Example: "AppViewX@123"
Content-Type `Header`	(Mandatory) The parameter should be set to `application/json` to specify the nature of the data in the payload. Example: "application/json"
gwsource `Query`	(Mandatory) Source from which the request is triggered. The values can be: web external
Payload `Body` `map, Object`	(Mandatory) Contains all the params to be sent in the request body for the post request. Type: String

Response Structure

Status Code: 200 OK
Message: Success
Headers:
- Content-Type: application/json

Table 2. Response Parameters
Name	Description
response `Key value pair`	Contains the response object along with the hierarchy of the object mapped in field children.
message `String`	Success message or failure description in case of error.
appStatusCode `String`	Application specific status code for the response. Will be non-null for failure response.
tags `NA`	More info in case of failure response.

Status Codes


HTTP Code	appStatusCode	Message and Remediation
200 OK	NA	Success
500 Internal Error	NA	Invalid Hook Type. Possible Remediation:Check whether the given hook type is either api or script or query.
500 Internal Error	automation-hook-1012	Could not parse/convert Object to Json or Vice versa. Possible Remediation: Check whether the output is either an object or json.
500 Internal Error	automation-hook-1013	Error in rest communication. Possible Remediation: Check whether the details provided for rest call is valid.

Sample Request/Response

Use Case:

To execute a hook.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/execute-hook?gwsource=external

Request Payload

{
    "payload": {
        "hook": {
            "name": "Rest API"
        }
    }
}

Sample Response

{
    "response": {
        "status": "Success",
        "output": {
            "access_token": *******,
            "refresh_token": ******,
            "scope": "useraccount",
            "token_type": "Bearer",
            "expires_in": 1799
        },
        "type": "rest"
    },
    "message": null,
    "appStatusCode": null,
    "tags": null,
    "headers": null
}

Reference

Understanding the sample URL

IP/HostName/TenantName: Replace with the actual IP address, hostname, or tenant name based on the specific configuration in AppViewX.
- IP: A unique identifier assigned to each device connected to a computer network that uses the Internet Protocol for communication
  The IP address will be included in the endpoint URL for an on-prem deployment.
- HostName: A human-readable label assigned to a device (host) on a network
  The hostname will be included in the endpoint URL for an on-prem deployment.
- TenantName: An identifier label for a tenant given to indicate which tenant's data the API request will access/modify
  The tenant name will be included in the endpoint URL for a SaaS deployment.
GWPORT: AppViewX gateway port
A gateway port refers to a network port through which data is sent and received to communicate with a gateway in an on-prem deployment.
Example: 31443
avxapi: Path parameter value (static) that is part of the endpoint's URL
Endpoint: Endpoint of the API, for example: execute-hook
gwsource: Source or origin of a gateway, for example: external.
