Topology View

This view is specifically relevant to primary objects. AppViewX offers a comprehensive, hierarchical structure map of the object, including properties such as ratio, order, load balancing method, and more. In the topology view, users can perform actions like updating the ratio and load balancing methods.

• When the search result contains only one record then it will default render in the topology view.

• When the users click on the primary object's name from the grid view or infrastructure view.

The following are the sample ADC topologies supported in the control center.

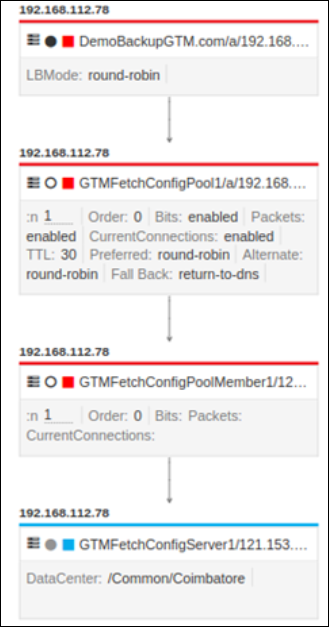

Wide IP Topology

This is the topology structure defined for Global Traffic Manager (GTM) or Global Server Load Balancing (GSLB) objects in AppViewX.

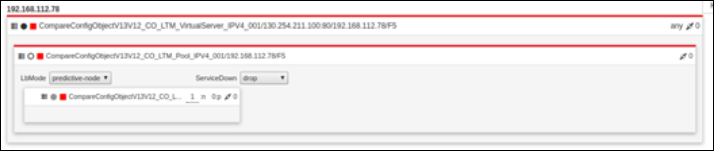

Virtual Server (VIP) Topology

This is the topology structure defined for Local Traffic Manager (LTM) or Server Load Balancing (SLB) objects in AppViewX.

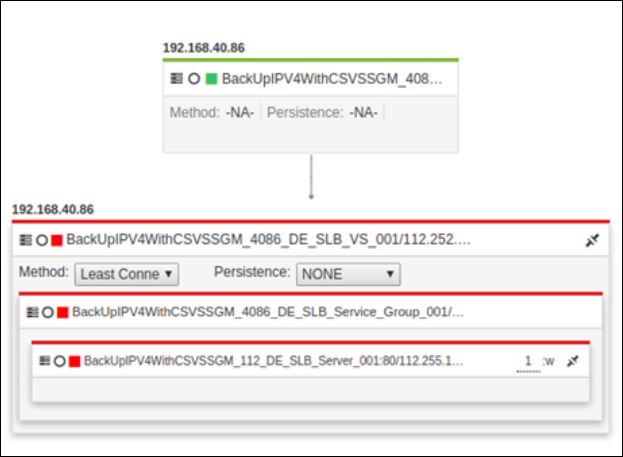

Content Switching (CS) Virtual Server Topology

This is the topology structure of content switching virtual server objects. This object is specific to the Citrix vendor.

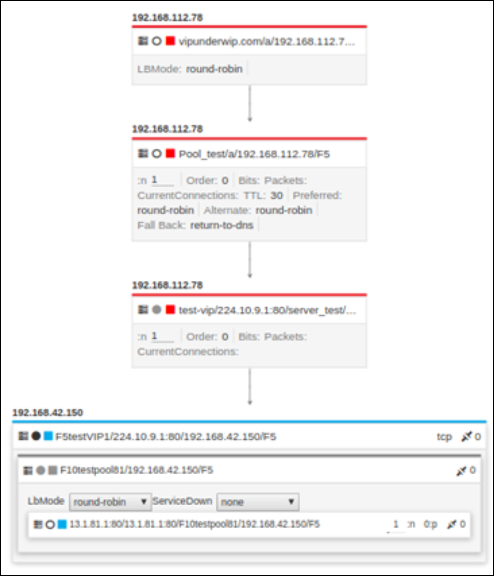

VIP Under Wide IP Topology

This is the topology structure displayed when an LTM/ SLB object is mapped under the GTM/GSLB.

Note: The wide IP and the VIP may belong to the same /different devices of different vendors.

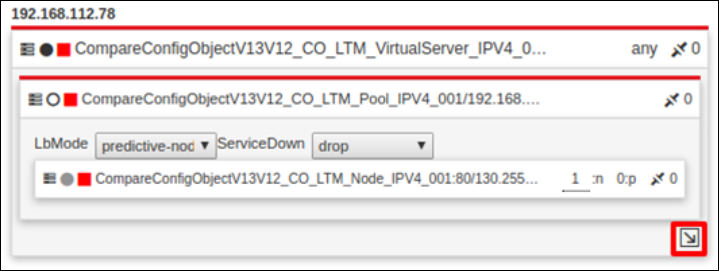

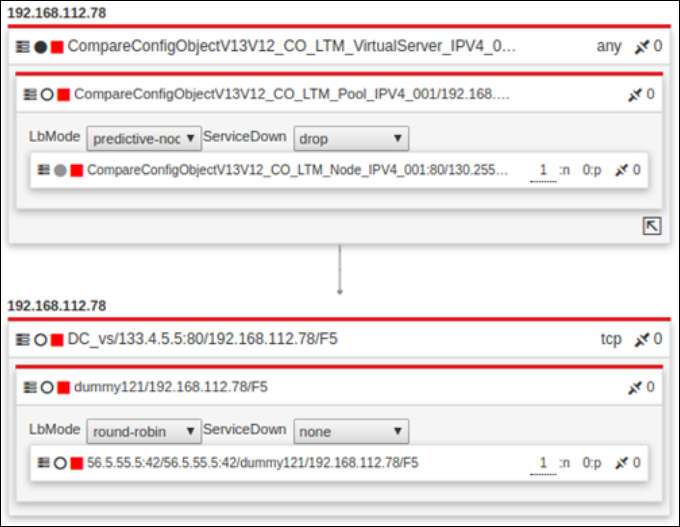

VIP Under VIP Topology

This is the topology structure displayed when an LTM/ SLB object is mapped under another LTM/ SLB object. Click on the down arrow to Expand button to get the VIP under VIP topology.

Note: The VIPs may belong to the same /different devices of different vendors.
