Traffic Statistics Widget

Traffic statistics widget is used to monitor live/historic statistics of objects.

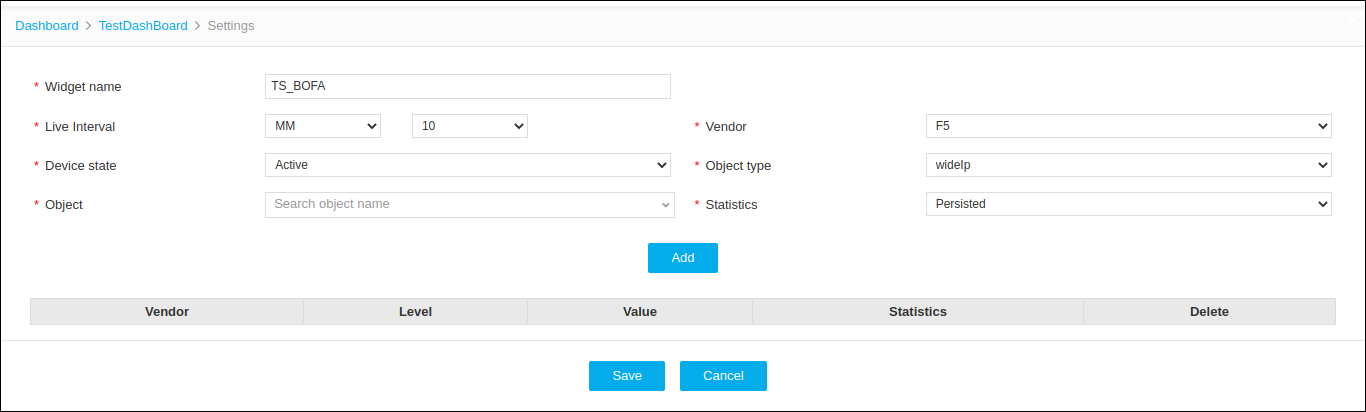

  1. Add objects
    Table 1. Add objects - Field and Decription Table
    Name Description
    *Widget Name

    User defined Name for the Widget

    No special characters are allowed, except '_' , '.' , '-' , '|' , ':'. The name should not start with a special character.
    *Live Interval Set time interval for live statistics collection.
    *Vendor Statistics supported Vendors are listed
    *Device State

    Available options:

    Active : Active devices are listed.

    Standby : Standby devices are listed.

    All : All Managed devices are listed.
    *Object Type Based on the vendor, all supported object types are listed.
    *Object Based on vendor and object type filter available objects are listed.
    *Statistics Based on vendor and object type filter supported statistics parameters are listed.
    Alias Name Custom name for the object name.
    *: Mandatory fields
  2. Provide the required information and click Add.
  3. Click Save.
    By default Live stats are collected. If Insight is enabled then historic statistics are shown.

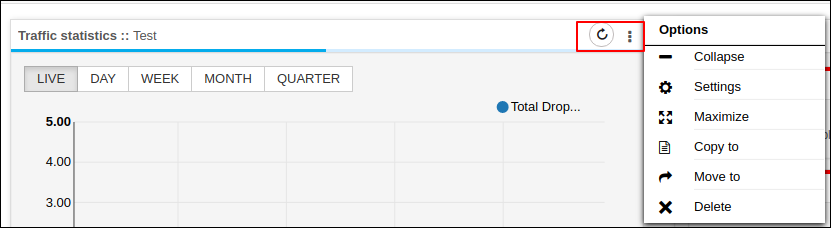

    Widget Setting:

    • Refresh - Refreshing the widget will get live stats for the configured objects.

    • Collapse/Expand - Collapse and expand the widget screen

    • Settings - Configure the settings

    • Maximize - To maximize the widget size

    • Copy to - The widget is copied to another dashboard

    • Move to - The widget is moved to another dashboard.

    • Delete - Delete the widget
