Update Request

Before you begin

Before attempting to submit a request with this API, you must ensure that the following permissions are available:

Service Requests > Action > View all requests
Service Requests > Action > View my requests

You can check this in the Platform module under IDENTITY > Role > Authorized functions.

Request Structure


Endpoint:	`/visualworkflow-update-request`
Type:	`POST`
Sample URL:	`https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-update-request?gwsource=external` To understand the elements of the sample URL, click here.
Headers:
Content-Type:	application/json

Table 1. Input Parameters
Name	Description
sessionID `Header`	(Mandatory) Use session ID retrieved from login API is required if username and password are not provided. Example: "sessionId": "ce7f1a14-2bf9-4e4a-89a8-bc780a255813"
username `Header`	(Mandatory) AppViewX login username is required if sessionId is not provided. Example: "admin"
password `Header`	(Mandatory) AppViewX login password is required if sessionId is not provided.. Example: "AppViewX@123"
Content-Type `Header`	(Mandatory) The parameter should be set to `application/json` to specify the nature of the data in the payload. Example: "application/json"
gwsource `Query`	(Mandatory) Source from which the request is triggered. The values can be: web external
Payload `String`	(Mandatory) Input data for request body in application/json format. For payload details, see Payload section.

Payload


Name	Description
Header Payload
request_id `String`	(Mandatory) The request ID to update the request details. Example: "409"
workorder_id `String`	(Mandatory) The workorder ID to update the request details. Constraints: If there is no workorder in the workflow then the default value will be zero (0). Example: "1"
task_id `String`	(Mandatory) The task ID which will be updated. Example: "reviewComponent_1"
Data Payload
input `Data Payload`	(Mandatory) The input data for the user task. Type: `String`
task_action `Data Payload`	(Mandatory) Action to be performed on the task. Type: `Integer` Constraints: 1 for success case and 2 for reject case. Example: "1"
Input Payload
config `Review Task Payload`	(Mandatory) The prevalidation, implementation, post validation, and rollback configuration for the devices. Type: `Object`
gridData `Grid Task Payload`	(Mandatory) The grid configuration to be updated in the task. Type: `Object`

Task Specific Information

Sample Request/Response - Review Task

Use Case

Update a request with a Review task.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-update-request?gwsource=external

Request Payload

{
  "payload": {
    "header": {
	  "request_id": "936",
      	  "workorder_id": "0",
      	  "task_id" : "reviewComponent_1"
    },
    "data":{
    	"input" : {"config": {
    "implement": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    },
    "prevalidation": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    },
    "postvalidation": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    }
  }
  },

    	"task_action":1
    }
  }
}

Sample Response

{
  "response": {
    "message": "Request submitted to workflow engine for processing workflow request 936",
    "requestId": "936"
  },
  "message": null,
  "appStatusCode": null,
  "tags": null
}

Sample Request/Response - Review Task within a Subflow

Use Case

Update a request with a review palette, where the Review task is within a subflow.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-update-request?gwsource=external

Request Payload

{
  "payload": {
    "header": {
	  "request_id": "936",
      	  "workorder_id": "0",
      	  "task_id" : "reviewComponent_1#subflowid"
    },
    "data":{
    	"input" : {"config": {
    "implement": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    },
    "prevalidation": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    },
    "postvalidation": {
      "deviceList": [
        {
          "deviceName": "192.168.41.101",
          "commands": [
            {
              "command": "<push></push>",
              "deviceName": "",
              "uniqueNumber": 2,
              "sequenceNumber": 0,
              "properties": {
                "sleep": 0
              },
              "type": "push"
            }
          ]
        }
      ]
    }
  }
  },

    	"task_action":1
    }
  }
}

Sample Response

{
  "response": {
    "message": "Request submitted to workflow engine for processing workflow request 936",
    "requestId": "936"
  },
  "message": null,
  "appStatusCode": null,
  "tags": null
}

Grid Task Payload

Service tasks will not have any user input for submitting the request.

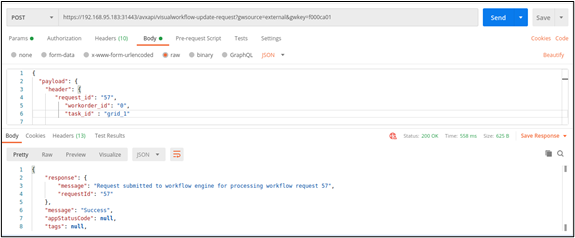

Sample Request/Response - Grid Task

Use Case

Update a request with a Grid task.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-update-request?gwsource=external

Request Payload

{
  "payload": {
	"header": {
  	"request_id": "937",
  	"workorder_id": "0",
  	"task_id": "gridComponent_1"
	},
	"data": {
  	"input": {
    	"gridData": [
      	{
        	"name": "Appviewx",
        	"designation": "Network"
      	},
      	{
        	"name": "ADC",
        	"designation": "Device"
      	}
    	]
  	},
  	"task_action": 1
	}
  }

Sample Response

{
  "response": {
    "message": "Request submitted to workflow engine for processing workflow request 936",
    "requestId": "936"
  },
  "message": null,
  "appStatusCode": null,
  "tags": null
}

Response Structure

Status Code: 200 OK
Message: Success
Headers:
- Content-Type: application/json

Table 2. Response Parameters
Name	Description
response `Key value pair`	Contains the response params for the search object request.
message `String`	Success message or failure description in case of error.
appStatusCode `String`	Application specific status code for the response, will be non-null for failure response.
tags `NA`	More info in case of failure response.
requestId `String`	Unique identifier for the request.
message `String`	The message with the status and request number for the request.

Status Codes


HTTP Status Code	appStatusCode	Message and Remediation
200 OK	NA	Success
400 Bad request	avx-common-028	Invalid/Incorrect payload. Possible Remediation: Check and ensure if a valid value is given in request payload field - input.
404 Not Found	engine-db-011	Request not found. Possible Remediation: Invalid workflow data.
500 Internal Server Error	WORKFLOW_1056	Workflow request already closed. Possible Remediation: Ensure workflow is not closed.
500 Internal Server Error	NA	Internal Server Error. Possible Remediation: Task is already completed. Task is being processed by another user. Service Request is paused. Service Request has been aborted. Service request is closed. Given task is not the right task to be executed with Id.

Reference

Understanding the sample URL

IP/HostName/TenantName: Replace with the actual IP address, hostname, or tenant name based on the specific configuration in AppViewX.
- IP: A unique identifier assigned to each device connected to a computer network that uses the Internet Protocol for communication
  The IP address will be included in the endpoint URL for an on-prem deployment.
- HostName: A human-readable label assigned to a device (host) on a network
  The hostname will be included in the endpoint URL for an on-prem deployment.
- TenantName: An identifier label for a tenant given to indicate which tenant's data the API request will access/modify
  The tenant name will be included in the endpoint URL for a SaaS deployment.
GWPORT: AppViewX gateway port
A gateway port refers to a network port through which data is sent and received to communicate with a gateway in an on-prem deployment.
Example: 31443
avxapi: Path parameter value (static) that is part of the endpoint's URL
Endpoint: Endpoint of the API, for example: execute-hook
gwsource: Source or origin of a gateway, for example: external.
