Upload File

Before you begin

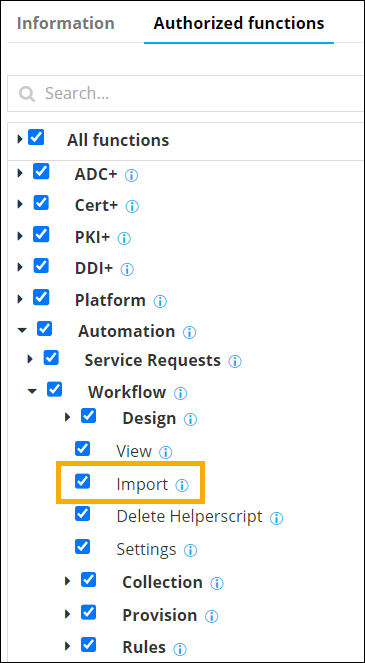

Before attempting to submit a request with this API, you must ensure that the following permissions are available:

You can check this in the Platform module under IDENTITY > Role > Authorized functions.


Endpoint:	`/visualworkflow-file-operation-upload`
Type:	`POST`
Sample URL:	`https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-file-operation-upload?gwsource=external` To understand the elements of the sample URL, click here.
Headers:
Content-Type:	application/json

Table 1. Input Parameters
Name	Description
sessionID `Header`	(Mandatory) Use session ID retrieved from login API is required if username and password are not provided. Example: "sessionId": "ce7f1a14-2bf9-4e4a-89a8-bc780a255813"
username `Header`	(Mandatory) AppViewX login username is required if sessionId is not provided. Example: "admin"
Password `Header`	(Mandatory) AppViewX login password is required if sessionId is not provided.. Example: "AppViewX@123"
Content-Type `Header`	(Mandatory) The parameter should be set to `application/json` to specify the nature of the data in the payload. Example: "application/json"
gwsource `Query`	(Mandatory) Source from which the request is triggered. The values can be: web external
Payload	(Mandatory) Input data for request body in application/json format. For payload details, see Payload section.


Name	Description
fileName `String`	(Mandatory) Name of the file, allowed file formats : img, jpg, jpeg, png, doc, pdf, txt, gif, zip, ppt, pptx, xls, xlsx, csv, p7b, p7c, pfx, p12, der, pem, csr, crt, cer, key, xml. Example: "sample.zip"
uniqueId `String`	(Mandatory) Unique ID for the file being uploaded. Example: "651baff382ca812a7cbf4baa"
fileOverWrite `Boolean`	(Mandatory) Determines whether to overwrite the file being uploaded if a file with the same uniqueId exists. False (Upload file only if a file with same uniqueId not present.) True (Upload file and overwrite if file with same uniqueId is present. If not, then upload the given file.) Example: "false/true"
file `Binary`	(Mandatory) File to be uploaded. Example: "<%File to be uploaded%>"
enableDownloadLimit `Boolean`	Determines whether to enable the download limit. The default value is False False (Download limit will be disabled. File can be download the file any number of times) True (Enable the download limit)
maxDownloadLimit `Integer`	The maximum number of times user is allowed to download the uploaded file. If enableDownloadlimit is true, and no value is provided in the payload then the default value will be 1. The value is limited to a mimimum of 1 and maximum of 10.

Table 2. Response Parameters
Name	Description
response `Key value pair`	Contains the response object along with the hierarchy of the object mapped in field children.
message `String`	Success message or failure description in case of error.
appStatusCode `String`	Application specific status code for the response. Will be non-null for failure response.
tags `NA`	More info in case of failure response.


HTTP Code	appStatusCode	Message and Remediation
200 OK	NA	Success
500 Internal Server Error	WORKFLOW_1000	Invalid input from the client. Possible Remediation: The payload is invalid, check and update it.
500 Internal Server Error	StudioService_080	Error while uploading file.
400 Bad Request	StudioService_078	UniqueId field not found. Possible Remediation: Check and ensure if valid uniqueId is given.
400 Bad Request	StudioService_115	Invalid maxDownloadLimit. Possible Remediation: Ensure the maxDownloadLimit value is between the range 1 to 10.
400 Bad Request	StudioService_077	File content not found. Possible Remediation: Check and ensure for valid file.
400 Bad Request	StudioService_071	Invalid file name. Possible Remediation: Check and ensure if valid fileName is given.
400 Bad Request	StudioService_076	File Name not found. Possible Remediation: Check and ensure if valid fileName is given
400 Bad Request	StudioService_040	Invalid field format Possible Remediation: Check and ensure if valid file and fileName is given.
400 Bad Request	StudioService_075	File with uniqueId already exists.

Use Case 1: Upload file

Upload file to collection.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-file-operation-upload?gwsource=external

Request Payload

{
  "payload": {
	“fileName”:”sample.zip”,
	“uniqueId”:”uniqueId”,
	“fileOverWrite”:false,
	“file”:<%File to be uploaded%>
  }
}

Sample Response

{
  "response": "File Uploaded successfully",
  "message": null,
  "appStatusCode": null,
  "tags": null,
  "headers": null
}

Use Case 2: Overwrite file

Overwrite file: Upload a file and overwrite if a file with the same uniqueID is present in the database.

Request URL

https://<IP/HostName/TenantName>:<GWPORT>/avxapi/visualworkflow-file-operation-upload?gwsource=external

Request Payload

{
  "payload": {
	“fileName”:”sample.zip”,
	“uniqueId”:”uniqueId”,
	“fileOverWrite”:true,
	“file”:<%File to be uploaded%>
  }
}

Sample Response

{
  "response": "File Uploaded successfully",
  "message": "File Uploaded successfully",
  "appStatusCode": null,
  "tags": null,
  "headers": null
}

Understanding the sample URL

IP/HostName/TenantName: Replace with the actual IP address, hostname, or tenant name based on the specific configuration in AppViewX.
- IP: A unique identifier assigned to each device connected to a computer network that uses the Internet Protocol for communication
  The IP address will be included in the endpoint URL for an on-prem deployment.
- HostName: A human-readable label assigned to a device (host) on a network
  The hostname will be included in the endpoint URL for an on-prem deployment.
- TenantName: An identifier label for a tenant given to indicate which tenant's data the API request will access/modify
  The tenant name will be included in the endpoint URL for a SaaS deployment.
GWPORT: AppViewX gateway port
A gateway port refers to a network port through which data is sent and received to communicate with a gateway in an on-prem deployment.
Example: 31443
avxapi: Path parameter value (static) that is part of the endpoint's URL
Endpoint: Endpoint of the API, for example: execute-hook
gwsource: Source or origin of a gateway, for example: external.
