Discovering Playbooks

Once an Ansible instance is configured, playbooks can be discovered from the defined path and reused within the workflow design studio for further automation.
  1. Go to the Workflow page.
  2. Design a workflow.
  3. From the menu on the left, under DevOps, select Ansible > Network Modules > F5.

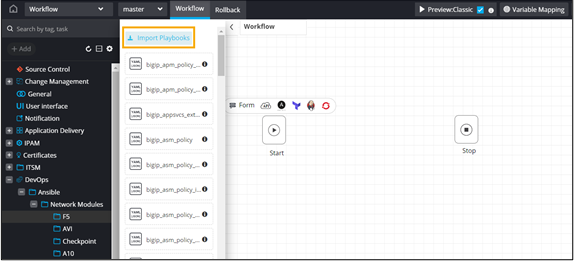

  4. From the F5 folder, click Import Playbooks.
  5. In the Import playbooks window, select import Type.
    • Upload file: Upload playbooks from a local folder.
    • Import playbooks: Discover playbooks from Ansible folder.
  6. Save playbooks to a custom folder.
  7. Drag and drop the playbooks into the workspace.

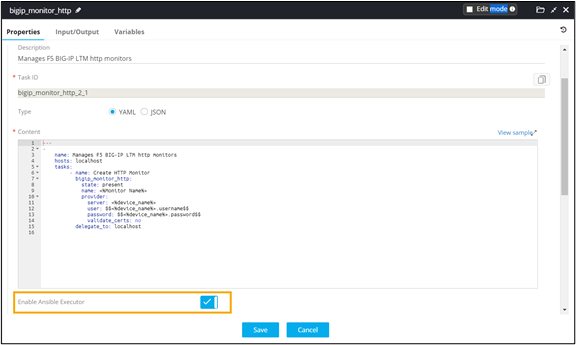

  8. In the task window, under Properties, to enable the Ansible instance, turn on the toggle.
  9. Under Input/Output, enter the Input/Output and Variables details.

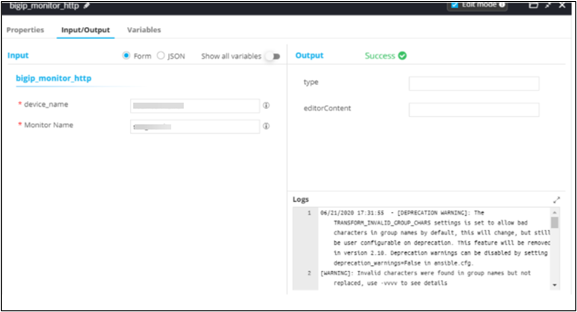

  10. Execute the task to view the execution log.

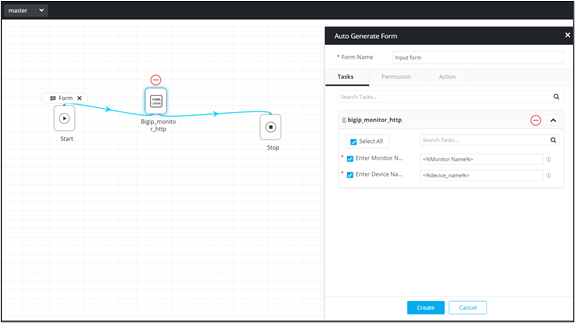

  11. Auto generate a self-service form.
  12. Connect the workflow tasks and enable the workflow.
  13. Trigger the workflow.

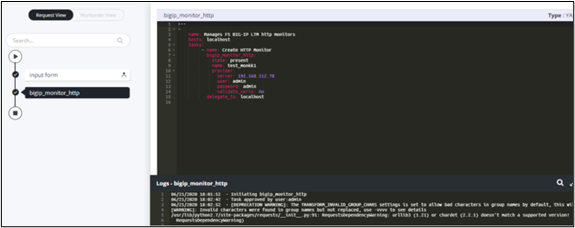

    Workflow is executed.
  14. To view the Request activity log, on the Request :: View/Run page, under the Activity column, click View.
    A Summary of the workflow request execution is displayed.
