Modify GTM Application Services

This workflow modifies GTM Wide-IP along with GTM pool and monitor association.

Pre-requisites

  • The AS3 service has to be enabled in the target F5 device.

  • F5 device list displays only AS3 service enabled and active devices.

To run this workflow,

  1. Go to Menu > Request > View/Run.

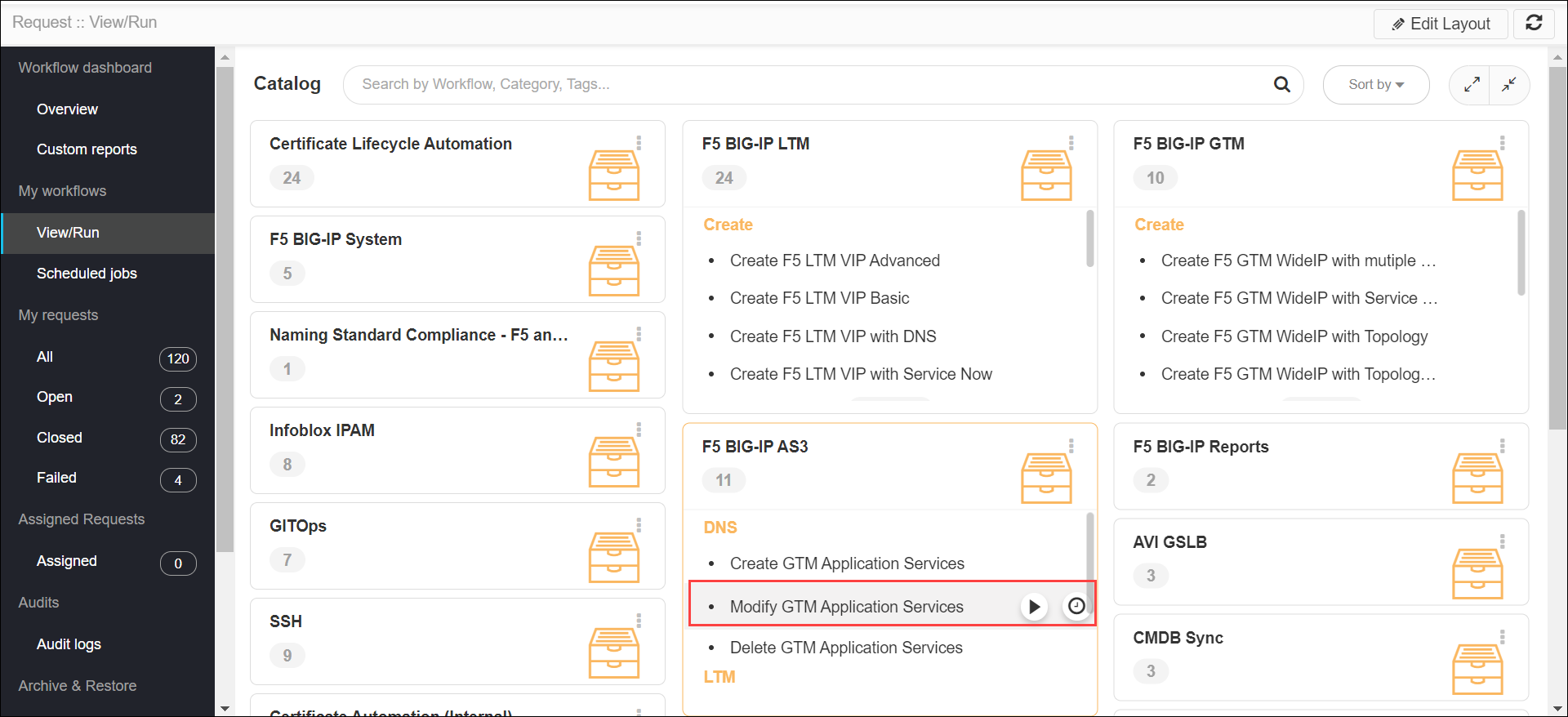

    The Workflow Catalog page appears.
  2. In the Workflow Catalog page, hover over the Modify F5 GTM WideIP workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

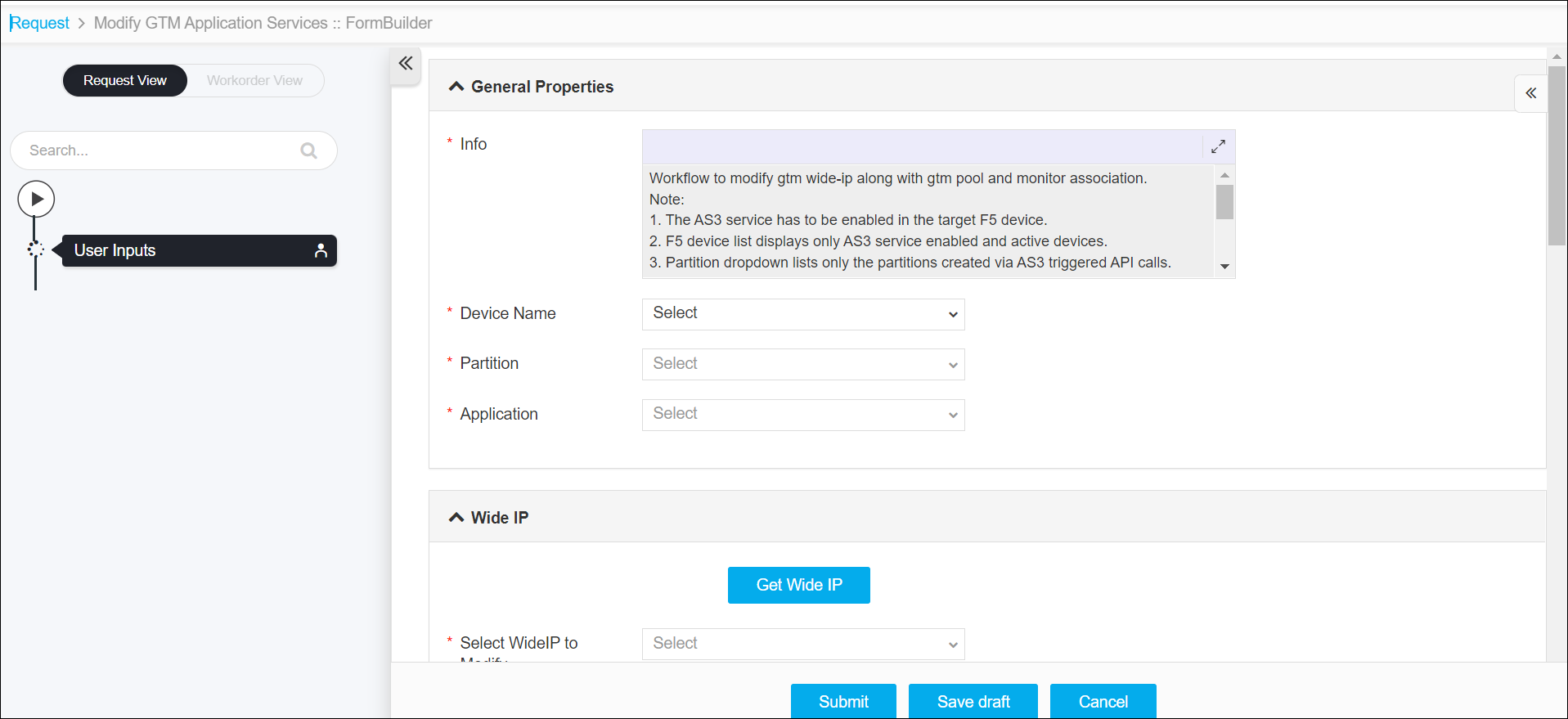

    The Form Input page opens:

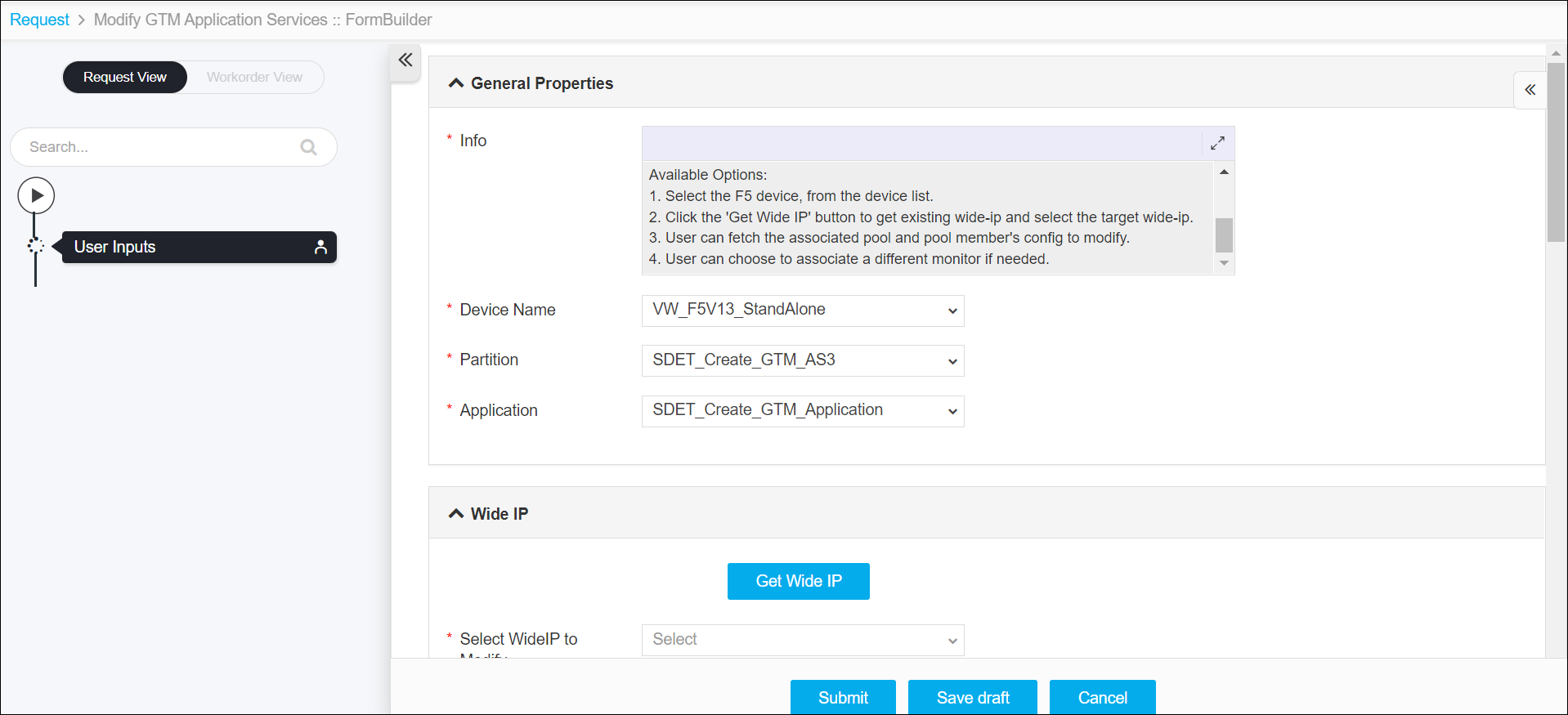

  4. Select the Device Name to modify, and then choose the Partition and Application details of the device that are to be modified.

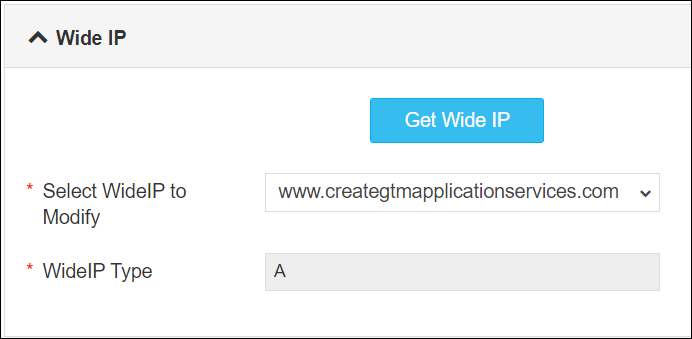

  5. Click the Get Wide IP button to get an existing Wide-IP and select the target Wide-IP.

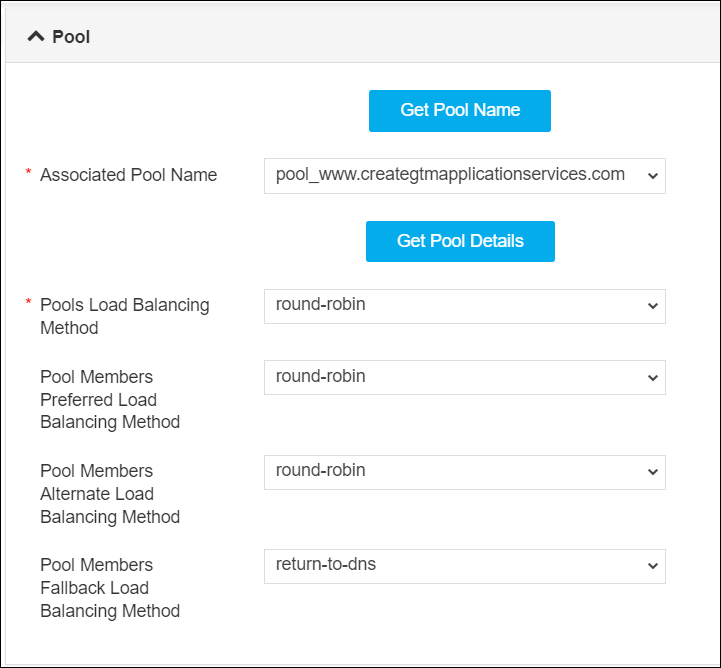

  6. Fetch the associated pool by clicking the Get Pool Name button, and then fetch the pool's details by clicking the Get Pool Details button to modify.

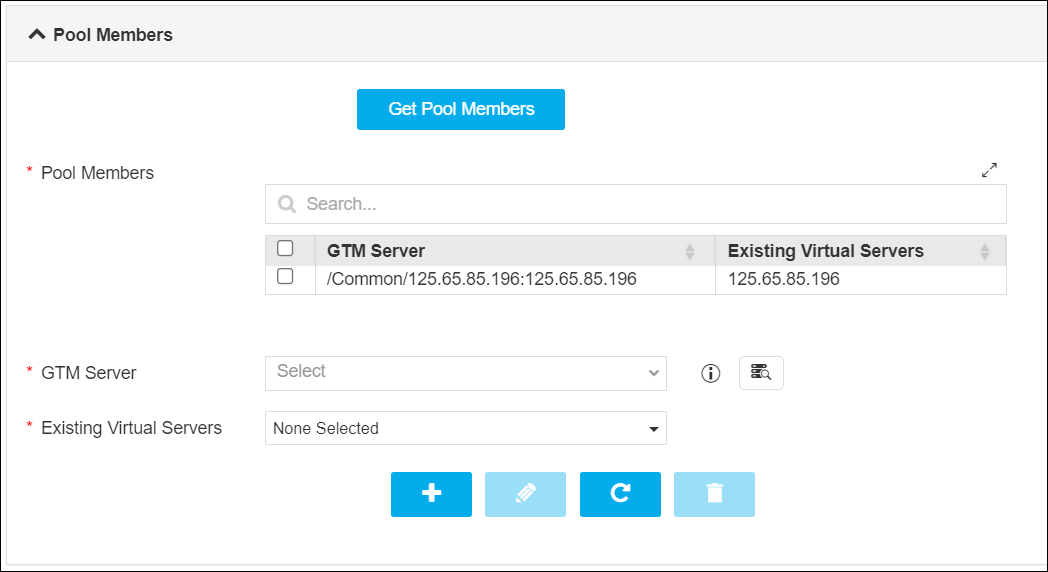

  7. Fetch the pool member's configuration by clicking the Get Pool Members button to modify.
  8. Update the necessary details, and then click the Submit button.
    The validation starts automatically stage.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.

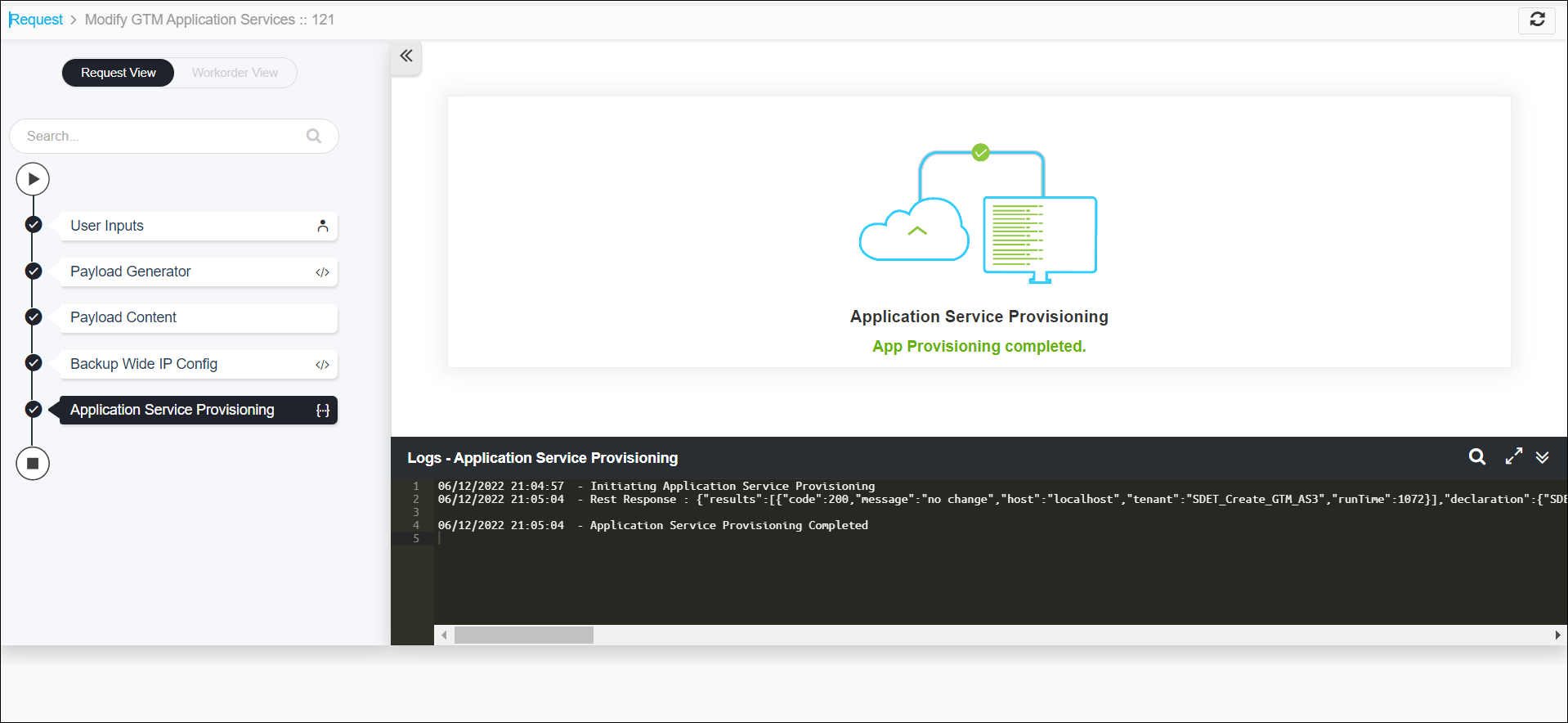

  9. The workflow is created and GTM Wide-IP along with GTM pool and monitor association are updated.
    Note: The stages of the request are shown in the left side of the screen. To view a particular stage of the request, click the respective stage.
