Pushing Intermediate Certificate to a Device

In the case of intermediate CA certificates or trust certificate renewal, the same should be pushed to the device in order to update the trust chain for the SSL communication. Otherwise, the SSL handshake will fail.

To push an intermediate certificate,

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.

    The left navigation pane appears.

  3. Click CERT+.

    The CERT+ left navigation pane appears.

  4. Expand CERTIFICATE ACTION.

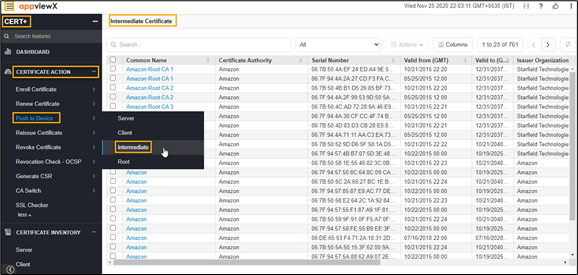

  5. Select Push to Device, and then Intermediate.

    The Intermediate Certificate page appears.

  6. In the Certificates list view, click the Common Name of a certificate you want to add a connector to.

    The holistic view appears.

  7. Click Add Connector in the holistic view page.

    The Add Connector page appears.

  8. In the General Information section, select/enter the details as follows.
    The following table describes the options available in the general information section:
    Fields Description
    Category Select the category from the dropdown list.
    Connector Name Enter the desired connector name.
    Vendor Select the vendor from the dropdown list.
    Description

    Enter a description in this field.

    Note: You can enter a maximum of 2000 words in the field.
  9. In the SSL Template section, select a device from the Available devices and click the right arrow mark to move the device to the Selected devices list.
