What is Windows Auto-Enrollment Proxy?

Salient Features

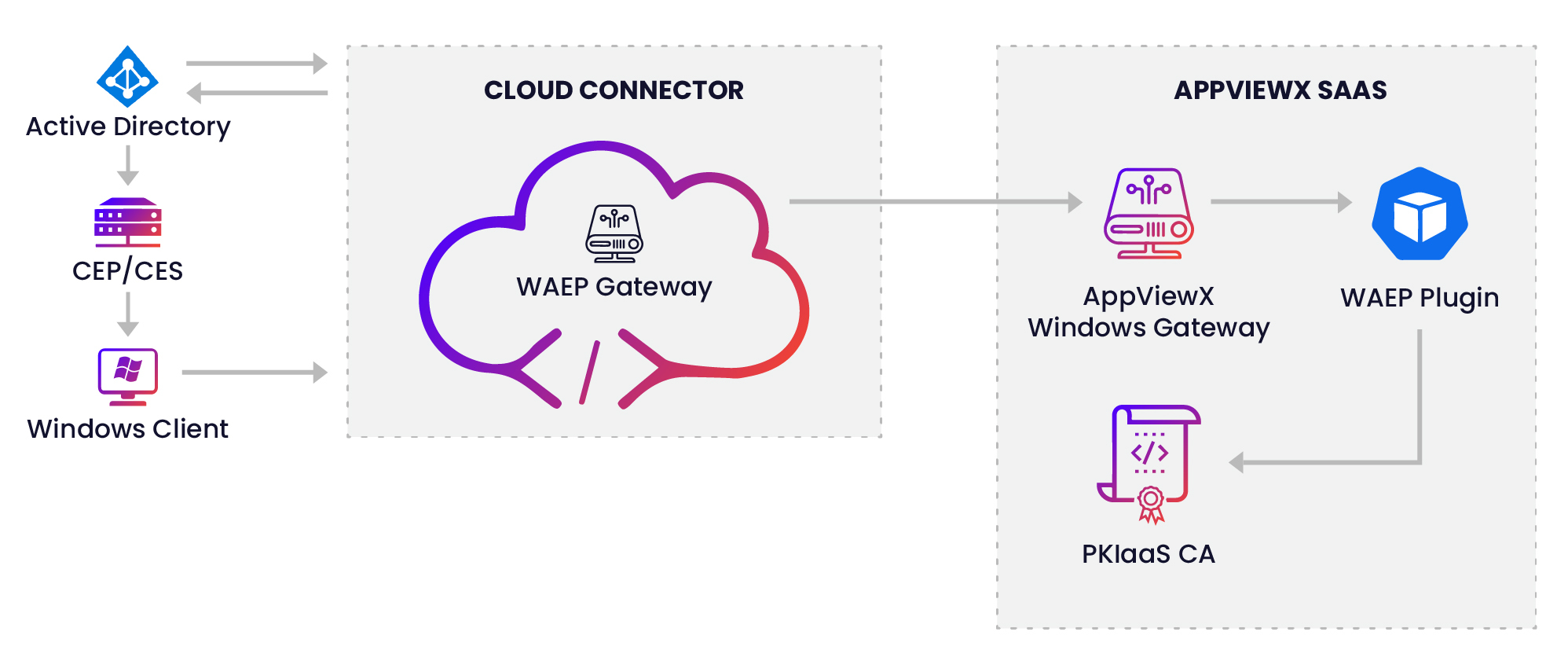

How WAEP works

1. The Certificate Enrollment Policy (CEP) server publishes the certificate template information, the CA information, and the enrollment link to all Windows clients and users.
2. The Windows client sends the request directly to the Cloud Connector (CC) via Certificate Enrollment Web Service (CES) for enrolling a certificate.
3. The CC queries for the agent settings along with other details such as AD configuration and global catalog server configuration. With the CC IP address and the port making a unique combination, there will be only one agent settings based on this combination of business keys.
4. The WAEP module then fires an LDAP query using the agent settings fetched. It fetches the details from the global catalog servers and constructs the request.
5. The CC then forwards the CSR payload to the PKIaaS for issuing a signed certificate.
6. The signed response is then routed back to the client through the CC.

Prerequisites

1. Establish trust for all entities in the environment.
   • Trust anchor certificates to be published to all domain members from group policy -OR- you can run the following commands from AD:
     • For issuing CA:

       certutil –dspublish –f <PathToCertFile.cer> SubCA

     • For root CA:

       certutil –dspublish –f <PathToCertFile.cer> RootCA

2. Set up TLS connection in the AppViewX CC server.
   • Enable the ACME service during the setup of CC for WAEP to function.
   • The AppViewX CC server must be configured with certificate TLS to handle connection between Windows clients and the CC server.
   • The AppViewX CC server must be made available to use the Lift & Shift feature for SaaS deployments.

     The CC ships with a self-signed certificate but ensure to replace the default self-signed certificate with a signed certificate. You can choose to have the signed certificate from a trusted third-party CA depending on your organizational policies.

3. Ensure there is Internet access or provision to download the PKI CRL.
4. Create a service account: A domain service account that belongs to the Cert Publishers group and with access delegated for the policy server and the AD server. The service account must be a part of the local admin group in CEP/CES server. See Create Service Account.
5. For the Lift & Shift feature to work, enable the WinRM service on the policy server (CEP/CES) and the AD servers configured in WAEP for global fetch configuration and publication of templates.

   To configure WinRM service (Applicable only for automatic upload of templates):

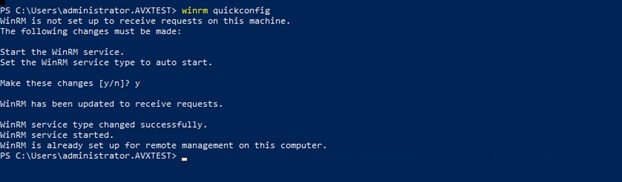

   1. Run winrm quickconfig on the PowerShell window as an administrator.
   2. Type y when prompted to start the WinRM service.



      The service account, for example: <waep_kerberos>, must be part of the Remote Management Users group.

   3. To validate if the Remote Management Users group has permissions to execute the scripts, run the below command on the AD server and the policy server:

      PS C:\Users\administrator.AVXTEST> Set-PSSessionConfiguration -ShowSecurityDescriptorUI -Name Microsoft.PowerShell

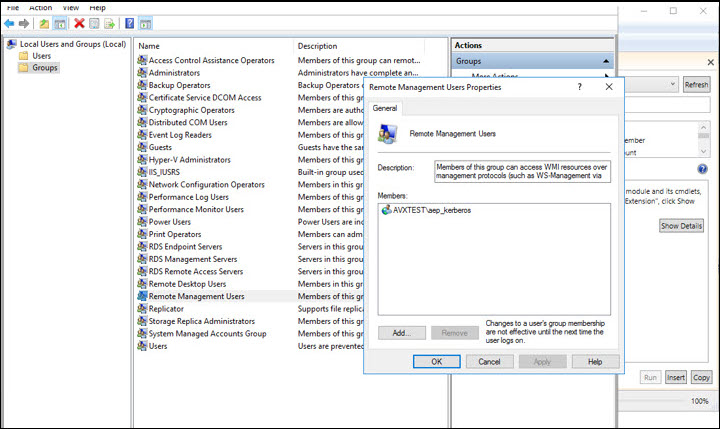

   4. Add the service account (aep_kerberos) to the Remote Management Users group.

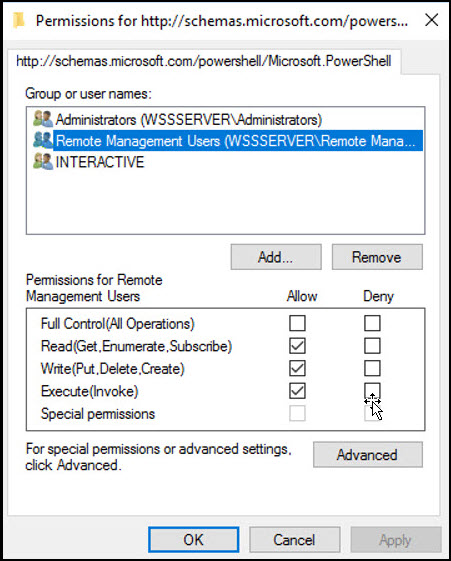

   5. Assign Read,Write, and Execute permissions to the group.


   6. Enable Credential Security Support Provider (CredSSP) authentication on the policy server (CEP/CES) and the AD servers by running the following command:

      Enable-WSManCredSSP -Role Server

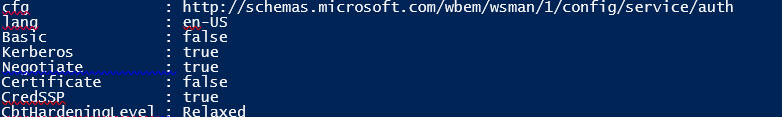

   7. Once the server role is enabled, ensure the parameters, Kerberos, Negotiate, CredSSP, are set to true and CbtHardingLevel is set to Relaxed as shown.


   8. Repeat the process to enable CredSSP authentication on the client side by running the following command:

      PS C:\Users\Administrator> Enable-WSManCredSSP -Role Client

      Note:

      • Ensure that the parameters, Kerberos, Negotiate, CredSSP, are set to true and CbtHardingLevel is set to Relaxed.
      • If Kerberos is not set to true, then run the following command:

        winrm set winrm/config/Service/auth '@{Kerberos="true"}'

      • If CredSSP is not set to true, then run the following command:

        winrm set winrm/config/Service/auth '@{CredSSP="true"}'

   9. Add the policy server to the trusted hosts list by running the following command:

      winrm s winrm/config/client '@{TrustedHosts="CSSSERVER"}'

      Note: Here CSSSERVER is the hostname for policy server. Repeat the step for the AD server.

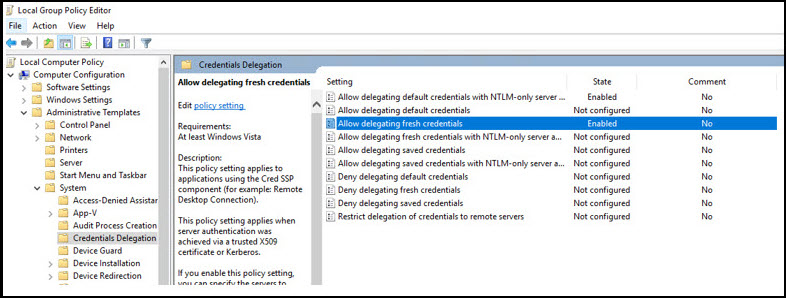

   10. Allow credential delegation via the group policy editor.

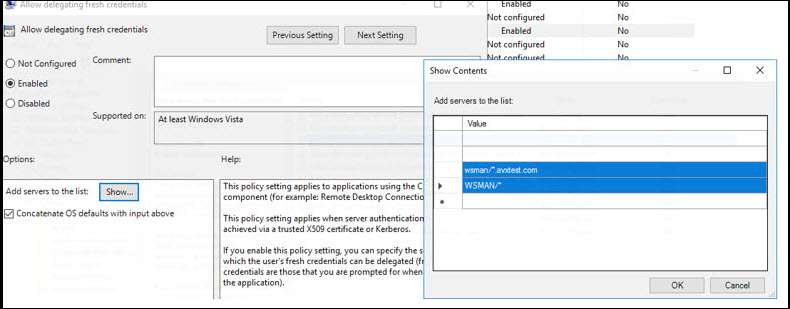

       Note: Replace *.avxtest.com with your domain name.

       Repeat the same procedure for the remote server, which would be the policy server.

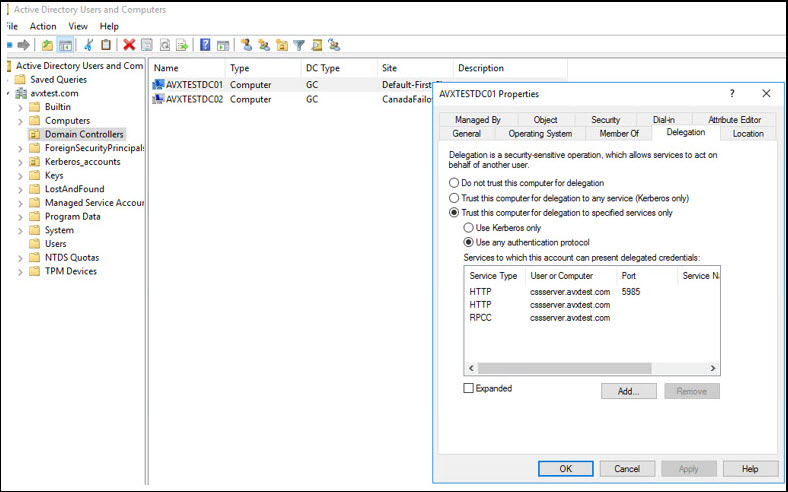

   11. Ensure that delegation is provided to the AD server that will be used for the connection.

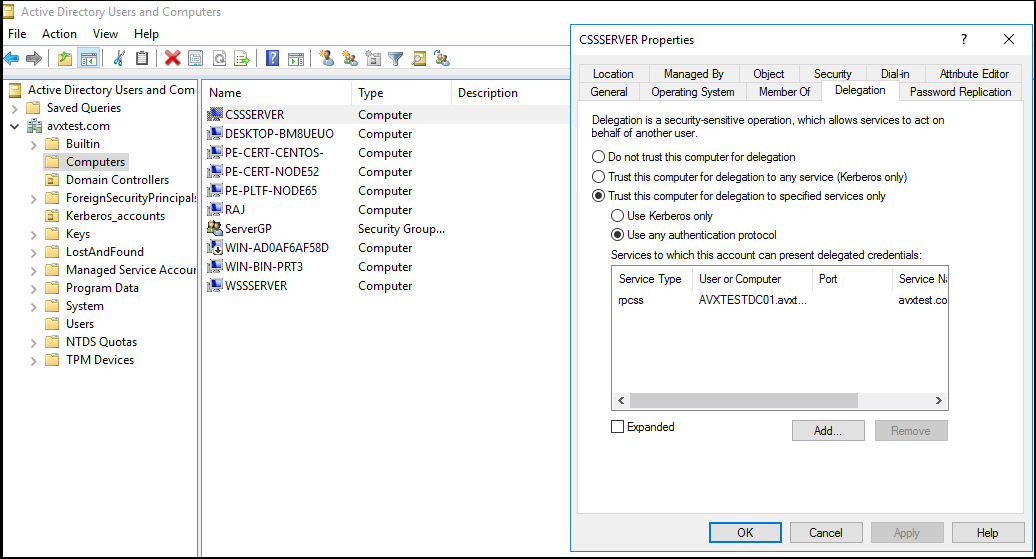

       Similarly allow delegation for the policy server as shown:


       Note: For more information, refer to https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.core/about/about_remote_troubleshooting?view=powershell-7.3
