Configuring AppViewX PKIaaS Certificate Authority

To configure AppViewX PKIaaS Certificate Authority:
  1. Go to (Menu) icon > CERT+ > Administration > Certificate Authority.

    The Certificate Authority page appears.

  2. Select AppViewX PKIaaS from the list on the LHS of the panel and click Configure Now.

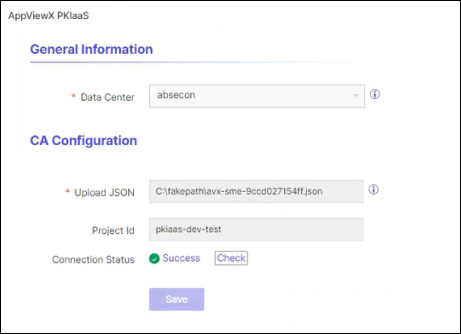

  3. Enter the following fields:
    Table 1. Field Description for AppViewX PKIaaS CA page
    Field Description
    General Information
    *Data Center Select the data center through which the communication must happen.
    CA Configuration
    *Upload JSON JSON credentials will be provided by AppViewX.
    Project Id This is automatically populated.
    Note: Fields indicated with red asterisk (*) symbol are mandatory.

    The uploaded credentials are validated for required permissions. Upon successful validation, the credentials are used for rotating the keys and new key is used for the CA creation.

  4. Click Check to see if the connection is successful.

    CA communication is validated and the connection status is shown as either Success or Failure.

  5. Click Save.
