Create a Dashboard

To create a dashboard:
  1. Click and select Dashboard.
  2. If this is the first dashboard you are creating in the system, click Create Dashboard in the center of the screen. If you have already created at least one dashboard, click on the top-right.

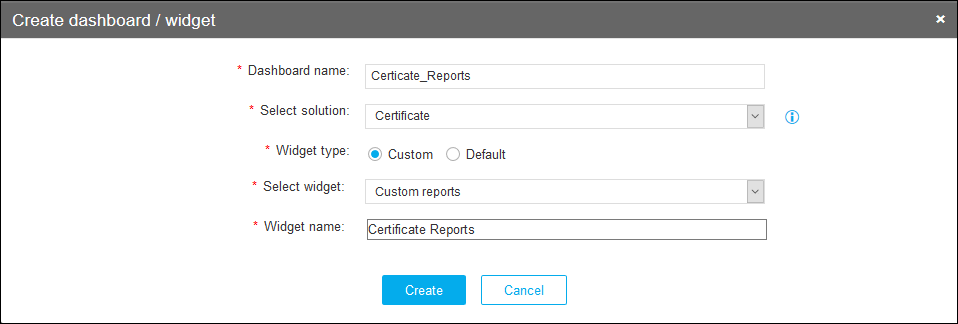

  3. In the Create Dashboard / widget pop up window, enter a name for the new dashboard.
    Note: The name cannot have spaces in it.
  4. Select a solution from the Select Solution dropdown to which you want the widget to be created: ADC, Firewall, Certificate, SSH or WAF. Select the solution from the dropdown to which you want the corresponding widgets to be managed: Certificate
  5. Select the Widget Type as Custom or Default.
  6. (Applicable only for ADC solution) If the Custom radio button is selected in Step 5, then choose any one of the below options from the Select Widget dropdown:
    • Application view – Allows you to group the service objects of a single application. The widget displays the health of these objects and the number of current connections that the services are receiving.
    • Traffic statistics – Displays a chart showing live and historic performance statistics for individual device objects.
    • Script execution – Saves script files on a local machine and provides easy access to maintain and execute script commands from within the widget.
    • Traffic grid – Allows you to monitor and control the Traffic Percentage of the Applications across data centers. The status, state, and statistics for applications can be viewed through this widget.
    • Class management – Allows you to view and modify the classes associated with iRules.
    • HeatMap – Allows you to view statistics for managed, failed, and unresolved devices or device groups.
  7. If the default radio button is selected in Step 5, select the default widgets you want to manage/monitor in the custom dashboard.
  8. Enter a name for the new widget that you will be creating on the dashboard.
  9. Click Create.
    The Settings screen for the new dashboard/widget appears. The contents of the Settings screen vary depending on the type of widget you are adding to your new dashboard.
