Testing EST Enrollment by using CURL

After the successful verification, create a test folder in the Linux client machine.

Copy the <est_auth.crt> and <est_auth.key> from the common share directory https://drive.google.com/drive/folders/1K4G5L8yB5TOvvLCAPjNC3lQWBWtlWua0

Generate the CSR in the same folder with <openssl> command.

openssl req -new -newkey rsa:2048 -nodes -keyout rsakey.key -out
                        req.p10

Trigger GetCA certs request using CURL command (update server IP and Pathseg depends on Server Config).

Make sure that the authentication CERT and Key is present in same location <curl -k --cert ./est_auth.crt --key ./est_auth.key https://<server_ip>:30021/.well-known/est/cacerts -o cacert.p7. You will receive <cacert.p7> file with Configured CA Certificate in Step 9.

Convert the received CA Certificate to pem

<openssl base64 -d -in
                        cacert.p7 | openssl pkcs7 -inform DER -outform PEM -print_certs -out
                        cacert.pem>

.

Trigger enrollment request by using CURL and make sure that the authentication Cert, Key, and CSR are present in same location.

<curl -k --cert ./est_auth.crt --key ./est_auth.key
                        https://192.168.205.29:30021/.well-known/est/simpleenroll -o
                        ./signed_cert.p7 --data-binary @req.p10 -H "Content-Type:
                        application/pkcs10" --dump-header ./resp.hdr>

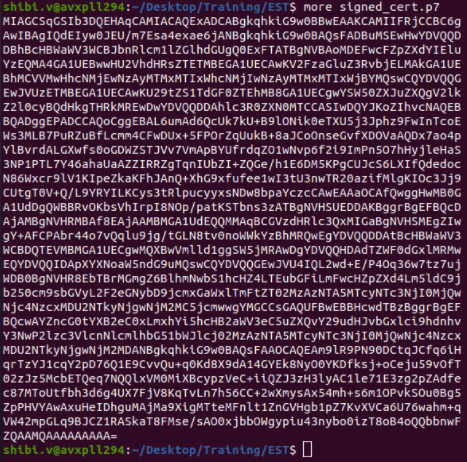

Verify the content of <signed_cert.p7>.

Convert the enrolled p7 Certificate in to pem:

<openssl base64 -d -in signed_cert.p7 | openssl pkcs7 -inform DER -outform PEM -print_certs -out signed_cert.pem>

Note: Make sure that you have received <cacert.p7> file with Configured CA Certificate.
