Downloading Server Certificates Via Holistic View

Server certificates can be downloaded via holistic view only one certificate at a time in multiple formats as PEM, DER, PKCS#7, PKCS#12, and JKS. PKCS#12 and JKS can be downloaded only with the password-protected certificate.

Steps to download server certificate,

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.
    The left navigation pane appears.
  3. Click CERT+.
    The CERT+ left navigation pane appears.
  4. Expand CERTIFICATE INVENTORY.

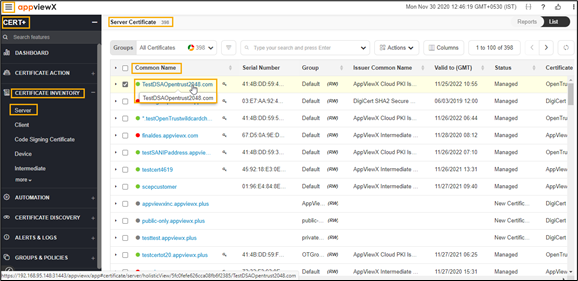

  5. Click Server.
    The Server Certificate page appears.
  6. In the Common Name column certificate list, select the desired certificate(s) that you want to download the CA.
    The holistic view appears.

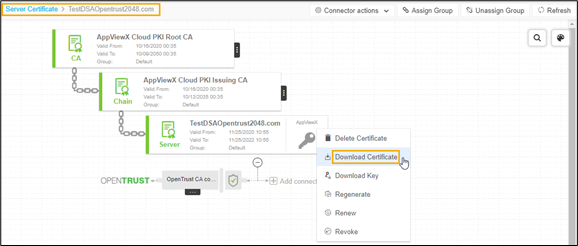

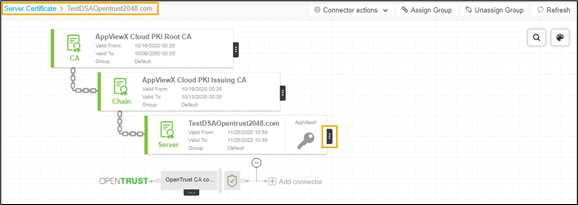

  7. Click the vertical ellipse icon in the holistic view, and then select Download Certificate from the list.
    The Download Certificate pop-up window appears.
    1. Select the file format from the Certificate type dropdown list.
    2. For PEM and DER certificate types, you can use the toggle button to On/Off in the Download Truststore Certificates option along with end certificates.
  8. Click Yes.
    The certificate(s) is downloaded to your local machine.
