Configuring Threshold Alert Notification

AppViewX allows near real-time monitoring of Critical Applications/Devices that breaches statistical thresholds like CPU, Memory, Number of requests, etc. Customize the threshold limits as per your organization, monitor Apps on real-time, and get notified via Email or SNMP.

To configure a Threshold alert notification,

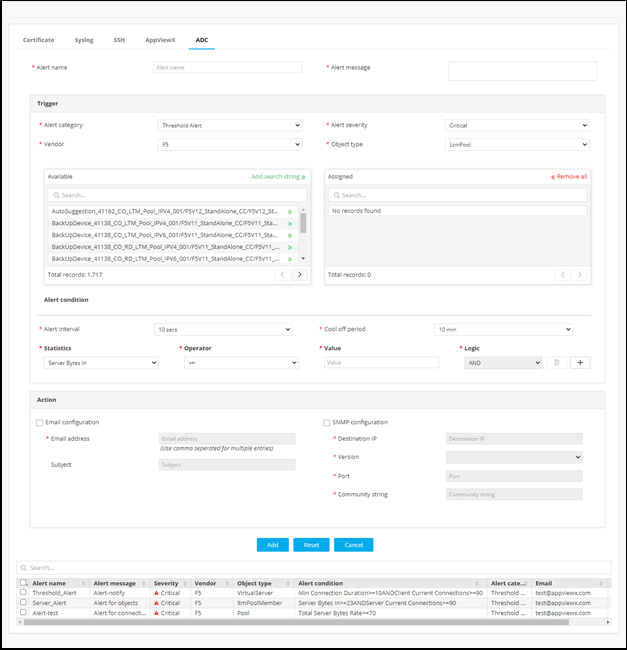

  1. Go to Menu > ADC+ > ALERTS & LOGS > Alerts.
  2. Click (Settings) icon, and then ADC.
  3. Enter an Alert Name, Message, and Category as Threshold.
  4. Configure the critical Devices/Applications that need to be monitored.
  5. Set an Alert monitoring interval from 10 secs to 60 secs that fetches the run time data from the device to validate against the threshold.
  6. Set a Cool off period like 10, 20, or 30 mins. The cool-off period prevents the user from getting bombarded with notification alerts for the same event.
  7. Configure the Statistics that need to be monitored and set a value ie >=,<=,<,>,==.
  8. Create an Alert with multiple conditions with Logic AND and OR by clicking .
  9. Define a Severity for your event based on the threshold conditions (Critical, Fatal, Major or Minor).
  10. Configure the notification type as Email or SNMP.
  11. Configure multiple Alerts as needed and Add them to the Grid. The configured Alerts could be modified or deleted anytime by selecting the Alert from the grid.
  12. Following are some of the alerts that can be configured:

    • A Virtual server’s Current connection exceeded 100

    • A critical Device’s CPU breaches 60

    • A server’s Number of Requests is lesser than expected.

  13. The configured events will be notified to the end user via Email or SNMP and as well captured in the Alerts inventory for tracking.
