Import a Dashboard

To import a dashboard, the contents must be zipped and must contain single checksum .text files and/or .json files. This functionality is applicable only for the Dashboard that contains the Application View widget.

To import a dashboard into AppViewX:

  1. Go to Menu > ADC+ > TRAFFIC MANAGEMENT > Dashboards.
  2. Go to the top-level of the Dashboard module by clicking the Dashboard link in the breadcrumb field or click the (Dashboard inventory) button in the Command bar..

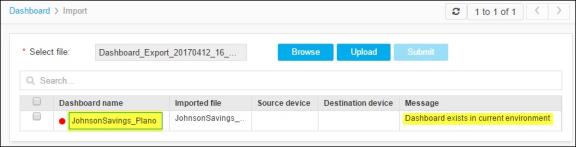

  3. Click the (Import) button in the Command bar at the top of the screen. The Import screen appears.
  4. Click the Browse button and then locate and select the zip file you are importing.
  5. Click Upload.
    The import function then checks to make sure the imported file and filename are valid.
  6. After the zip file is successfully uploaded, select the checkbox in the column beside the dashboard name.
    Note: If the dashboard has the same name as an existing dashboard, use the Dashboard name field on the Import screen to enter a new name for the dashboard you are importing.
  7. Click Submit.
  8. On the Confirmation screen that appears, click Proceed.
  9. Click the Dashboard link in the breadcrumb field to return to the top-level Dashboard screen.
    The new dashboard appears in the list.
