Manage F5 LTM Pool Members

This workflow selects VIP in a device and modifies (add/delete) associated pool members.

To run this workflow,

  1. Go to Menu > Request > View/Run.

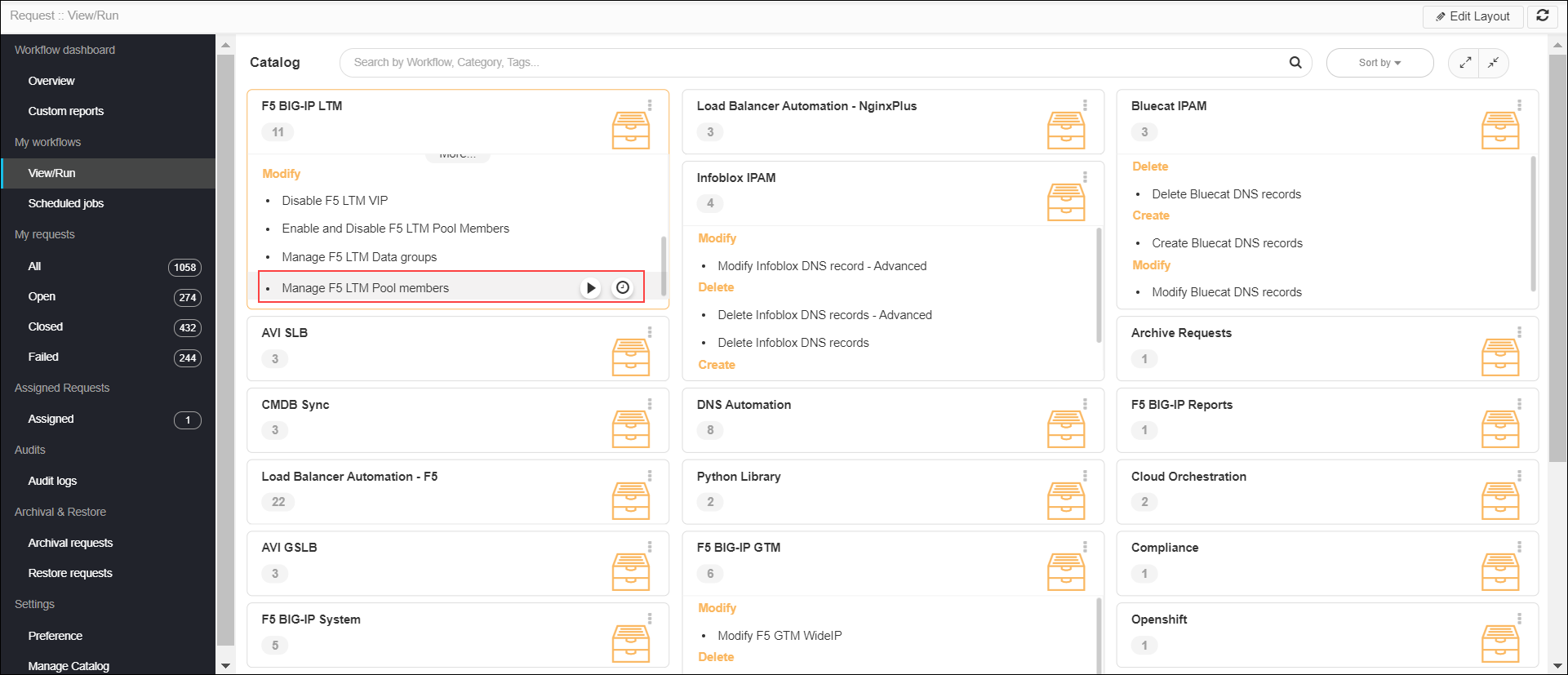

    The Workflow Catalog page appears.
  2. In the Workflow Catalog page, you hover over the Manage F5 LTM Pool members workflow.
    The Run and Schedule buttons are shown.

  3. Click the Run button.

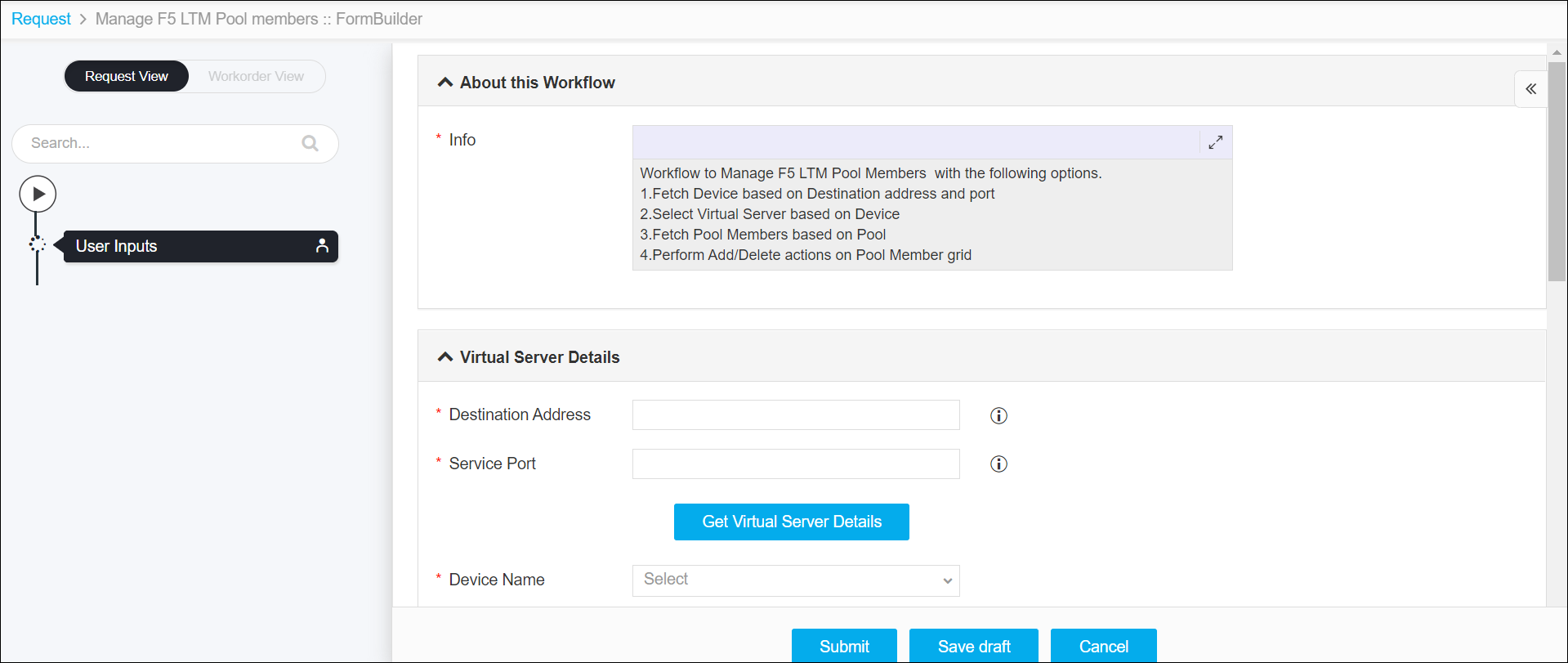

    The Form Input page opens:

  4. Enter the valid IP address and port number in the Destination Address and Service Port field in the Virtual Server Details section of Form Input.

  5. Click the Get Virtual Server Details button.
    The devices are loaded.

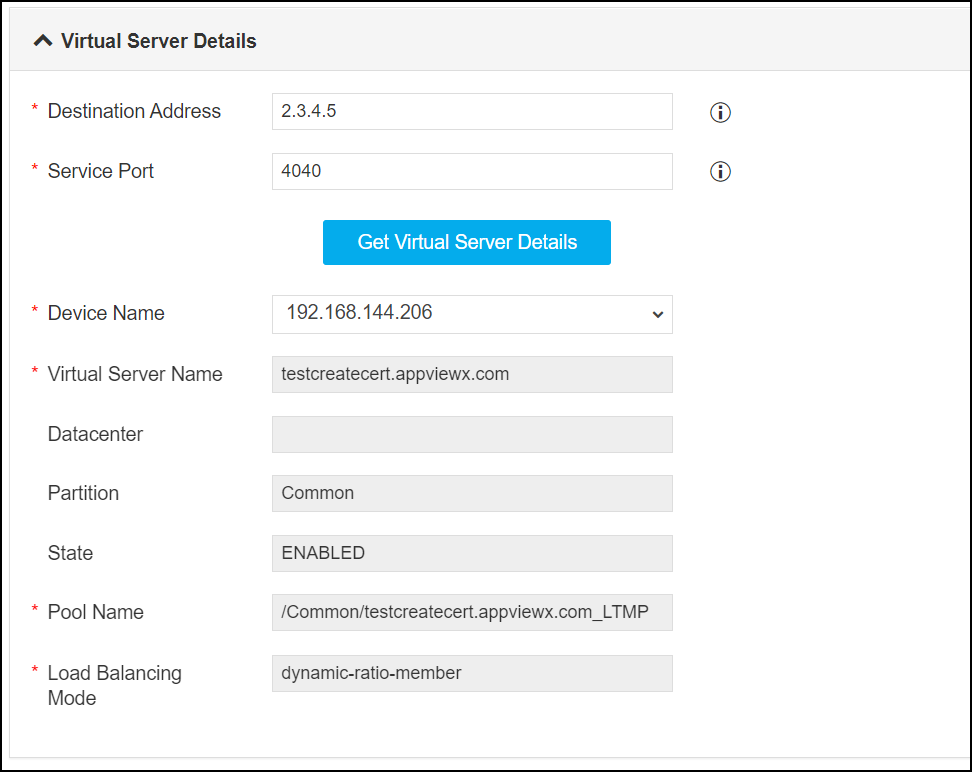

  6. Select the device name from the Device Name drop-down option. The other details of the device are retrieved automatically.

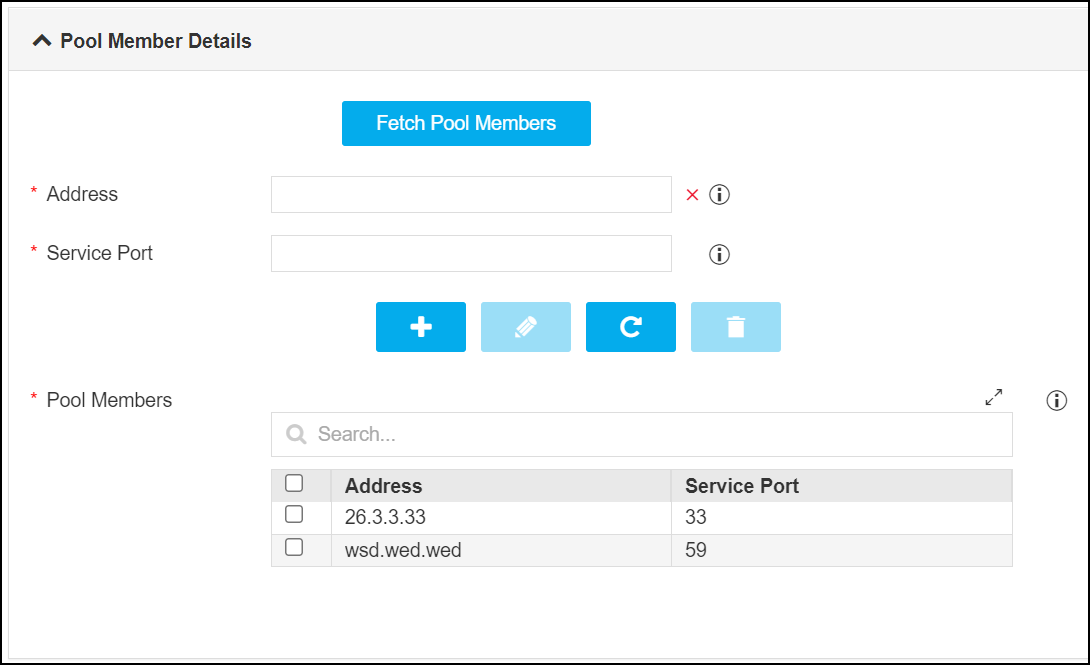

  7. Click the Fetch Pool Members button to get the pool member of the selected device or manually enter the pool member details.

  8. Click the Submit button.
    The Confirmation popup opens.
    Note:

    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.

    • If you want to cancel this form, click the Cancel button.

  9. Click Ok to submit the form.
    The pre-validation starts automatically and reaches the Review stage.

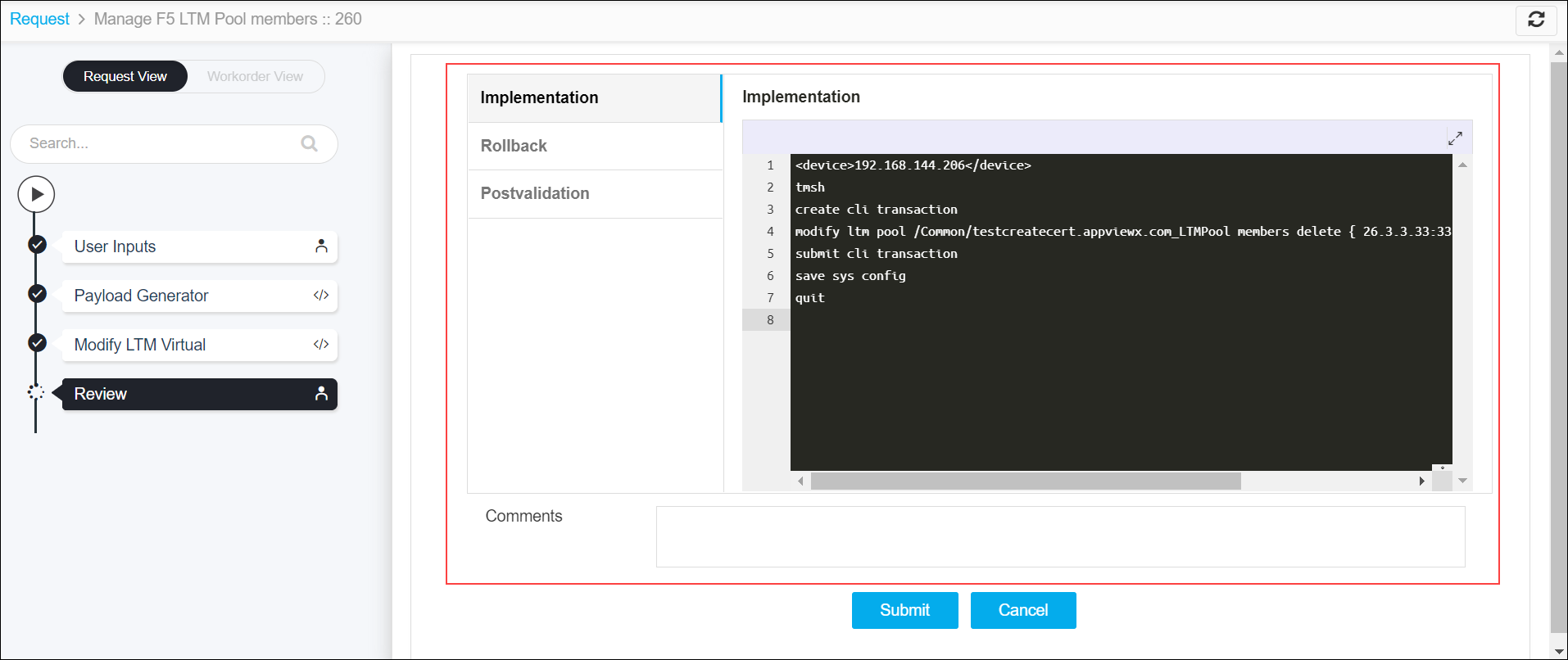

  10. Review the input data under the implementation, rollback, and postvalidation tabs:

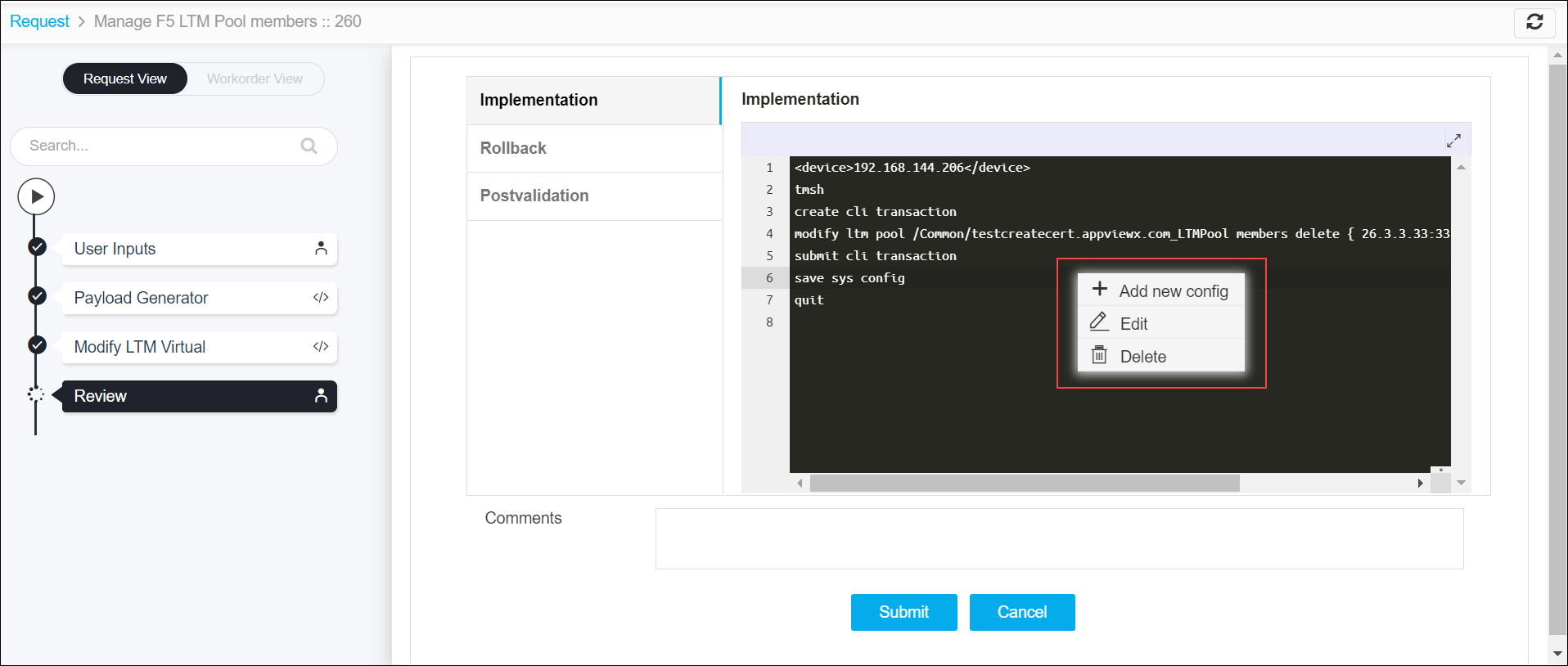

  11. (Optional) If you need to change any data at this stage, you can update by clicking the right-side of the mouse on the data.
  12. After the review, click the Submit button.
    The Confirmation popup opens.
    Note: To stop running the workflow creation, click Cancel.
  13. Click Ok to continue the workflow creation.
    It takes a while to complete the post-validation.

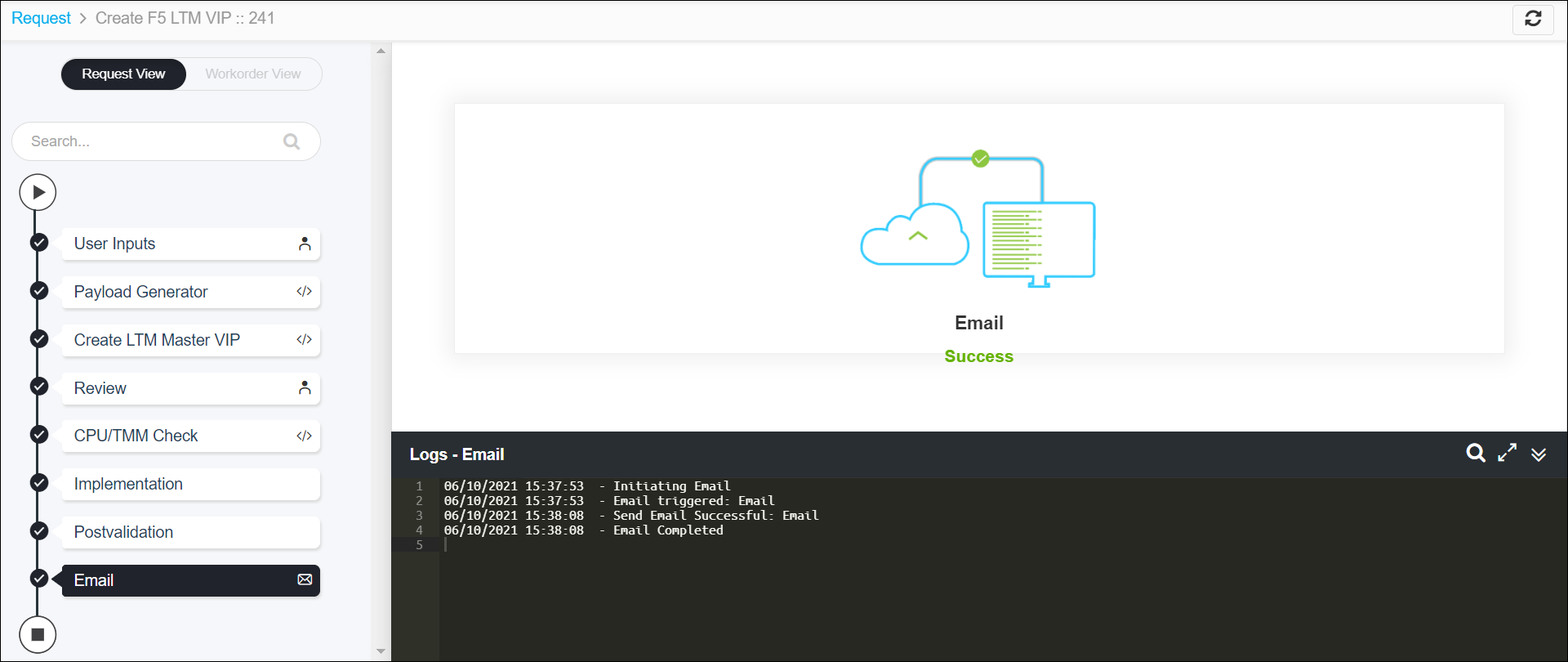

  14. After the successful post-validation, the workflow is created and the email triggered to the configured email IDs.
    Note: The validation stages are shown in the left side of the screen. To view any validation stage, click on the respective stage.
