Modify F5 LTM VIP Advanced

This workflow modifies VIP along with its associated objects(Pool, Monitor, IRule, Profiles, Persistence, Snatpool)

To run this workflow,

  1. Go to Menu > Request > View/Run.

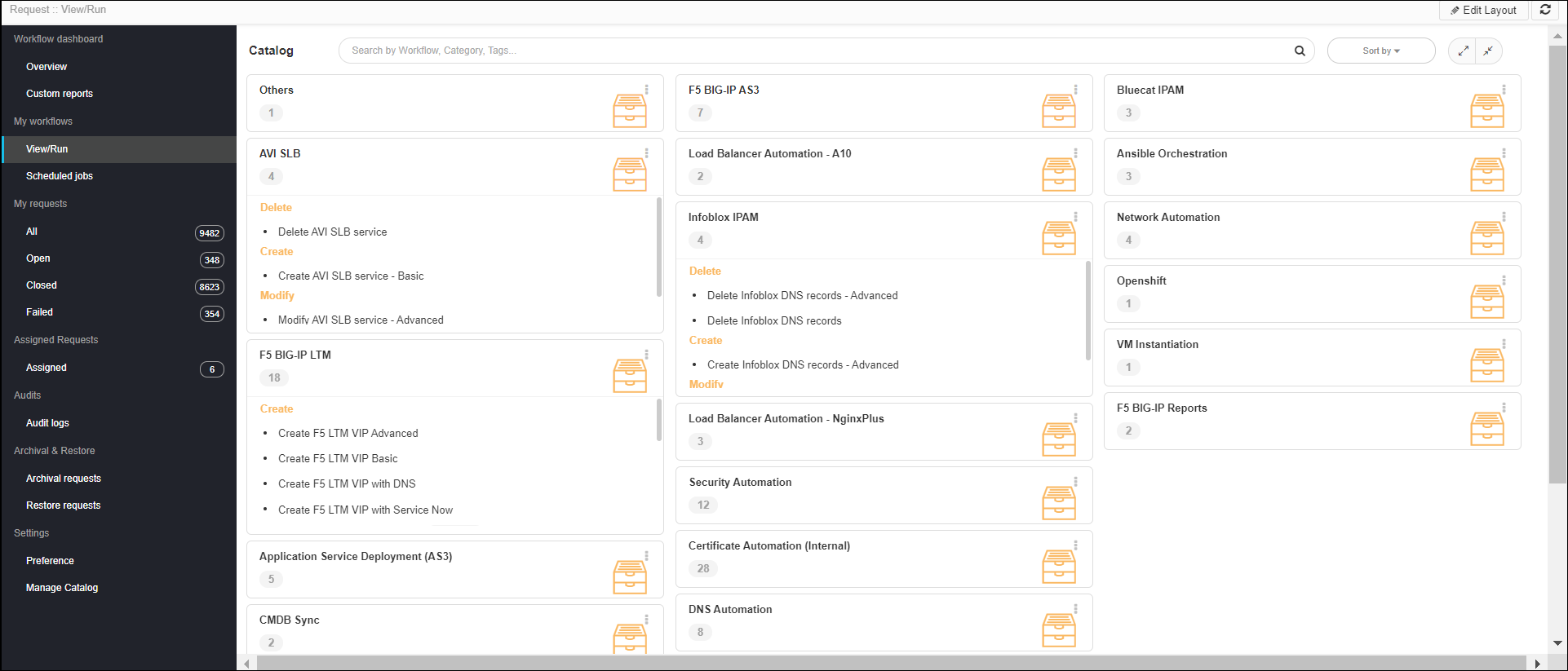

    The Workflow Catalog page appears.

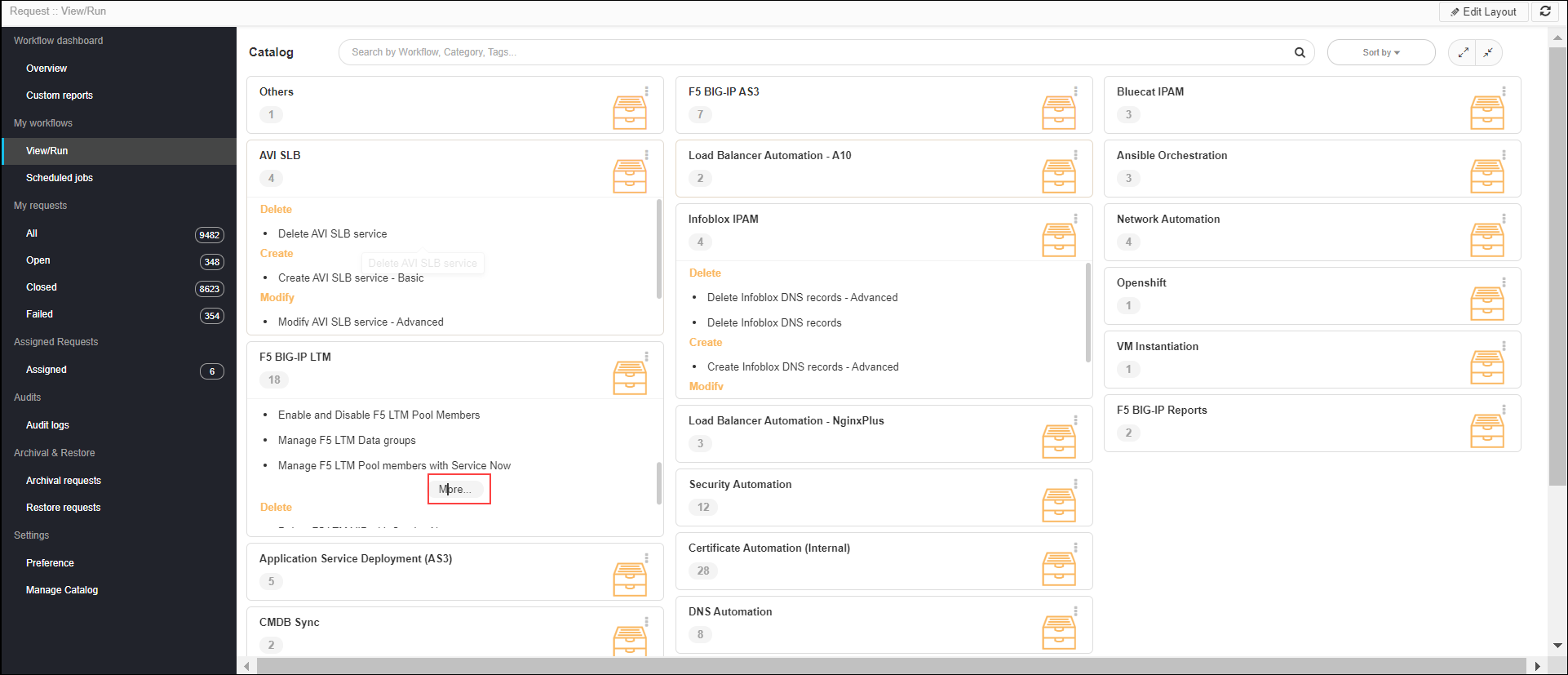

  2. In the Workflow Catalog page, click More under the category F5 BiG-IP LTM > Modify.

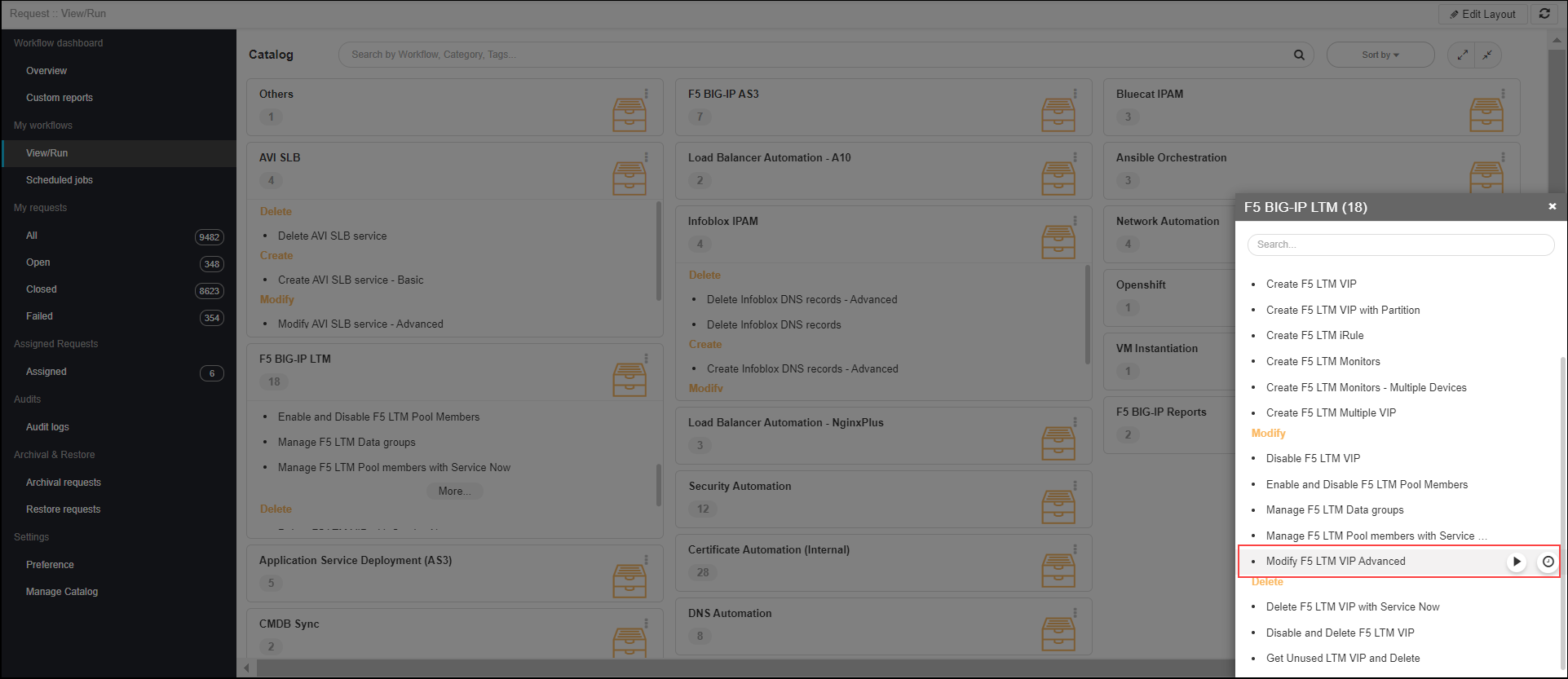

  3. Hover over the Manage F5 LTM VIP Advanced workflow.
    The Run and Schedule buttons are shown.

  4. Click the Run button.

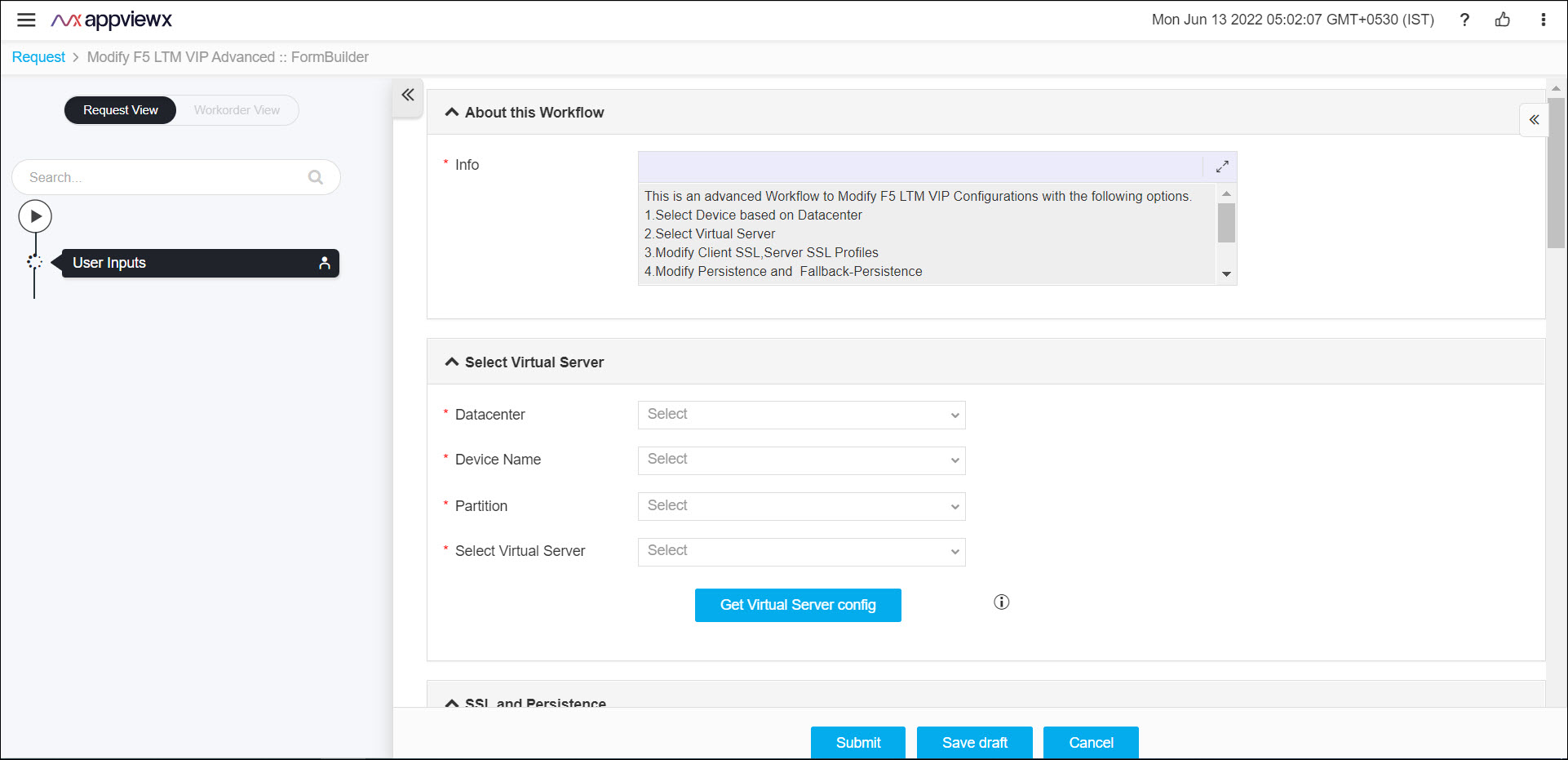

    The Form Input page opens:

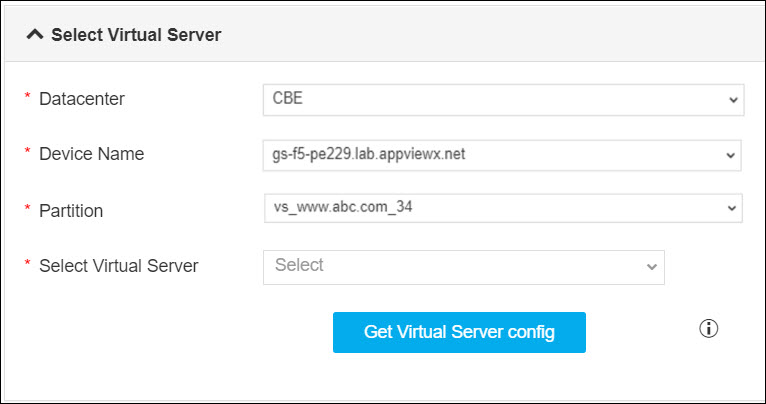

  5. Select the Datacenter, Device Name, and Virtual Server from the drop-down list, and then click the Get Virtual Server config button.

    The device details, such as SSL and Persistence, Rule, etc. are loaded in the form input page.
  6. Update the SSL and Persistence, Rule, Protocol, Snat Pool, Mirror and Source-Port, Pool and Monitor, and/or Pool Members sections as required.
  7. Click the Submit button.
    The Confirmation popup opens.
    Note:
    • If you want to save this form to edit it later, click the Save Draft button, and then click Ok in the Confirmation popup window. The form will be saved as Open request under Request > My Request.
    • If you want to cancel this form, click the Cancel button.
  8. Click Ok to submit the form.
    The pre-validation starts automatically and reaches the Review stage.

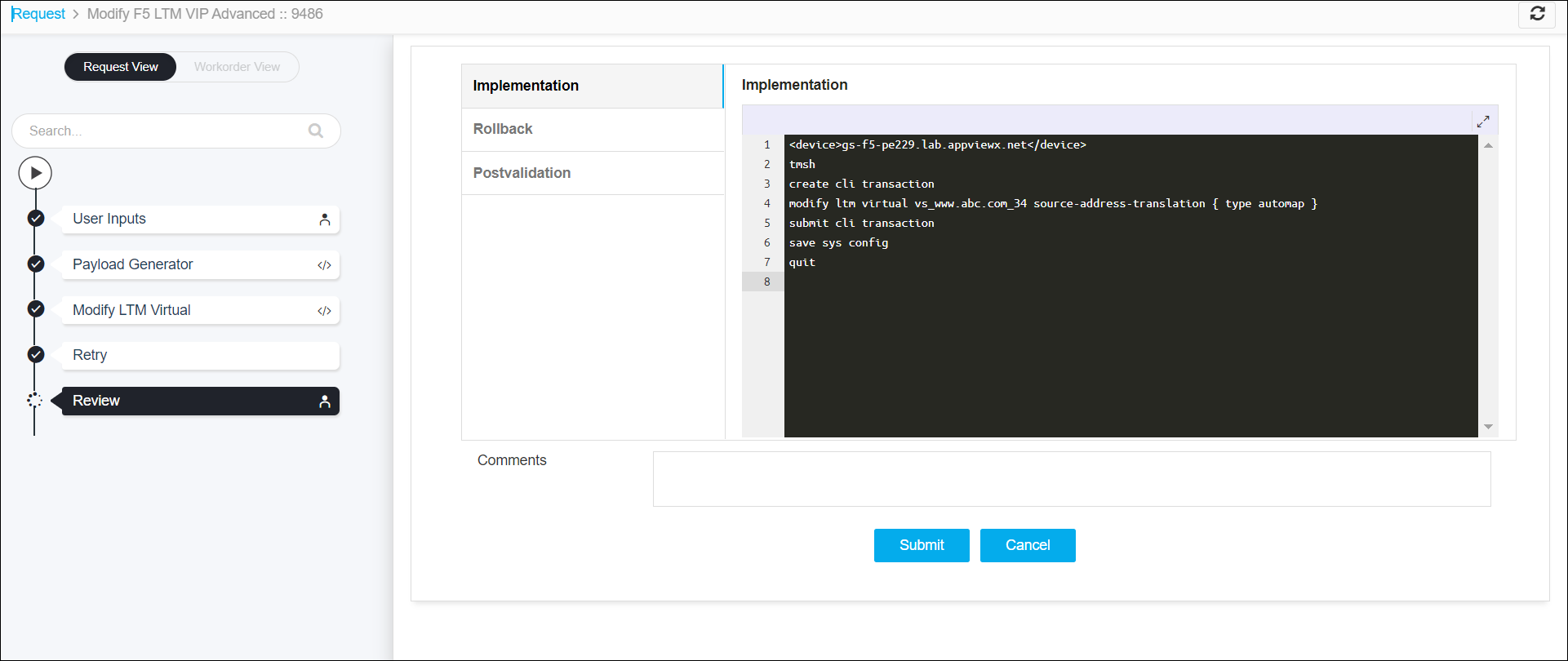

  9. Review the input data under the implementation, rollback, and postvalidation tabs:

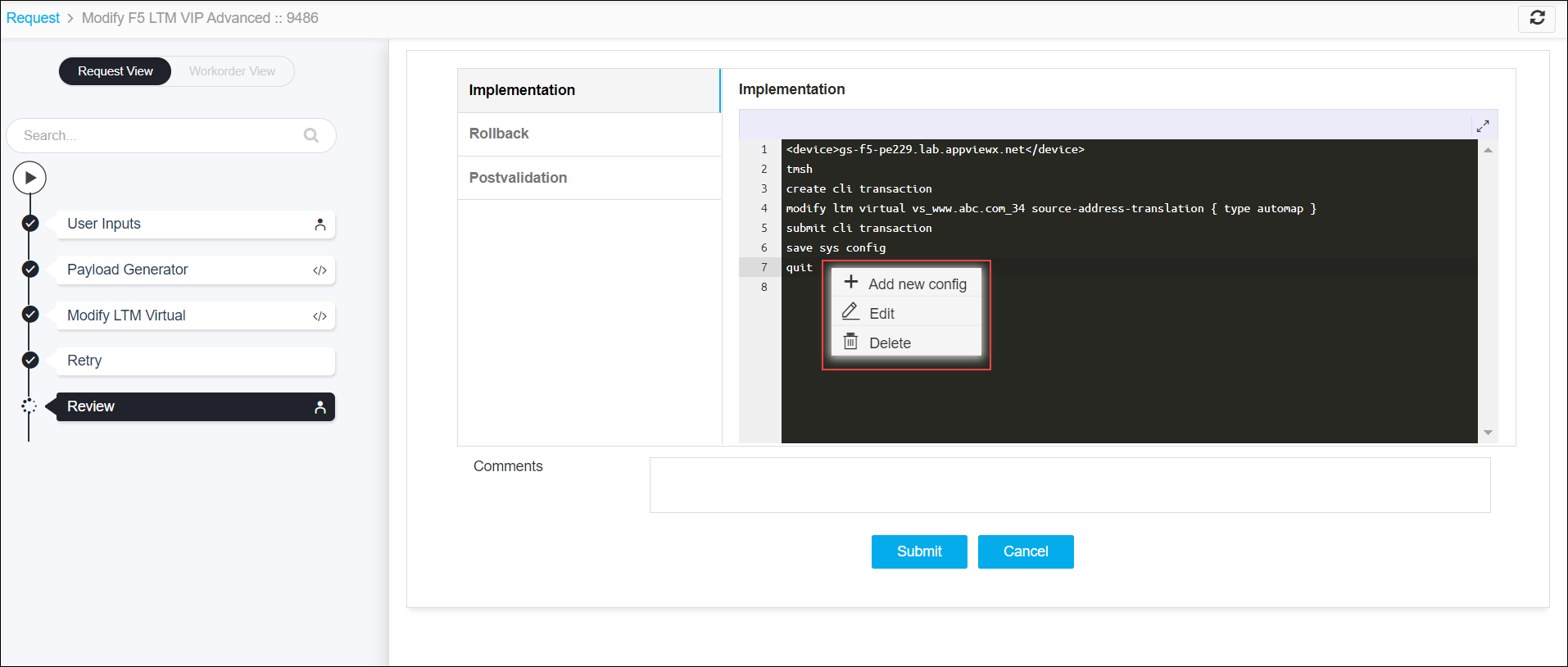

  10. (Optional) If you need to change any data at this stage, you can update by clicking the right side of the mouse on the data.
  11. After the review, click the Submit button.
    Note: To stop running the workflow creation, click Cancel.
  12. Click Ok to continue the workflow creation.
    It takes a while to complete the post-validation.

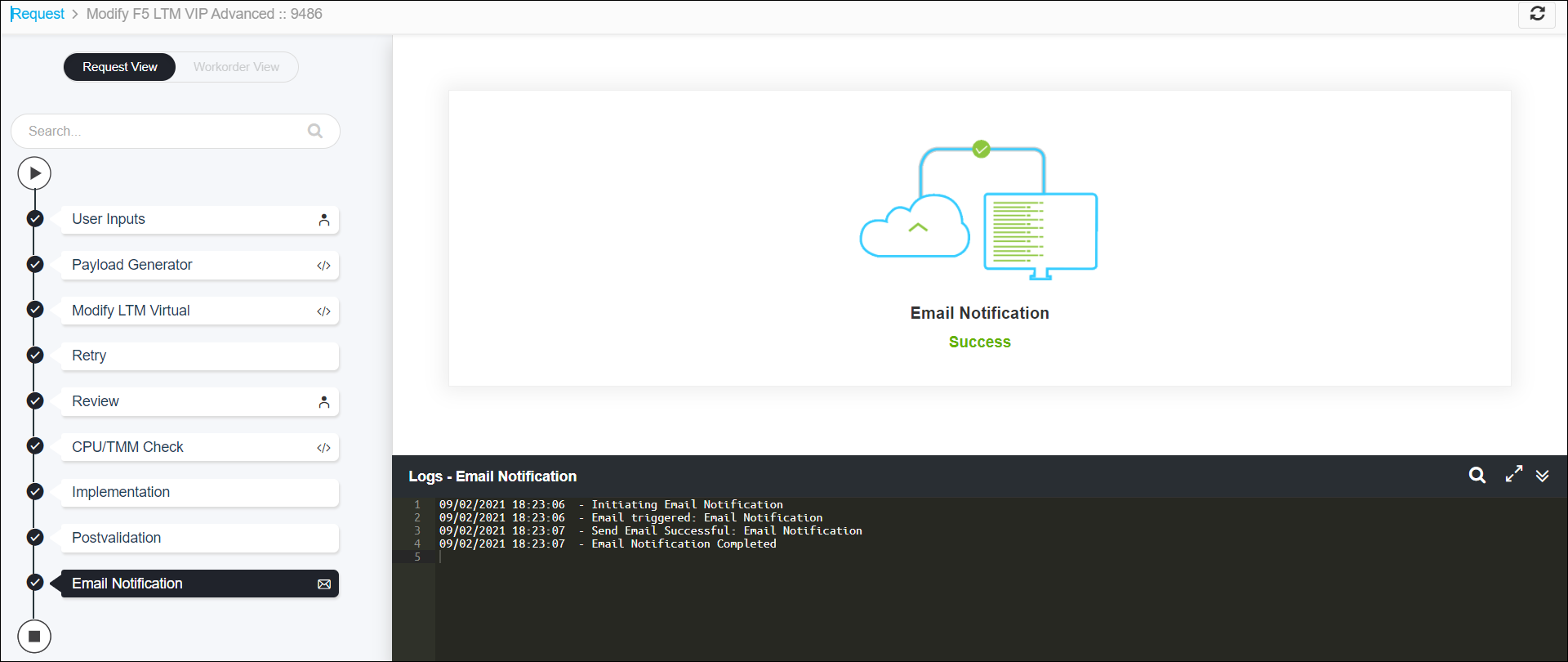

  13. After the successful post-validation, the workflow is created and the email triggered to the configured email IDs.
    Note: The validation stages are shown in the left side of the screen. To view any validation stage, click on the respective stage.
