Export Cloud Details

To export the details of one or more firewalls,

  1. Log in to AppViewX application with valid credentials.
  2. Click the menu button located in the upper left corner of the screen.

    The left navigation pane appears.

  3. Click Inventory > Device.

    By default, the ADC tab opens.

  4. Click the Cloud tab.
  5. If the cloud details you want to export are not listed on the screen, run a search to locate it.
  6. Click the checkbox beside the cloud name.
  7. Click the Export icon in the command bar at the upper right of the screen.

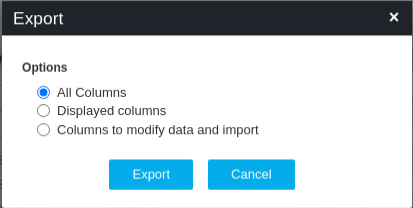

  8. On the Export pop-up screen that appears, select the type of information you want to export:
    1. All Columns - Select this option if you want to export all information about the firewall.
    2. Displayed columns - Select this option if you want to export only the information that is visible on the firewall screen.
    3. Columns to modify data and import - Select this option if you are exporting firewall details to make modifications and then re-import the data into the firewall Inventory.
  9. On the screen that opens, select the location where you want the cloud details file to go, then click Save.
  10. Cloud details will be downloaded as an Excel <.xls> file.
