InCommon CA

Prerequisites

The prerequisites for configuring InCommon CA account in AppViewX are as follows:
  • InCommon Certificate Manager credentials having necessary access for enrolling the certificates.
  • AppViewX server should either have internet access or have a proxy configured in AppViewX general settings. Check Proxy Setup for the steps to configure the proxy. https://adminguide.appviewx.com/proxy-4
  • Username and Password as set up in the Certificate Manager tool.
  • An OrgID as provided by InCommon Certificate Manager.
  • The login URL and URI.

Configuring InCommon CA

  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, select InCommon.

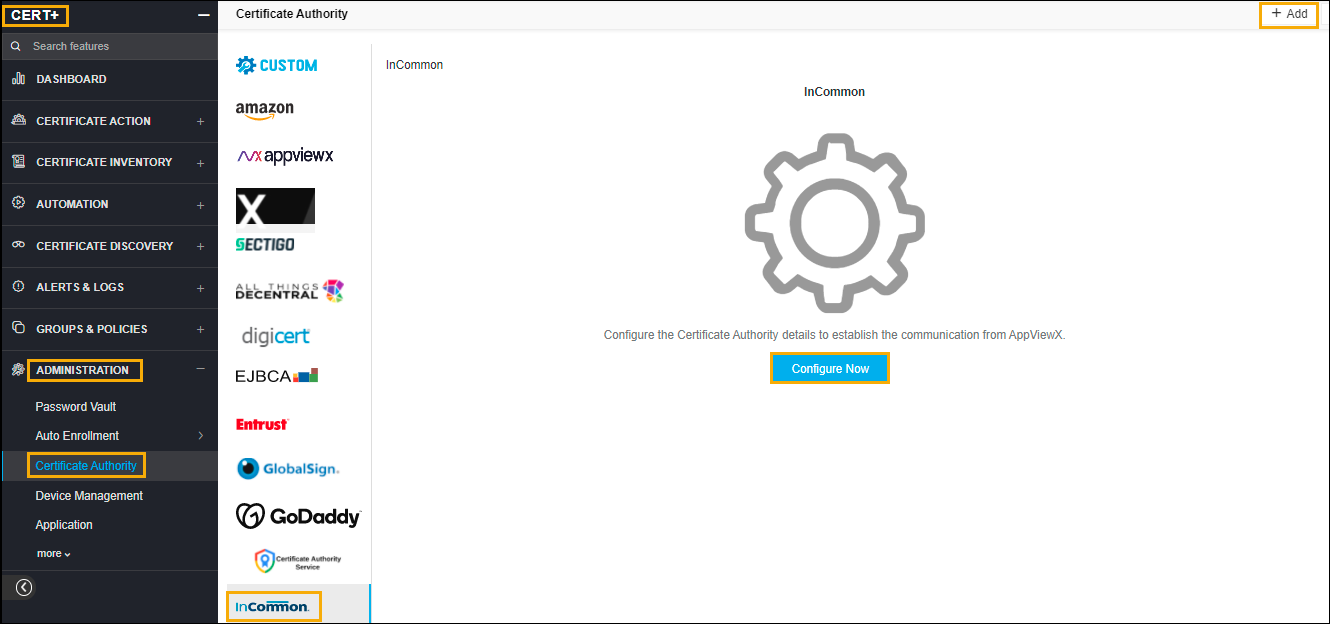

    The InCommon home page is displayed.
  3. Click the Configure Now button or +Add icon from the middle or top-right of the page respectively.

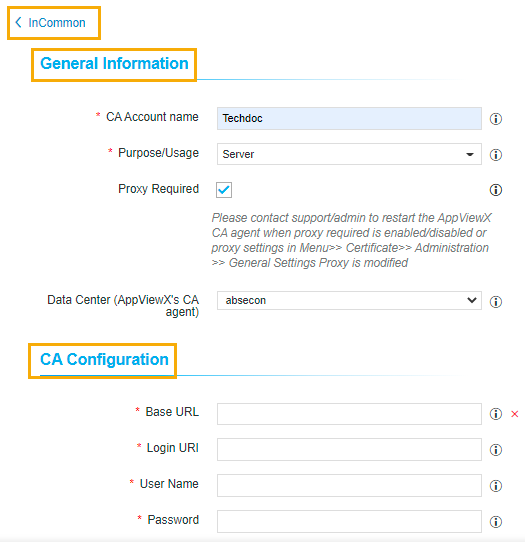

    The InCommon configuration page is displayed.
  4. Update the following details in the General Information section as described in the table:
    Table 1. General Information - Field Description Table
    Fields Description
    *CA Account name A unique name to identify the CA setting.
    Note: No special characters other than ‘.’, ‘-’,’_’ are allowed. The name must not start with special characters.
    *Purpose/ Usage Certificate Type for which CLM actions will be enabled. Eg. Server, Client.
    Proxy Required Enable this field if the CA communication needs to happen via Proxy. The proxy details configured in general settings will be used for communication.
    Data Center (AppViewX's CA agent) Select the data center through which the CA communication needs to happen.
    *: Mandatory fields
  5. Update the following details in the CA Configuration section as described in the table. These fields are necessary for invoking the InCommon CA APIs for Certificate Management.
    Table 2. CA Configuration - Field Description Table
    Fields Description

    *Base URL

    		This URL will contain just the hostname of the InCommon CA instance. Eg -https://cert-manager.com/customer/<<customer_uri>>/ssl- here base URL is https://cert-manager.com.
    Note: No special characters other than ‘.’, ‘-’,’_’ are allowed. The name must not start with special characters.
    *Login URL URI specific to the InCommon CA Customer Account. Eg https://cert-manager.com/customer/<<customer_uri>>/ssl- here URI is customer_uri.
    *User Name User name for the account created with InCommon CA.
    *Password Password for the account created with InCommon CA.

    *Organization ID

    		InCommon supports organization hierarchy. Id of the Organization Unit/Department in which Certificates need to be managed has to be specified here. CLM actions done using this CA account will be specific to this particular organization's id/department.
    *: Mandatory fields
    Note: If the certificates from multiple organization's units/departments need to be managed, then a separate CA has to be configured for each organization unit/department in the Incommon CA setting page.
  6. Select Fetch Certificate Types
    The Certificate types available for the CA account will be fetched from the Certificate Authority.
  7. Click Save.

Validating InCommon CA

Once the InCommon settings are added validation needs to be done to check whether the connection between AppViewX and InCommon is properly configured.
  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, select InCommon.
    The InCommon home page is displayed.
  3. In the Status column of the grid with the listed accounts, click Check to validate the CA setting that has been created.
    The CA communication will be validated and the Connection Status will be shown as either Success or Failure.
