Trustwave CA

Prerequisites

The prerequisites for configuring Trustwave CA account in AppViewX are as follows:
  • Trustwave API URL. Ex: https://testapi.ssl.trustwave.com/3.0/
  • Reachability from AppViewX southbound to Trustwave API URL via proxy or direct internet connection
  • Valid credentials for communicating to Trustwave CA via API
  • Reseller id
  • Account details provided inTrustwave account such as Organization Name, Email address, Organization Address, City, State, Zip code, Country, Phone number
  • AppViewX server should either have internet access or have a proxy configured in AppViewX general settings.

Configuring Trustwave CA

  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, select Trustwave.
    The Trustwave home page is displayed.
  3. Click the Configure Now button or +Add icon from the middle or top-right of the page respectively.
    The Trustwave CA details page is displayed.

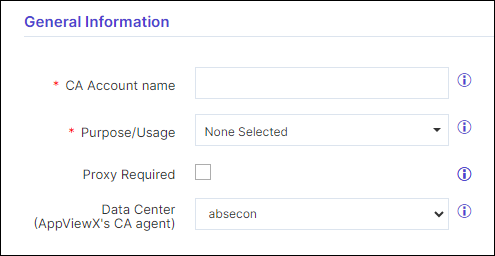

  4. Configure the General Information details as follows:
    Table 1. General Information - Field Description Table
    Fields Description
    *CA Account name Provide an account name for the CA setting.
    *Purpose/Usage Choose the certificate categories that will be managed by this setting. Possible certificate categories could be:
    1. Server
    2. Code Signing
    Proxy Required Enable this field if the CA communication needs to happen via Proxy.
    Data Center (AppViewX's CA agent Choose the appropriate Data Center.
    *: Mandatory fields

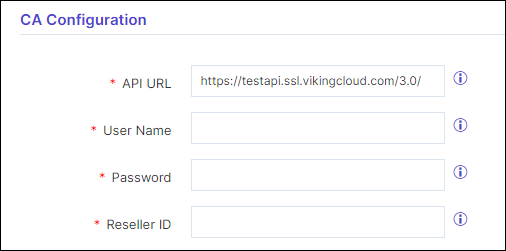

  5. Configure the CA Configuration with information you want to configure:
    Table 2. CA Configuration - Field Description Table
    Fields Description
    *API URL The Trustwave API URL to communicate. E.g.: https://testapi.ssl.trustwave.com/3.0/
    *Username The username for API authentication.
    *Password The password for API authentication.
    *Reseller ID The Reseller Id for the account.
    *: Mandatory fields

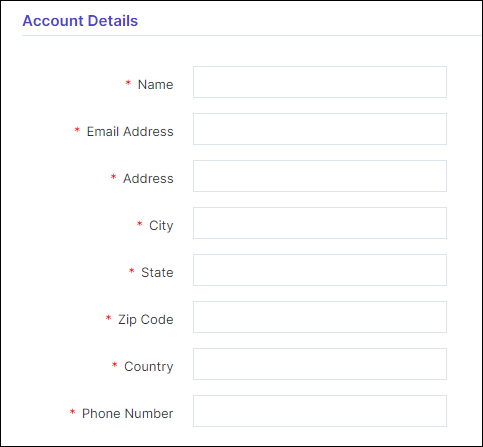

  6. Configure the Account Details with information you want to configure:
    Table 3. CA Configuration - Field Description Table
    Fields Description
    *Name The Organization name given in the Trustwave account.
    *Email Address The Administrator or organization email address given in the Trustwave account.
    *Address The Organization Address given in the Trustwave account.
    *City The city name given in the Trustwave account.
    *State The state name given in the Trustwave account.
    *Zip code The zip code given in the Trustwave account.
    *Country The country code given in the Trustwave account. E.g.: US.
    *Phone number The phone number given in the Trustwave account.
    *: Mandatory fields
  7. Click Save.

Validating Trustwave

Once the Trustwave settings are added validation needs to be done to check whether the connection between AppViewX and Trustwave is properly configured.
  1. Go to (Menu) > SIGN+ > ADMINISTRATION > Certificate Authority.
  2. From the displayed CA, select Trustwave.
  3. In the Status column of the grid with the listed accounts, click Check to validate the CA setting that is created.
    The CA communication will be validated and the Connection Status will be shown as either Success or Failure.
