Configuring the Rich Text Editor - Properties

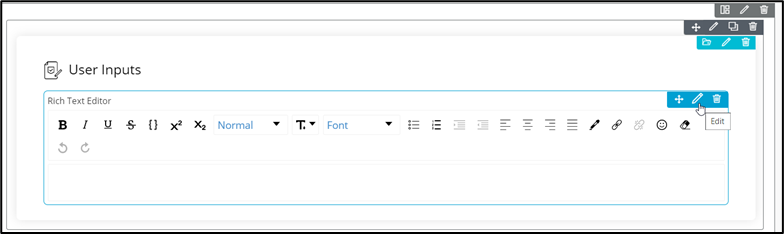

  1. To configure the Rich Text Editor, hover your mouse over the top right corner of the widget and click .

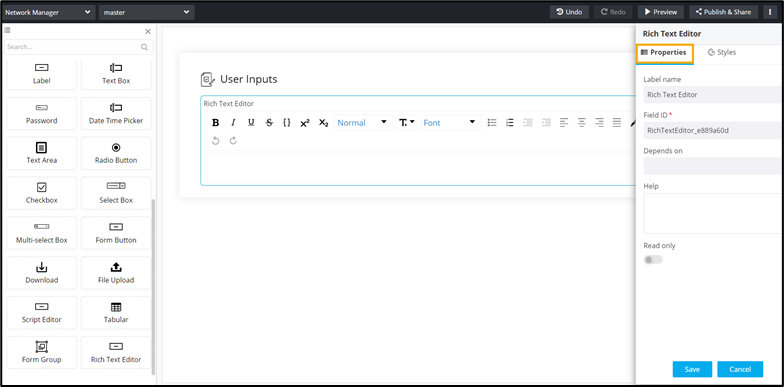

    The Rich Text Editor pop-up window opens with the Properties tab open by default.
  2. In the Rich Text Editor window, under Properties, enter or select the required field information.
    The following table describes the fields under the Properties tab:
    Field Description
    Label name Enter a valid Label name for the form field. For example, Select Date and Time.
    Field ID* Allows you to assign a unique Field ID to refer to the field name.
    • Allowed characters: ‘-‘ and ‘_’
    • Character Length: Min (1), Max (50)
    Depends on Allows you to define dependencies between form fields based on ‘Field ID’ and ‘Values’.
    • Operators used: ‘&’ and ‘|’
    • Max character: 550
    • Format: [Field Id1: value1 & Field Id2: value1 & Field Id3: value3], [Field Id1: value1 | Field Id2: value1]
    Help Allows you to add Help text/tooltip for the field.
    Read only Allows you to define this field as Read Only or otherwise. If marked as Read Only, a red crossed circle is displayed when you hover your mouse over the read only field and does not allow you to enter any information.
    All Asterisk (*) marked fields are mandatory.
  3. Click Save.
