Designing a new Form

You can also design a form for your page using the different form field palettes available in the Design module under the Build section. Add individual form fields as required to the canvas and build your own form from scratch.
The following form fields are available:
  • Date Time Picker
  • Downlaod
  • File Upload
  • Text Area
  • Text Box
  • Label
  • Password
  • Ace Editor
  • Form Button
  • Checkbox
  • Multi-select Box
  • Select Box
  • Radio Button
  • Form Group
  • Tabular

To access these form fields:

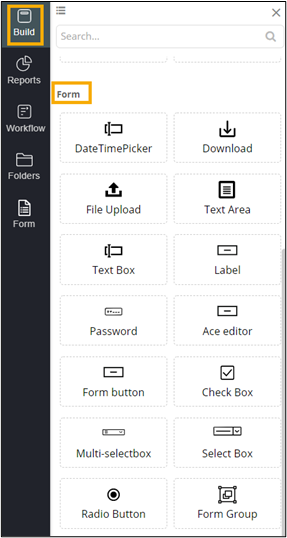

  1. From the navigation menu on the left, click Build.
    A list of form components are displayed under Form.

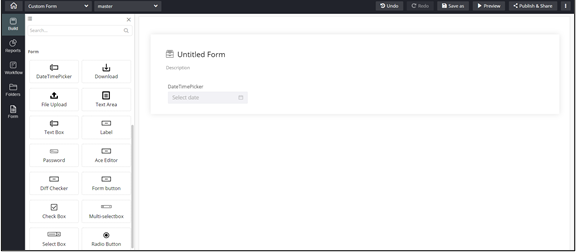

  2. To add a form field to the form, drag and drop the form field to the canvas.
    A form is created with the selected form field.

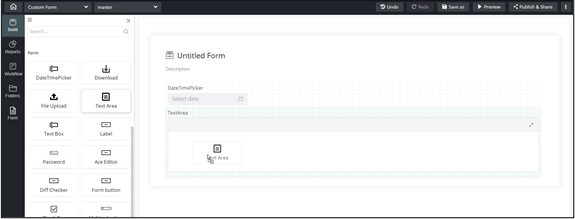

  3. To add another form field to the same form, select the required form field and drop it in the form area.

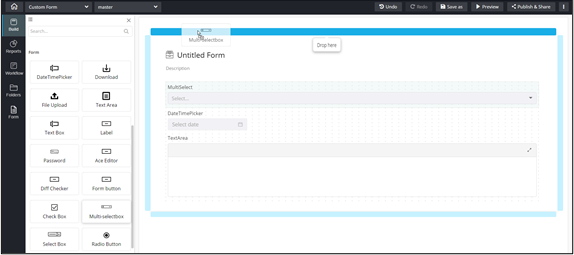

  4. To add a form field in a new form, drag and drop the required form field widget into any blue highlighted space in the canvas.

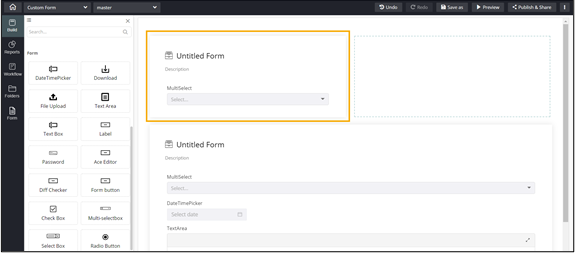

    A new form with the selected form field is created.

    Note: For more information on configuring the form properties such as Form name and description, adding hooks, click here.
    Note: For more information on customizing the form features such as border, size, background color and so on, click here.
