Create a Rule or Route

To create a Security Rule, NAT Rule, or Static Route Rule:
  1. Click and select Control Center
  2. Run a search.
  3. On the search results screen that opens, click the Firewall tab.
  4. Select one of the following three filter options from the dropdown list depending on what you want to create:
    • Security
    • NAT
    • Route
  5. Click in the Command bar.
    The Basic Input Form opens with the Request View tab selected by default.
  6. Fill in all the form fields designated with a beside their names.
  7. Click Submit to trigger the workflow.
    A new Request ID is created. To view the request details, refer to theRequest Taskssection of this guide. The create form corresponding to the Vendor you selected in Basic Input Form and the filter option selected in step 5. will be displayed.
  8. At a minimum, fill in all the form fields designated with a beside their names.
  9. Click Submit.

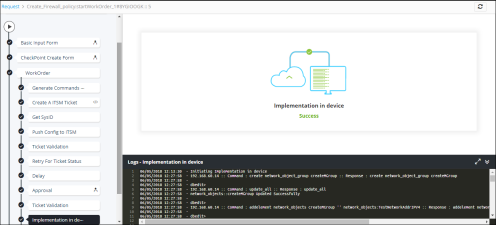

    The work order tasks or phases of the corresponding request are listed in a tree-view. You can click each task to view its details. Wherever applicable, all the logs related to the selected task are displayed in the Logs pane at the bottom of the screen. After you submit the request form, the configuration changes are reviewed and approved at AppViewX.
  10. Enter any comments you have related to the implementation and then, click Implement.
    The configuration commands are implemented, resulting in the creation of a rule or route in the device.
