Modify a Rule or Route

To modify a Security Rule, NAT Rule, or Static Route Rule:
  1. Click and select Control Center
  2. Run a search.
  3. On the search results screen that opens, click the Firewall tab.
  4. Select one of the following three filter options from the dropdown list depending on what you want to modify:
    • Security
    • NAT
    • Route
    The screen then refreshes and displays the results based on the filter you selected.
  5. Right-click the rule name and select Modify from the dropdown list that appears.
  6. Enter a search key for the rule you want to modify and then, click Submit.
    This will trigger the workflow and a new Request ID is created. To view the request details, refer to the Request Taskssection of this guide. The information regarding the rule you trying to modify is fetched using API and the modify form for the corresponding rule will be displayed.
  7. Make whatever changes you want to the rule by filling in the form fields designated with beside their names.
  8. Click Submit.

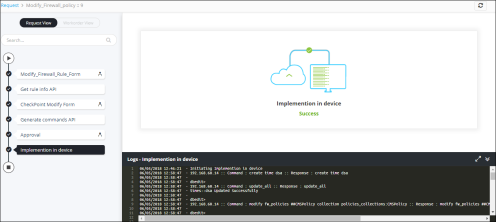

    The work order tasks or phases of the corresponding request are listed in a tree-view. You can click each task to view its details. Wherever applicable, all the logs related to the selected task are displayed in the Logs pane at the bottom of the screen. After you submit the request form, the configuration changes are reviewed and approved at AppViewX.
  9. Enter any comments you have related to the implementation and then, click Implement.
    The configuration commands are implemented, resulting in modifying the rule or route in the device.
