Download a Certificate

Note: This functionality is available only for server, client, device, intermediate, and root certificates.

You can download a certificate from the Certificate page and the topology page within AppViewX.

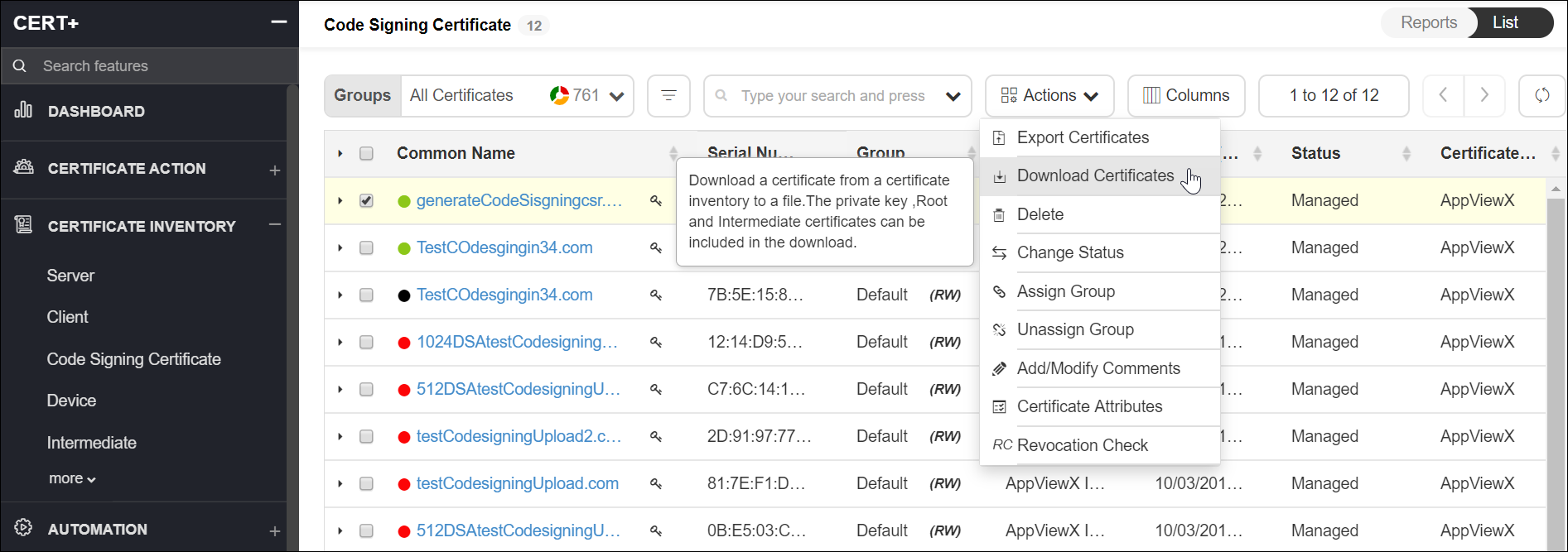

Download from the Certificate Page

To download a certificate as a .PEM file, that is designed to be safe for inclusion in ASCII or rich-text documents such as emails:
  1. Click and select CERT+ > Certificate Inventory.
  2. Under Certificate Inventory, click Server, Client, Device , or Code Signing tab depending on the type of certificate you want to download.
  3. On the Certificate Dashboard, click List on the top-right.
  4. On the certificate list view, select the certificate(s) you want to download.
  5. Click Actions and select the Download Certificates option from the dropdown.
  6. On the Download Certificate pop up window, select Certificates Only or Certificates and Keys.
    Note: You can also enable/disable D ownload Truststore Certificates option along with the end certificates.
    Note: If you have permission to view the restricted content mentioned in Step 6, the certificate details are then downloaded inside a zip file. If you do not have the necessary permissions, the system creates and downloads an empty zip file to the destination you specify.
  7. On selecting Certificates and Keys option, the Secret Passphrase field appears. Enter a passphrase to encrypt the contents into a ZIP file.
  8. Click Download.
  9. To view details of the certificate, unzip the file and open the security certificate file. Click Details.

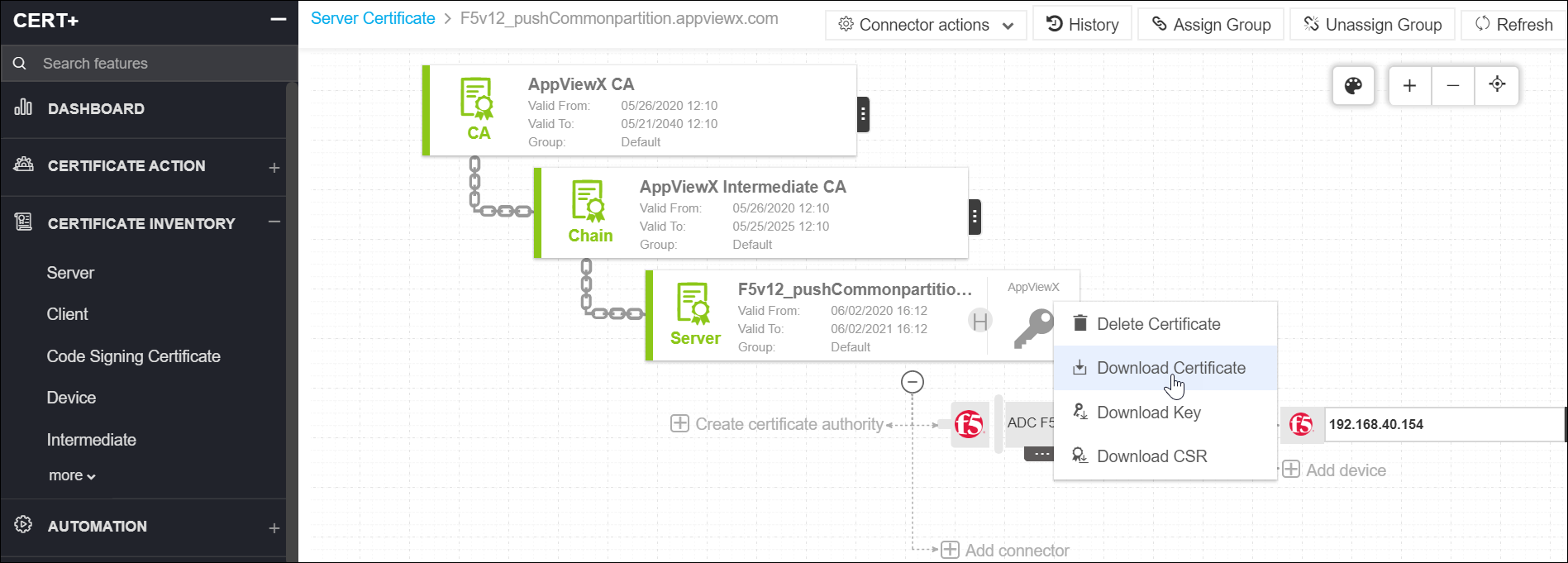

Download from the Certificate Topology

  1. Click and select CERT+ > Certificate Inventory.
  2. Under Certificate Inventory, click Server, Client, Device , or Code Signing tab depending on the type of certificate you want to download.
  3. On the certificate list view, click the Common Name of the certificate to view the topology.
  4. Hover over on the certificate and click Download Certificate.
  5. On the Download Certificate pop up window, select the file format.
    Note: For PEM and DER certificate types, you can enable/disable Download Truststore Certificates option along with end certificates.
  6. Click Yes.
